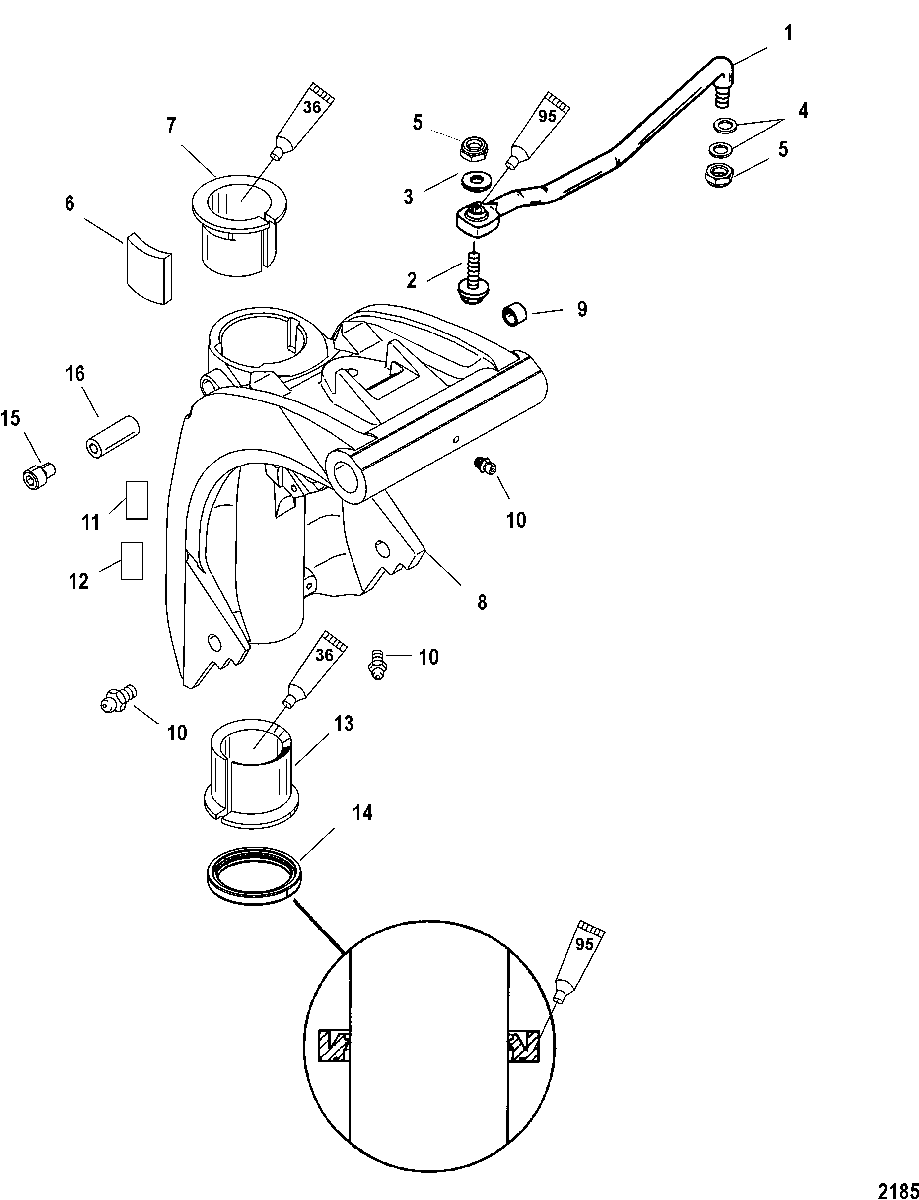

Swivel Bracket для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999

№

Артикул

Название
1

19608A14 ATTACHING KIT, Engine Steering
(NON HANDLE)

ATTACHING KIT, Engine Steering
(NON HANDLE)

11 410 ₽
2

10-823919 SCREW, (.375-24 x 1.500)
(NON HANDLE)

SCREW, (.375-24 x 1.500)
(NON HANDLE)

350 ₽
3

12-8M0109680 WASHER, (.390 x .546 x .12)
(NON HANDLE)

WASHER, (.390 x .546 x .12)
(NON HANDLE)

0 ₽
4

12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(NON HANDLE)

WASHER, (.390 x .625 x .062) Stainless Steel
(NON HANDLE)

50 ₽
5

11-8M0042636 NUT, (.375-24) Stainless Steel
(NON HANDLE)

NUT, (.375-24) Stainless Steel
(NON HANDLE)

150 ₽
6

822397 PUCK
(NON HANDLE)

PUCK
(NON HANDLE)

820 ₽
7

23-8217711 BUSHING

BUSHING

3 670 ₽
8

1401-850066T01 SWIVEL BRACKET

SWIVEL BRACKET

102 700 ₽
9

23-19606 BEARING

BEARING

500 ₽
10

22-74036 FITTING, Grease
(Qty. of 3 Required on Handle Versions)

FITTING, Grease
(Qty. of 3 Required on Handle Versions)

340 ₽
11

37-8237011 DECAL, Co-Pilot

DECAL, Co-Pilot

170 ₽
12

NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate

NOT SOLD SEPARATE, Decal-Serial Overlaminate

0 ₽
13

23-821777 BUSHING (LOWER)

BUSHING (LOWER)

1 660 ₽
14

26-822404 SEAL

SEAL

720 ₽
15

10-4008910 SCREW, (M8 x 10) Stainless Steel
(HANDLE)

SCREW, (M8 x 10) Stainless Steel
(HANDLE)

330 ₽
15

10-40011149 SCREW, (M8 x 25) Stainless Steel
(NON HANDLE)

SCREW, (M8 x 25) Stainless Steel
(NON HANDLE)

140 ₽
16

8282451 SEAL
(NON HANDLE)

SEAL
(NON HANDLE)

120 ₽
