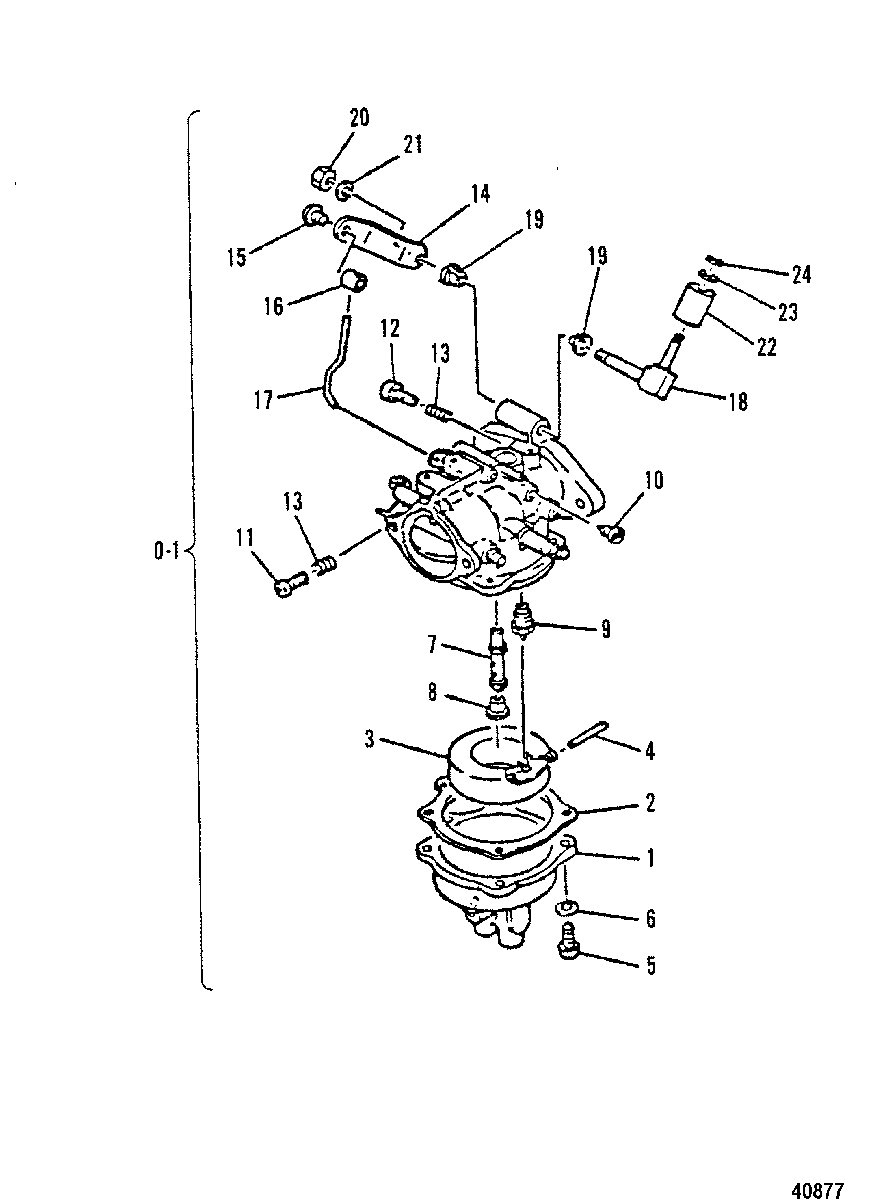

CARBURETOR для Mariner - 30A 689-000366 THRU 022058
-
№АртикулНазвание
-
0-11383-7841M CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
184764M FLOAT BOWLFLOAT BOWL
-
227-80590M GASKET, FLOAT BOWLGASKET, FLOAT BOWL
-
380591M FLOATFLOAT
-
417-11794M NUTNUT
-
510-82515M SCREWSCREW
-
613-82206M LOCKWASHERLOCKWASHER
-
784766M NOZZLENOZZLE
-
884767M JET, MAIN (#135)JET, MAIN (#135)
-
980593M VALVE/SEAT KIT, InletVALVE/SEAT KIT, Inlet
-
1095550M JET, PILOT (#54)
SN# M-018821/ML-318387/E-104276/EL-409416 & UpJET, PILOT (#54)
SN# M-018821/ML-318387/E-104276/EL-409416 & Up -
1095550M JET, PILOT (#54)
SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415JET, PILOT (#54)
SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415 -
1080578M JET, PILOT (#60)
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowJET, PILOT (#60)
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
1110-83509M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1210-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1324-814460M SPRINGSPRING
-
1484768M LEVER, Throttle RodLEVER, Throttle Rod
-
1510-80091M SCREWSCREW
-
1684770M RETAINER, THROTTLE RODRETAINER, THROTTLE ROD
-
1784771M ROD, THROTTLEROD, THROTTLE
-
18811037M ARM, ThrottleARM, Throttle
-
1923-81941M BUSHINGBUSHING
-
2011-83763M NUTNUT
-
2113-82186M WASHERWASHER
-
2223-84454M BUSHING, THROTTLE ARMBUSHING, THROTTLE ARM
-
2312-82209M WASHERWASHER
-
2453-82328M RING, SnapRING, Snap
-
-811038M REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-96658M GASKET SET, POWERHEAD
SN# M-010646/ML-311476/E-102356/EL-405456 & UpGASKET SET, POWERHEAD
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
-27-84744M GASKET SET, POWERHEAD
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowGASKET SET, POWERHEAD
SN# M-010645/ML-311475/E-102355/EL-405455 & Below
