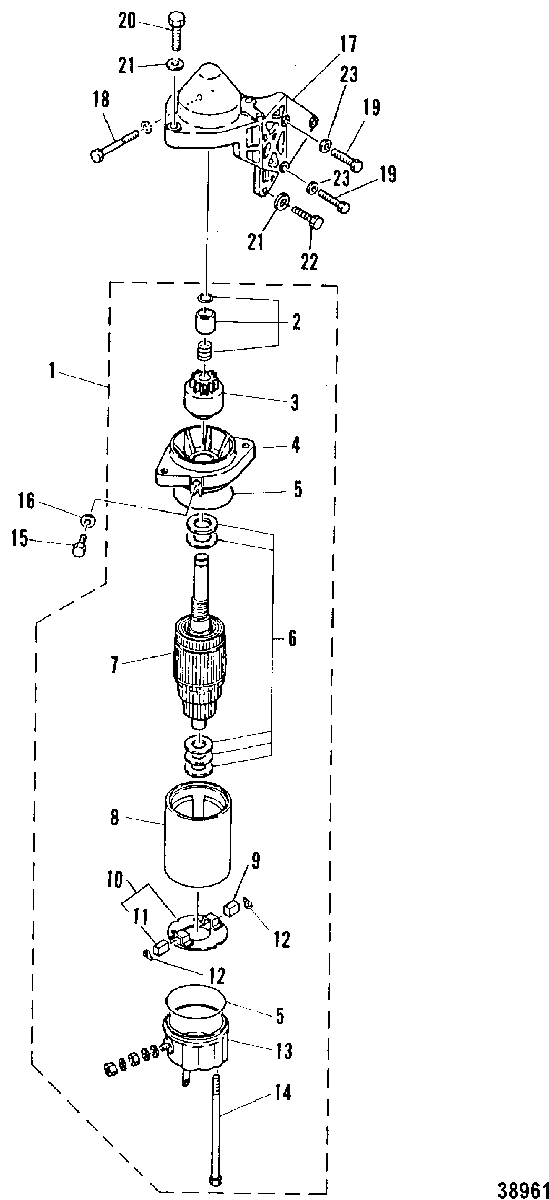

STARTER MOTOR(E-101516/EL-404001 and Up) для Mariner - 30A 689-000366 THRU 022058
-
№АртикулНазвание
-
150-97693M STARTER MOTOR ASSEMBLY
SN# E-104276/EL-409416 & UpSTARTER MOTOR ASSEMBLY
SN# E-104276/EL-409416 & Up -
150-97693M STARTER MOTOR ASSEMBLY
SN# E-101516/EL-404001 THRU E-104275/EL-409415STARTER MOTOR ASSEMBLY
SN# E-101516/EL-404001 THRU E-104275/EL-409415 -
296360M STOPPER KIT, PinionSTOPPER KIT, Pinion
-
397694T PINIONPINION
-
496362M COVER, FRONTCOVER, FRONT
-
525-96363M O-RINGO-RING
-
612-96364M WASHER KITWASHER KIT
-
796365M ARMATUREARMATURE
-
896365M ARMATUREARMATURE
-
996368M BRUSH, POSITIVEBRUSH, POSITIVE
-
1096367M HOLDER, BrushHOLDER, Brush
-
1196369M BRUSH, NEGATIVEBRUSH, NEGATIVE
-
1224-84927M SPRING, BRUSHSPRING, BRUSH
-
1396370M COVER, REARCOVER, REAR
-
1410-84929M BOLTBOLT
-
1510-82436M BOLT
SN# E-104276/EL-409416 & UpBOLT
SN# E-104276/EL-409416 & Up -
1510-96371M BOLT
SN# E-101516/EL-404001 THRU E-104275/EL-409415BOLT
SN# E-101516/EL-404001 THRU E-104275/EL-409415 -
1612-82217M WASHERWASHER
-
1784930M BRACKET, MOTOR MOUNTING
SN# E-104276/EL-409416 & UpBRACKET, MOTOR MOUNTING
SN# E-104276/EL-409416 & Up -
1792609M BRACKET, MOTOR MOUNTING
SN# E-101516/EL-404001 THRU E-104275/EL-409415BRACKET, MOTOR MOUNTING
SN# E-101516/EL-404001 THRU E-104275/EL-409415 -
1810-84931M BOLT
SN# E-104276/EL-409416 & UpBOLT
SN# E-104276/EL-409416 & Up -
1810-84931M BOLT
SN# E-101516/EL-404001 THRU E-104275/EL-409415BOLT
SN# E-101516/EL-404001 THRU E-104275/EL-409415 -
1910-83285M BOLT
SN# E-104276/EL-409416 & UpBOLT
SN# E-104276/EL-409416 & Up -
1992657M CAP
SN# E-101516/EL-404001 THRU E-104275/EL-409415CAP
SN# E-101516/EL-404001 THRU E-104275/EL-409415 -
2010-82441M BOLT
SN# E-104276/EL-409416 & UpBOLT
SN# E-104276/EL-409416 & Up -
2010-95416M BOLT
SN# E-101516/EL-404001 THRU E-104275/EL-409415BOLT
SN# E-101516/EL-404001 THRU E-104275/EL-409415 -
2112-82217M WASHERWASHER
-
2210-82439M BOLTBOLT
-
2312-82214M WASHER
SN# E-104276/EL-409416 & UpWASHER
SN# E-104276/EL-409416 & Up
