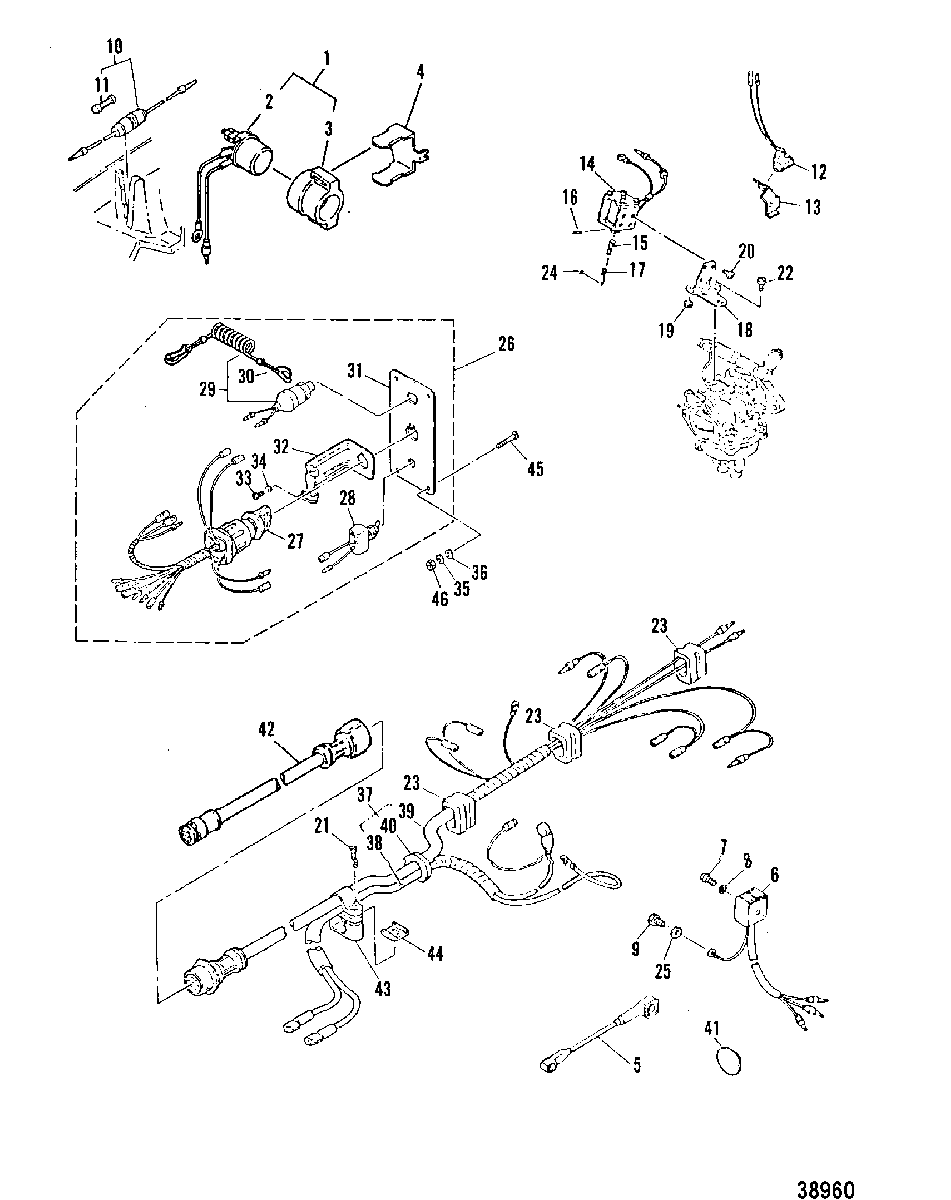

ELECTRIC START COMPONENTS для Mariner - 30A 689-105325 THRU 689-530100 (ML)
-
№АртикулНазвание
-
189-8M0098898 SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
289-8M0098898 SOLENOIDSOLENOID
-
38M0010250 BRACKETBRACKET
-
484935M PLATE, SOLENOID MOUNTINGPLATE, SOLENOID MOUNTING
-
584-84936M WIRE, SOLENOID
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & UpWIRE, SOLENOID
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up -
584-97133M WIRE, SOLENOID
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & BelowWIRE, SOLENOID
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below -
68M0091976 RECTIFIERRECTIFIER
-
710-83108M SCREWSCREW
-
812-82211M WASHERWASHER
-
910-91772M BOLTBOLT
-
1084937M FUSE ASSEMBLYFUSE ASSEMBLY
-
1188-81522M FUSE (12V-20A)FUSE (12V-20A)
-
1287-97684M SWITCH ASSEMBLY, Neutral StartSWITCH ASSEMBLY, Neutral Start
-
1384939M PLATE, SWITCH AND LOCKOUT MOUNTINGPLATE, SWITCH AND LOCKOUT MOUNTING
-
1484940M SOLENOID, ChokeSOLENOID, Choke
-
1584411M HOOK, WIREHOOK, WIRE
-
1617-82145M PIN, ROLLPIN, ROLL
-
1724-81667M WIRE, PULLWIRE, PULL
-
1884941M PLATE, SOLENOID MOUNTINGPLATE, SOLENOID MOUNTING
-
1925-82060M GROMMETGROMMET
-
2010-82512M SCREWSCREW
-
2110-84709M SCREWSCREW
-
2210-14232M SCREWSCREW
-
2325-84876M GROMMETGROMMET
-
2425-82258M O-RINGO-RING
-
2513-82212M LOCKWASHERLOCKWASHER
-
2618975A1 SWITH PANEL ASSEMBLYSWITH PANEL ASSEMBLY
-
2787-8M0078321 KEY SWITCHKEY SWITCH
-
2887-84944M SWITCH, ChokeSWITCH, Choke
-
2987-16710M SWITCH ASSEMBLY, Stop
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & UpSWITCH ASSEMBLY, Stop
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up -
2987-97682M SWITCH ASSEMBLY, Stop
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowSWITCH ASSEMBLY, Stop
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below -
3097756M STOPPERSTOPPER
-
3116711M PANEL
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & UpPANEL
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up -
3142435M PANEL
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowPANEL
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below -
3216712M BRACKET
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & UpBRACKET
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up -
3281537M BRACKET
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowBRACKET
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below -
3310-82500M SCREW
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpSCREW
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
3413-82206M LOCKWASHER, SPRING
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpLOCKWASHER, SPRING
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
3513-82186M WASHERWASHER
-
3612-82211M WASHERWASHER
-
3784-95677M HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
3884-97771M WIRE ASSEMBLY , BATTERYWIRE ASSEMBLY , BATTERY
-
3984-95647M WIRE ASSEMBLY, IGNITIONWIRE ASSEMBLY, IGNITION
-
4025-84950M GROMMETGROMMET
-
4182066M GROMMETGROMMET
-
4284-18968M EXTENSION, WIRE HARNESS (5M)
SN# M-030662, ML-329959, E-108559, EL-418520 & UpEXTENSION, WIRE HARNESS (5M)
SN# M-030662, ML-329959, E-108559, EL-418520 & Up -
4284-84711M EXTENSION, WIRE HARNESS (5M)
SN# M-030661, ML-329958, E-108558, EL-418519 & BelowEXTENSION, WIRE HARNESS (5M)
SN# M-030661, ML-329958, E-108558, EL-418519 & Below -
4354-97772M CLAMPCLAMP
-
4484708M PLATEPLATE
-
4510-84946M SCREW
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & UpSCREW
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up -
4510-80164M SCREW
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowSCREW
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below -
4611-82388M NUT, (M5)
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & UpNUT, (M5)
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up -
4611-82377M NUT
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowNUT
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
