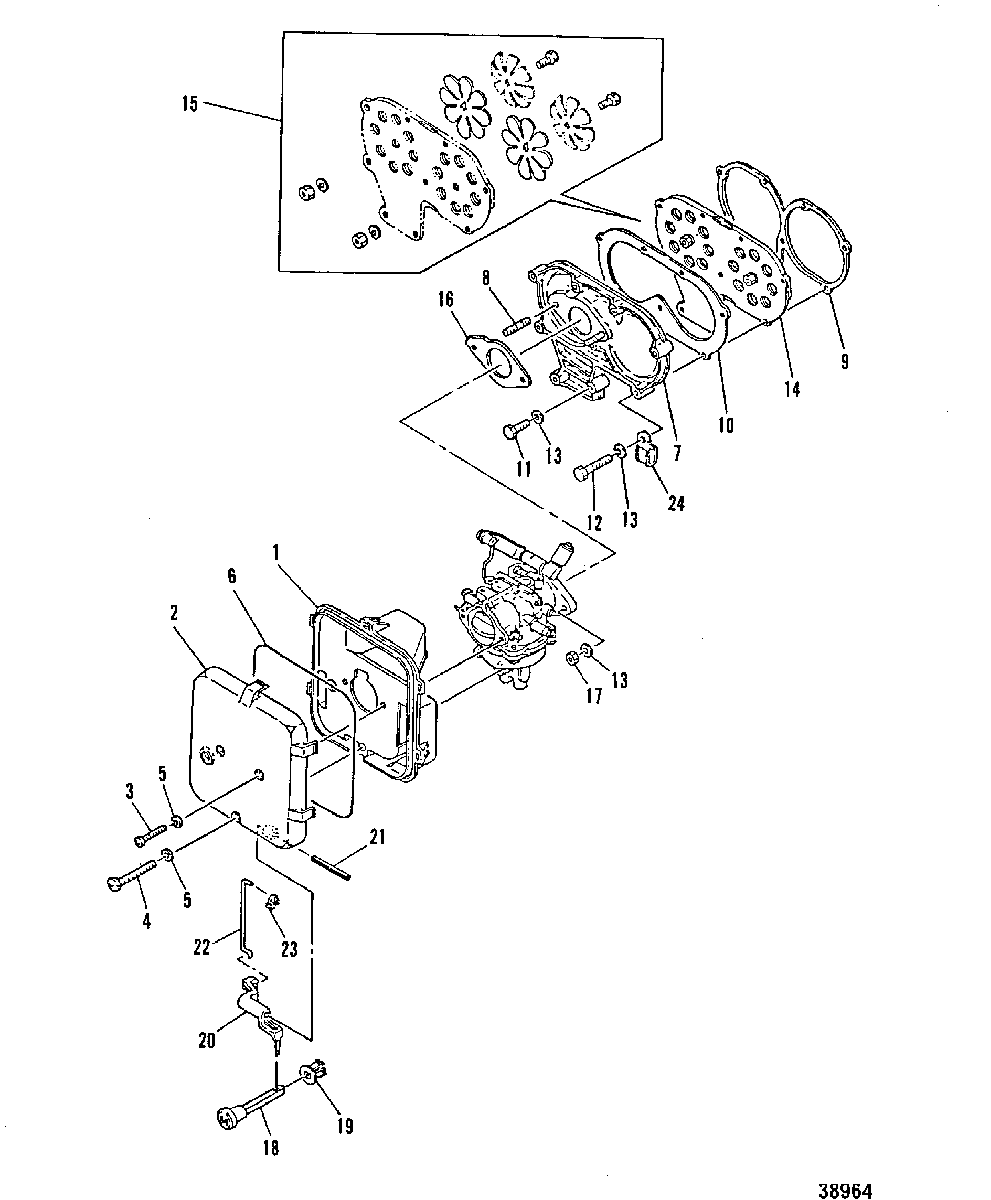

INTAKE MANIFOLD для Mariner - 30A 689-105325 THRU 689-530100 (ML)
-
№АртикулНазвание
-
1811031M COVER, Air Intake, INNERCOVER, Air Intake, INNER
-
295682M COVER, Air Intake, OTERCOVER, Air Intake, OTER
-
310-82522M SCREWSCREW
-
410-17148M SCREW
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpSCREW
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
410-17148M SCREW
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & BelowSCREW
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below -
512-82211M WASHERWASHER
-
625-84757M O-RINGO-RING
-
780570002 MANIFOLDMANIFOLD
-
816-91735M STUDSTUD
-
927-80569M GASKET, REED VALVEGASKET, REED VALVE
-
1027-80571M GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
1110-82405M BOLTBOLT
-
1210-83285M BOLTBOLT
-
1312-82214M WASHERWASHER
-
14811027M REED VALVE ASSEMBLY
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpREED VALVE ASSEMBLY
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
1494650M REED VALVE ASSEMBLY
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & BelowREED VALVE ASSEMBLY
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below -
1534-84759M REED SET (REED STOPS NOT INCLUDED)
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpREED SET (REED STOPS NOT INCLUDED)
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
1534-94639M REED SET (REED STOPS NOT INCLUDED)
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & BelowREED SET (REED STOPS NOT INCLUDED)
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below -
1627-80572 GASKET, CARBURETORGASKET, CARBURETOR
-
1711-82389M NUTNUT
-
1883960M KNOB, CHOKEKNOB, CHOKE
-
1925-84760M GROMMETGROMMET
-
2084761M LEVER, CHOKELEVER, CHOKE
-
2117-84762M PIN, ROLLPIN, ROLL
-
2284763M ROD, CHOKE LINKROD, CHOKE LINK
-
2316333 BRACKET, CHOKE LINK RODBRACKET, CHOKE LINK ROD
-
2454-96348M CLAMP, WIRECLAMP, WIRE
-
-27-96658M GASKET SETGASKET SET
-
-811038M REPAIR KIT, CarburetorREPAIR KIT, Carburetor
