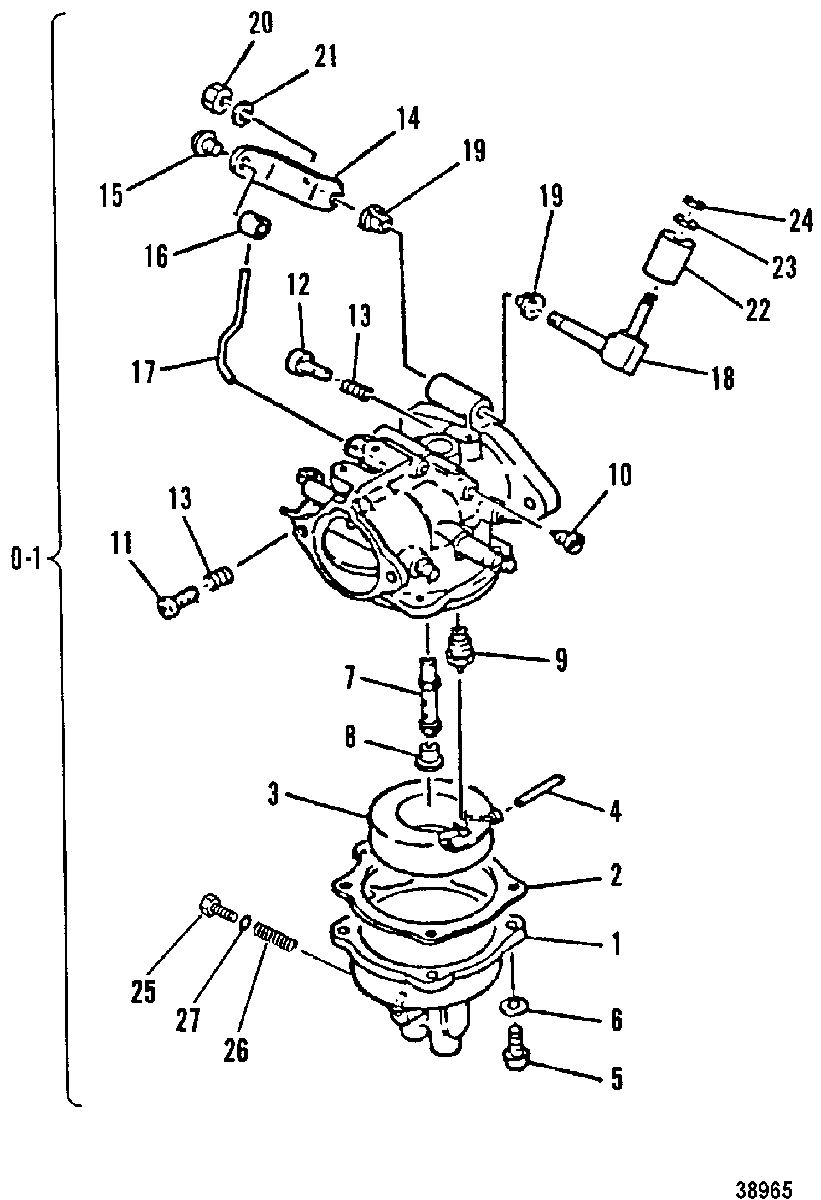

CARBURETOR для Mariner - 30A 689-411947 THRU 689-550100 (EL)

№

Артикул

Название
-

1383-9516T CARBURETOR ASSEMBLY
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

CARBURETOR ASSEMBLY
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

36 850 ₽
-

1383-7841M CARBURETOR ASSEMBLY
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below

CARBURETOR ASSEMBLY
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below

0 ₽
1

14237M FLOAT BOWL
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

FLOAT BOWL
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

0 ₽
1

84764M FLOAT BOWL
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below

FLOAT BOWL
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below

0 ₽
2

27-80590M GASKET, FLOAT BOWL

GASKET, FLOAT BOWL

860 ₽
3

80591M FLOAT

FLOAT

2 250 ₽
4

17-11794M PIN

PIN

300 ₽
5

10-82515M SCREW

SCREW

0 ₽
6

13-82206M LOCKWASHER

LOCKWASHER

70 ₽
7

84766M NOZZLE, MAIN

NOZZLE, MAIN

0 ₽
8

84767M JET, MAIN ( # 135)

JET, MAIN ( # 135)

0 ₽
9

80593M VALVE/SEAT KIT, Inlet

VALVE/SEAT KIT, Inlet

4 260 ₽
10

95550M JET, PILOT ( #54)
SN# M-028478, ML-327903, MUL601456, E-107929, EL-417075, EUL-620256 & Up

JET, PILOT ( #54)
SN# M-028478, ML-327903, MUL601456, E-107929, EL-417075, EUL-620256 & Up

0 ₽
10

95550M JET, PILOT (#54)
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below

JET, PILOT (#54)
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below

0 ₽
10

80578M JET, PILOT (#60)
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below

JET, PILOT (#60)
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below

0 ₽
11

10-83509M SCREW, IDLE SPEED

SCREW, IDLE SPEED

0 ₽
12

10-80573M SCREW, IDLE MIXTURE

SCREW, IDLE MIXTURE

0 ₽
13

24-814460M SPRING

SPRING

0 ₽
14

84768M LEVER, Throttle Rod

LEVER, Throttle Rod

0 ₽
15

10-80091M SCREW

SCREW

0 ₽
16

84770M RETAINER, THROTTLE ROD

RETAINER, THROTTLE ROD

0 ₽
17

84771M ROD, THROTTLE

ROD, THROTTLE

0 ₽
18

811037M ARM, Throttle

ARM, Throttle

0 ₽
19

23-81941M BUSHING

BUSHING

0 ₽
20

11-83763M NUT

NUT

510 ₽
21

13-82186M WASHER

WASHER

0 ₽
22

23-84454M BUSHING, THROTTLE ARM

BUSHING, THROTTLE ARM

0 ₽
23

12-82209M WASHER

WASHER

0 ₽
24

53-82328M RING, Snap

RING, Snap

60 ₽
25

10-80349M SCREW, DRAIN
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

SCREW, DRAIN
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

0 ₽
26

24-80331M SPRING, DRAIN VALVE
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

SPRING, DRAIN VALVE
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

0 ₽
27

25-80350M O-RING
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

O-RING
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

450 ₽
-

811038M REPAIR KIT, Carburetor

REPAIR KIT, Carburetor

8 470 ₽
-

27-96658M GASKET SET

GASKET SET

21 670 ₽
