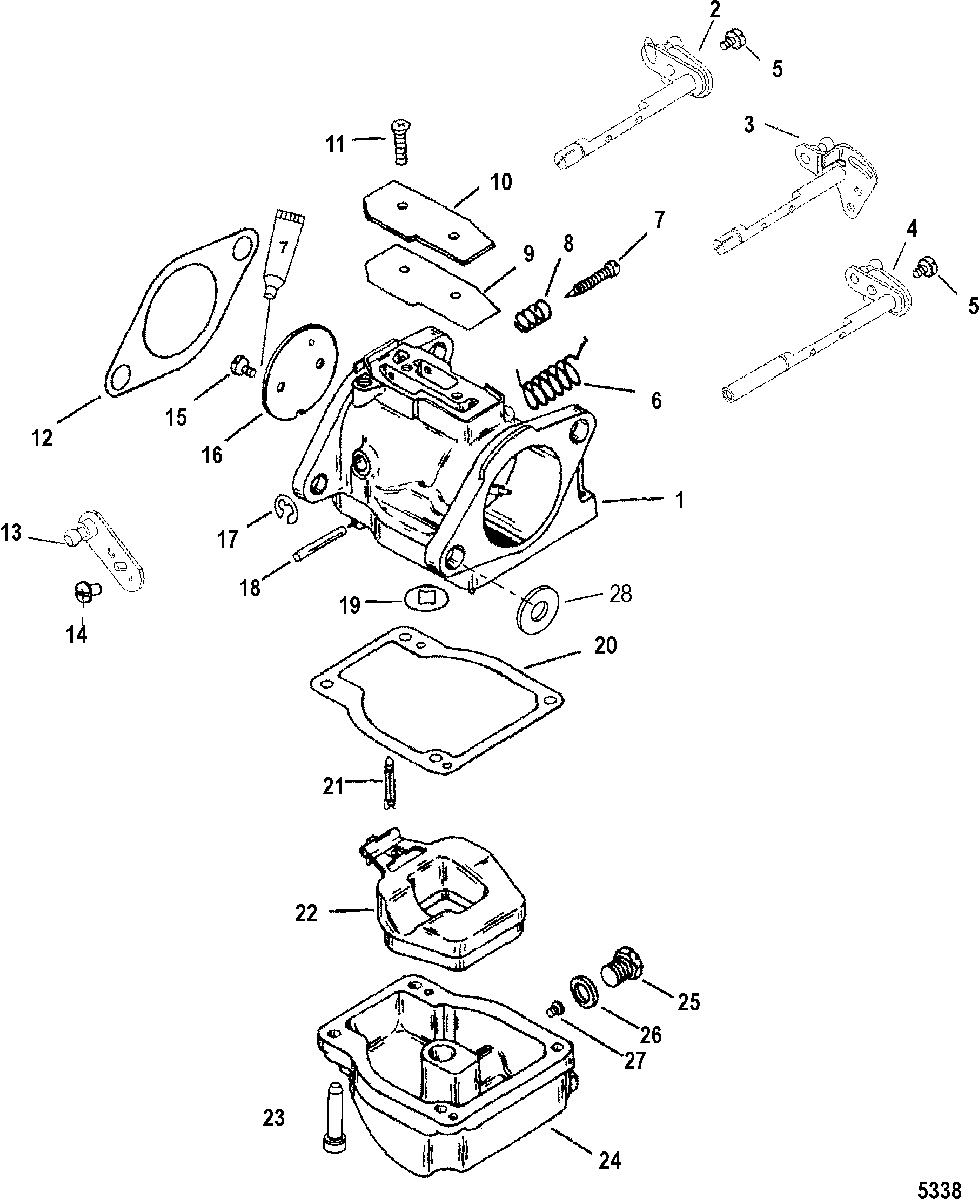

Carburetor для Mariner - 40 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
13301-823799T34 CARBURETOR, (WME 53-1), Top
(Electric 40)CARBURETOR, (WME 53-1), Top
(Electric 40) -
13301-823799T35 CARBURETOR, (WME 53-2), Center
(Electric 40)CARBURETOR, (WME 53-2), Center
(Electric 40) -
13301-823799T36 CARBURETOR, (WME 53-3), Bottom
(Electric 40)CARBURETOR, (WME 53-3), Bottom
(Electric 40) -
13301-823799T34 CARBURETOR, (WME 92-1), Top
(Electric)CARBURETOR, (WME 92-1), Top
(Electric) -
13301-823799T35 CARBURETOR, (WME 92-2), Center
(Electric)CARBURETOR, (WME 92-2), Center
(Electric) -
13301-823799T36 CARBURETOR, (WME 92-3), Bottom
(Electric)CARBURETOR, (WME 92-3), Bottom
(Electric) -
13301-823799T31 CARBURETOR, (WME 69-1), Top
(Manual 40)CARBURETOR, (WME 69-1), Top
(Manual 40) -
13301-823799T32 CARBURETOR, (WME 69-2), Center
(Manual 40)CARBURETOR, (WME 69-2), Center
(Manual 40) -
13301-823799A33 CARBURETOR, (WME 69-3), Bottom
(Manual 40)CARBURETOR, (WME 69-3), Bottom
(Manual 40) -
13301-823799T31 CARBURETOR, (WME 91-1), Top
(Manual)CARBURETOR, (WME 91-1), Top
(Manual) -
13301-823799T32 CARBURETOR, (WME 91-2), Center
(Manual)CARBURETOR, (WME 91-2), Center
(Manual) -
13301-823799A33 CARBURETOR, (WME 91-3), Bottom
(Manual)CARBURETOR, (WME 91-3), Bottom
(Manual) -
13301-824902T28 CARBURETOR, (WME 68-1), Top
(50)CARBURETOR, (WME 68-1), Top
(50) -
13301-824902T29 CARBURETOR, (WME 68-2), Center
(50)CARBURETOR, (WME 68-2), Center
(50) -
13301-824902T30 CARBURETOR, (WME 68-3), Bottom
(50)CARBURETOR, (WME 68-3), Bottom
(50) -
13301-824902T28 CARBURETOR, (WME 93-1), Top
(Electric)CARBURETOR, (WME 93-1), Top
(Electric) -
13301-824902T29 CARBURETOR, (WME 93-2), Center
(Electric)CARBURETOR, (WME 93-2), Center
(Electric) -
13301-824902T30 CARBURETOR, (WME 93-3), Bottom
(Electric)CARBURETOR, (WME 93-3), Bottom
(Electric) -
21395-823632 SHAFT, Throttle, Top
(WME-53/68/92/93)SHAFT, Throttle, Top
(WME-53/68/92/93) -
31395-823633 SHAFT, Throttle, Center
(WME-53/68/92/93)SHAFT, Throttle, Center
(WME-53/68/92/93) -
41395-823636 SHAFT, Throttle, Bottom
(WME-53/68/92/93)SHAFT, Throttle, Bottom
(WME-53/68/92/93) -
21395-823632 SHAFT, Throttle, Top/Bottom
(WME-69/91)SHAFT, Throttle, Top/Bottom
(WME-69/91) -
31395-823633 SHAFT, Throttle, Center
(WME-69/91)SHAFT, Throttle, Center
(WME-69/91) -
51395-823634 SCREW, Top/BottomSCREW, Top/Bottom
-
6NSS NOT SOLD SEPARATE
(Spring-Throttle Return)NOT SOLD SEPARATE
(Spring-Throttle Return) -
7NSS NOT SOLD SEPARATE
(Idle Needle)NOT SOLD SEPARATE
(Idle Needle) -
8NSS NOT SOLD SEPARATE
(Spring-Idle Needle)NOT SOLD SEPARATE
(Spring-Idle Needle) -
9NSS NOT SOLD SEPARATE
(Gasket-Cover Plate)NOT SOLD SEPARATE
(Gasket-Cover Plate) -
101395-811221 COVER PLATECOVER PLATE
-
111395-811220 SCREW, Cover PlateSCREW, Cover Plate
-
1227-8144461 GASKET, FlangeGASKET, Flange
-
131395-8113522 LEVER, Oil Pump, Bottom
(WME-53/68/92/93)LEVER, Oil Pump, Bottom
(WME-53/68/92/93) -
141395-8086121 SCREW, Lever Retainer, Bottom
(WME-53/68/92/93)SCREW, Lever Retainer, Bottom
(WME-53/68/92/93) -
1510-F10155 SCREW, Throttle ValveSCREW, Throttle Valve
-
161395-97245 VALVE, ThrottleVALVE, Throttle
-
17NSS NOT SOLD SEPARATE
(Retaining Ring)NOT SOLD SEPARATE
(Retaining Ring) -
18F10064 SHAFTSHAFT
-
191395-808738 GASKETGASKET
-
20NSS NOT SOLD SEPARATE
(Gasket-Fuel Bowl)NOT SOLD SEPARATE
(Gasket-Fuel Bowl) -
2110-95951 VALVE, Inlet NeedleVALVE, Inlet Needle
-
221395-9594 FLOATFLOAT
-
231395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
241395-811693 BOWL, Fuel
(WME-53/68/92/93)BOWL, Fuel
(WME-53/68/92/93) -
241395-811695 BOWL, Fuel, Top
(WME-69/91)BOWL, Fuel, Top
(WME-69/91) -
241395-811693 BOWL, Fuel, Center/Bottom
(WME-69/91)BOWL, Fuel, Center/Bottom
(WME-69/91) -
251395-811694 PLUG KIT
(WME-69/91)PLUG KIT
(WME-69/91) -
261395-802731 SEAL (Consists of 4 Seals)SEAL (Consists of 4 Seals)
-
271395-7394 JET, (.044)
(WME-53/69/91/92)JET, (.044)
(WME-53/69/91/92) -
271395-6359 JET, (.052)
(WME-68/93)JET, (.052)
(WME-68/93) -
-1395-8236354 REPAIR KIT, Carburetor
(1 Per Carburetor)REPAIR KIT, Carburetor
(1 Per Carburetor) -
-1395-8112231 GASKET SET, Carburetor
(1 Per Carburetor)GASKET SET, Carburetor
(1 Per Carburetor) -
-27-828553A97 GASKET SETGASKET SET
