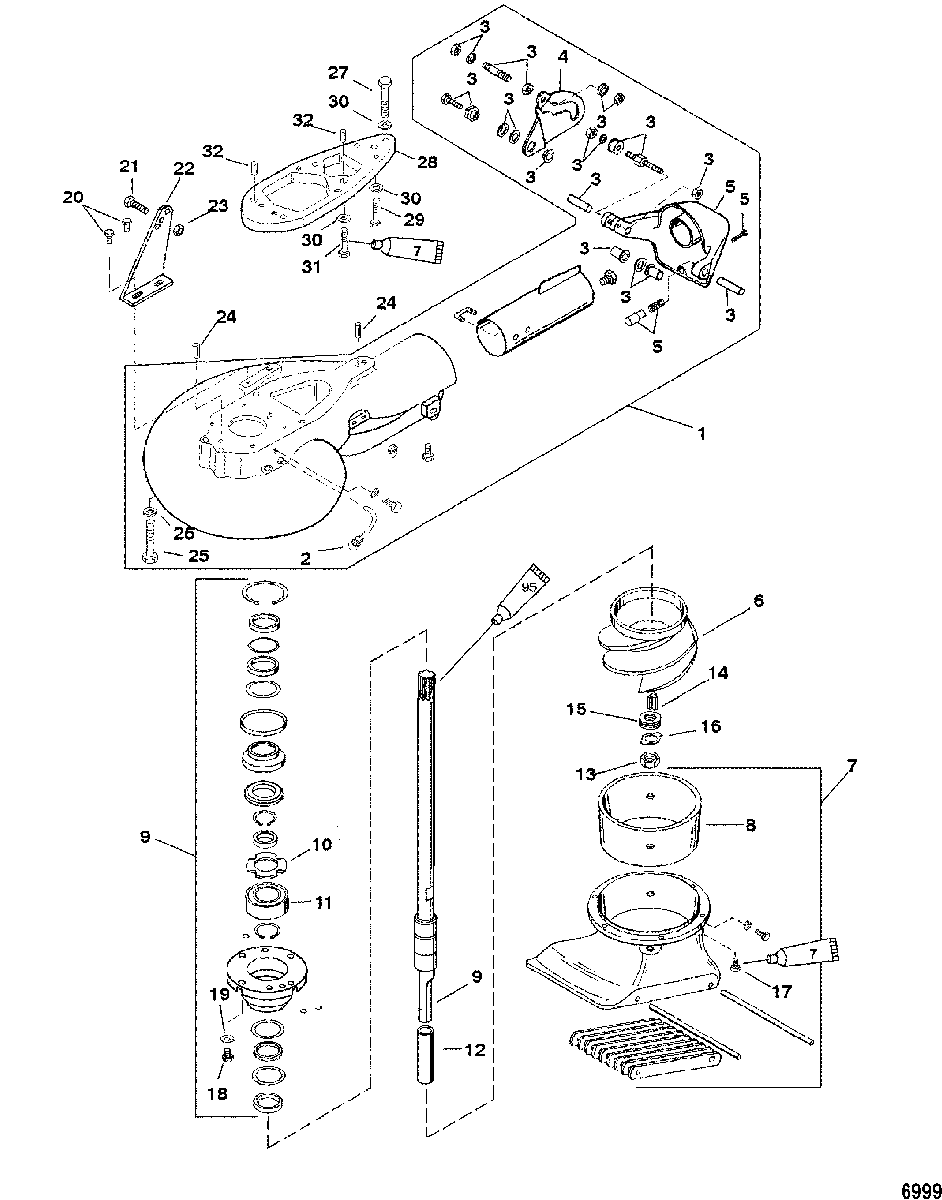

Jet Pump Assembly для Mariner - 40 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
-856143A5 JET PUMP ASSEMBLY
(With Stainless Steel Impeller)JET PUMP ASSEMBLY
(With Stainless Steel Impeller) -
1801411401 HOUSING, PumpHOUSING, Pump
-
232-827490 HOSE, LubeHOSE, Lube
-
3878376 SHIFT LINKAGE KITSHIFT LINKAGE KIT
-
4878381 CAMCAM
-
5878379 GATE, Reverse - With BumperGATE, Reverse - With Bumper
-
647-855708T40 IMPELLER
(Stainless Steel)IMPELLER
(Stainless Steel) -
780141240 HOUSING, IntakeHOUSING, Intake
-
8827188T1 LINERLINER
-
945-801413401 DRIVESHAFTDRIVESHAFT
-
1012-879652 THRUST WASHERTHRUST WASHER
-
1130-879653 BEARING, BallBEARING, Ball
-
1223-827189 SLEEVESLEEVE
-
1311-827190 NUTNUT
-
1428-801405625 KEY, ImpellerKEY, Impeller
-
1515-801404625 SHIM, ImpellerSHIM, Impeller
-
1614-801403625 TAB WASHERTAB WASHER
-
1710-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
1810-19923088 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
1912-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
2010-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2110-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
22801410 BRACKET, Cable SupportBRACKET, Cable Support
-
2311-82670910 NUT, (.312-18)NUT, (.312-18)
-
2417-801406 PIN, DowelPIN, Dowel
-
2510-19924250 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
2510-19924275 SCREW, (.312-18 x 2.75)SCREW, (.312-18 x 2.75)
-
2612-12038 WASHERWASHER
-
2710-19925125 SCREW, (.375-16 x 1.25)SCREW, (.375-16 x 1.25)
-
28853881 ADAPTORADAPTOR
-
2910-858771 SCREW, (M10 x 1.5 x 30)SCREW, (M10 x 1.5 x 30)
-
3012-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
3110-87810178 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
3217-821327 PIN, DowelPIN, Dowel
