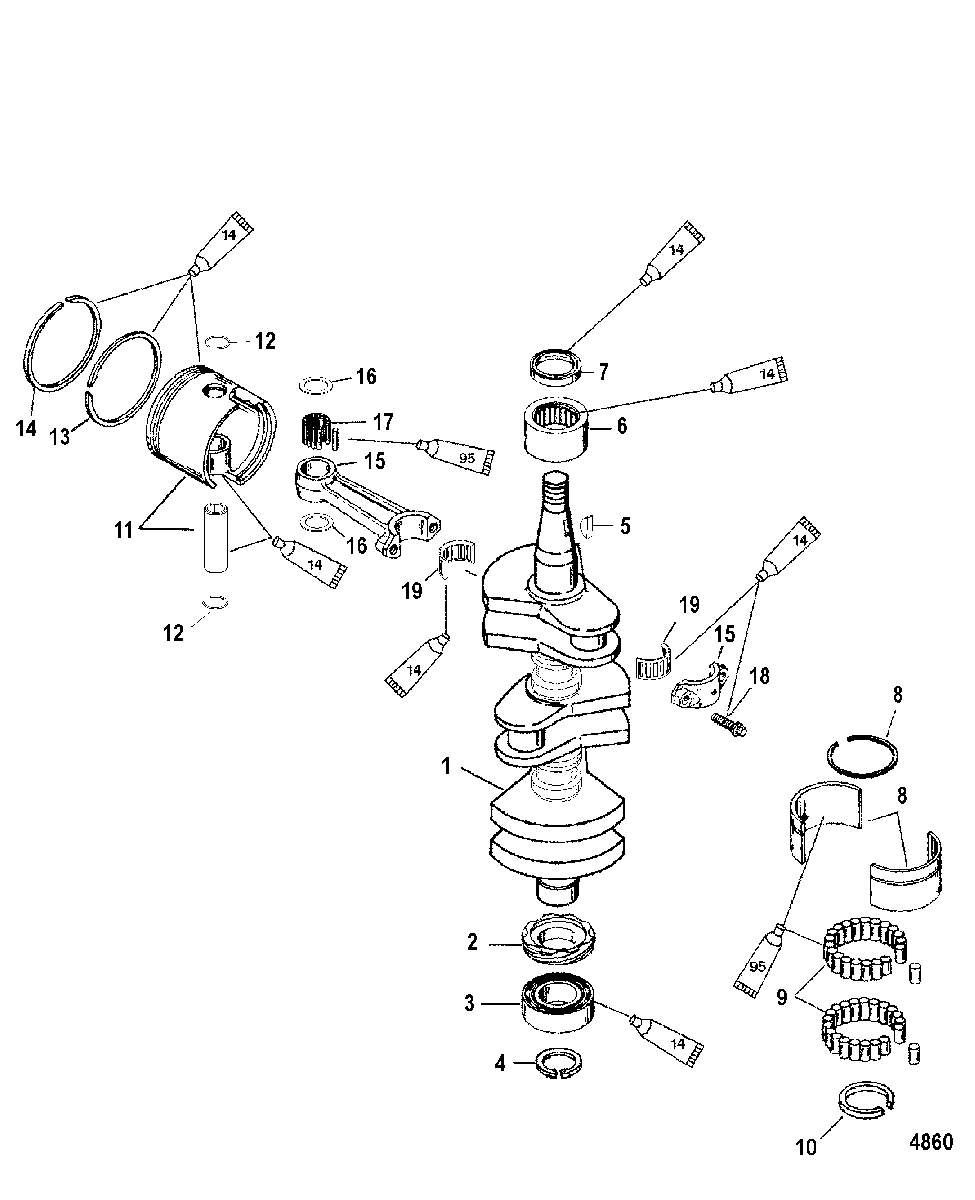

CRANKSHAFT, PISTONS AND CONNECTION RODS для Mariner - 40 (3 CYL.) 9973100 THRU 0P016999
-
№АртикулНазвание
-
12411-827954T3 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
243-43019A2 GEAR ASSEMBLYGEAR ASSEMBLY
-
330-63742T BEARING, BallBEARING, Ball
-
453-812877 RING, RetainingRING, Retaining
-
528-91800 KEY, WoodruffKEY, Woodruff
-
631-818889A1 BEARING ASSEMBLY, Roller
(TOP)BEARING ASSEMBLY, Roller
(TOP) -
726-8173971 SEAL, OilSEAL, Oil
-
8827955A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
9NSS NOT SOLD SEPARATE, RollerNOT SOLD SEPARATE, Roller
-
10NSS NOT SOLD SEPARATE, Ring-SealNOT SOLD SEPARATE, Ring-Seal
-
11705-850026T1 PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
11705-850026T2 PISTON ASSEMBLY
(.015 O.S.)PISTON ASSEMBLY
(.015 O.S.) -
1253-857196 RING, LockRING, Lock
-
1339-831255A6 RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
1339-821695A6 RING SET, Piston
(.015 O.S.)RING SET, Piston
(.015 O.S.) -
14NSS NOT SOLD SEPARATE, Piston Ring
(CHROME FACE)NOT SOLD SEPARATE, Piston Ring
(CHROME FACE) -
15640-9612A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1612-8M0012298 WASHERWASHER
-
1729-47270 BEARINGBEARING
-
1810-91012 SCREW, (.250-28 Special)SCREW, (.250-28 Special)
-
1931-8M0045428 BEARING KITBEARING KIT
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
