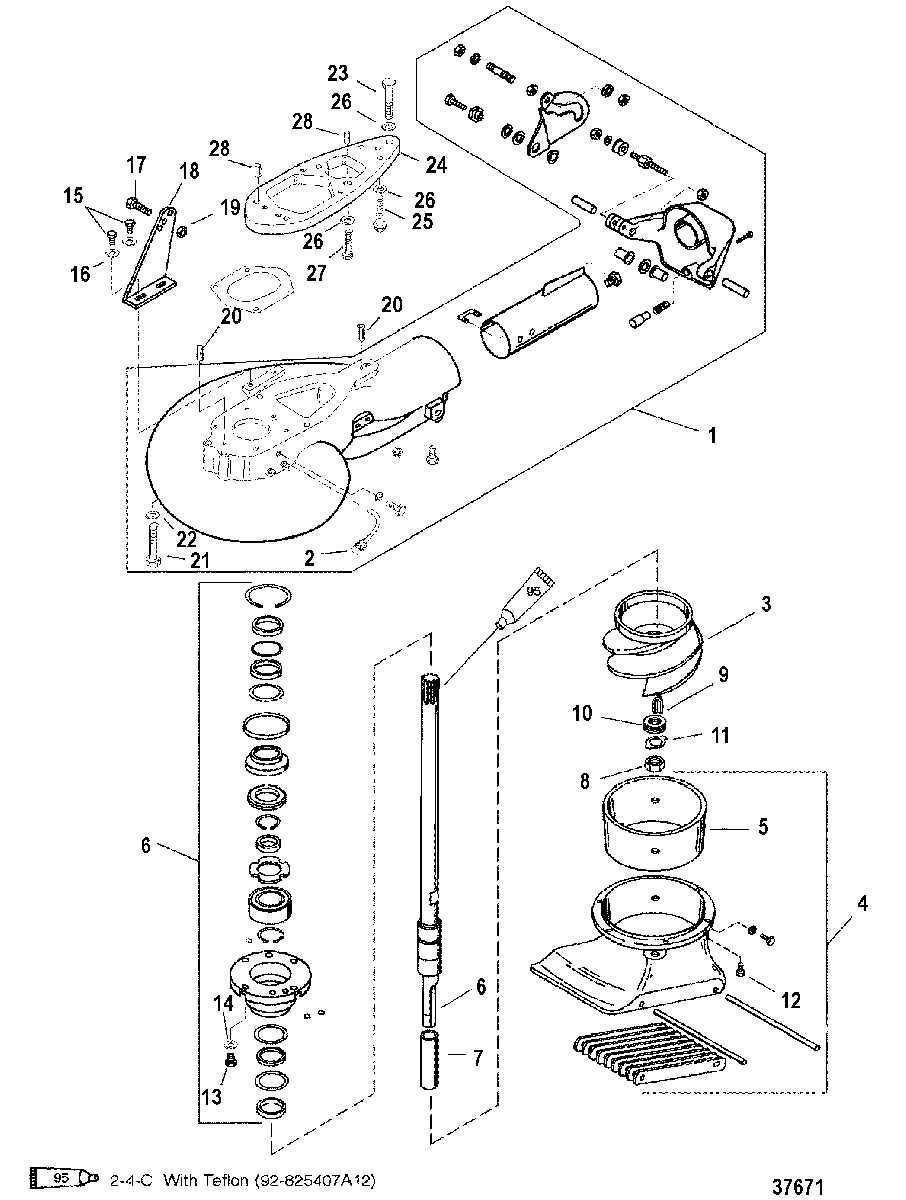

JET PUMP ASSEMBLY для Mariner - 40 (3 CYL.) 9973100 THRU 0P016999
-
№АртикулНазвание
-
-856143A5 JET PUMP ASSEMBLYJET PUMP ASSEMBLY
-
1801411401 HOUSING, PumpHOUSING, Pump
-
232-827490 HOSE, LubeHOSE, Lube
-
347-855708T40 IMPELLERIMPELLER
-
480141240 HOUSING, IntakeHOUSING, Intake
-
5827188T1 LINERLINER
-
645-801413401 DRIVESHAFTDRIVESHAFT
-
723-827189 SLEEVESLEEVE
-
811-827190 NUTNUT
-
928-801405625 KEY, ImpellerKEY, Impeller
-
1015-801404625 SHIM, ImpellerSHIM, Impeller
-
1114-801403625 TAB WASHERTAB WASHER
-
1210-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
1310-19923088 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
1412-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
1510-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1612-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
1710-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
18801410 BRACKET, Cable SupportBRACKET, Cable Support
-
1911-82670910 NUT, (.312-18)NUT, (.312-18)
-
2017-801406 PIN, DowelPIN, Dowel
-
2110-19924250 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
2110-19924275 SCREW, (.312-18 x 2.75)SCREW, (.312-18 x 2.75)
-
2212-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
2310-19925125 SCREW, (.375-16 x 1.25)SCREW, (.375-16 x 1.25)
-
24853881 ADAPTORADAPTOR
-
2510-858771 SCREW, (M10 x 1.5 x 30)SCREW, (M10 x 1.5 x 30)
-
2612-F8015 WASHERWASHER
-
2710-4000378 SCREW, (M10 x 35) Stainless SteelSCREW, (M10 x 35) Stainless Steel
-
2817-821327 PIN, DowelPIN, Dowel
