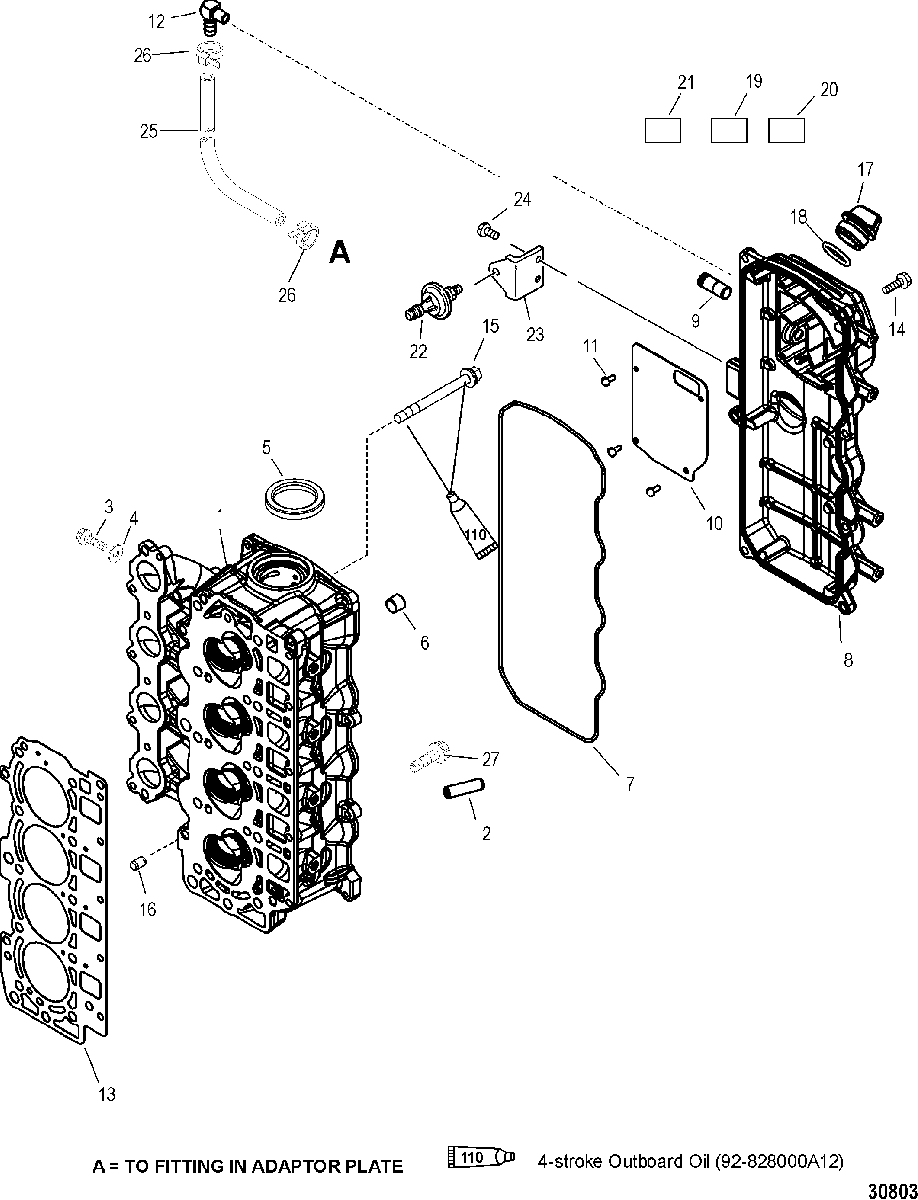

CYLINDER HEAD для Mariner - 40 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999
-
№АртикулНазвание
-
-893505T01 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
1893505T06 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
2858266 GUIDEGUIDE
-
310-4000325 SCREW, (M6 x 8)SCREW, (M6 x 8)
-
412-859768 WASHERWASHER
-
526-893549 SEAL, OilSEAL, Oil
-
622-875209 PIPE PLUGPIPE PLUG
-
725-8M0011870 SEALSEAL
-
8893694T02 COVERCOVER
-
9NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
10858277 PLATE, BafflePLATE, Baffle
-
1110-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1222-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
1327-8M0118179 GASKETGASKET
-
1410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1510-82503395 SCREW, (M9 x 95)SCREW, (M9 x 95)
-
1617-825010 PIN, DowelPIN, Dowel
-
17859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
1825-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
19NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
20NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
21NSS NOT SOLD SEPARATE, POWERHEAD IDNOT SOLD SEPARATE, POWERHEAD ID
-
22826060 DIAPHRAGMDIAPHRAGM
-
23877844 DASHPOT
(NON HANDLE)DASHPOT
(NON HANDLE) -
2410-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
2532-77653101 HOSE, (48.00 Inches Bulk) (Cut to 19 IN.)HOSE, (48.00 Inches Bulk) (Cut to 19 IN.)
-
2654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2710-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
-61-893678T03 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-859352A01 GASKET SETGASKET SET
-
-893505T01 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
