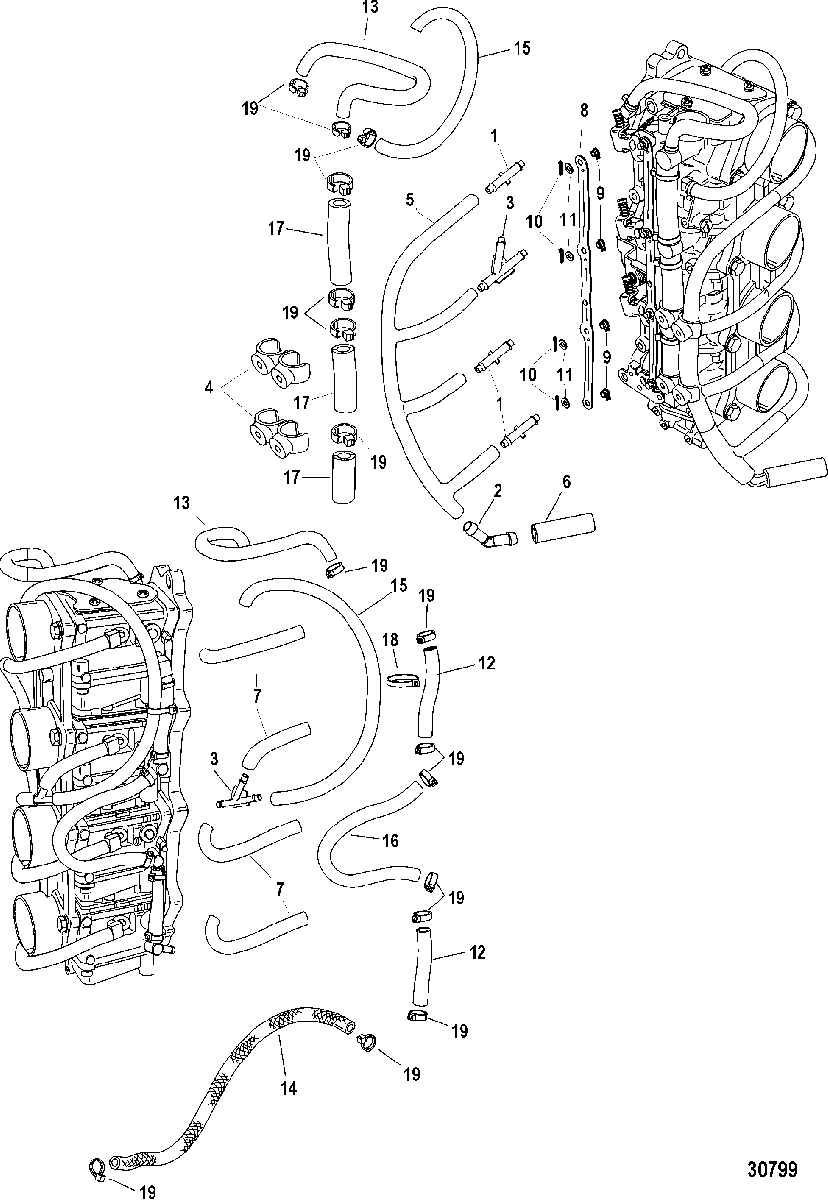

FUEL LINES для Mariner - 40 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999
-
№АртикулНазвание
-
122-822771 CONNECTORCONNECTOR
-
222-878404 FITTING, 45 DegreeFITTING, 45 Degree
-
322-878593 Y-CONNECTORY-CONNECTOR
-
454-878425 CLIPCLIP
-
532-878181 HOSEHOSE
-
632-85682239 TUBING, (17.00 Inches Bulk) (Cut to 3-1/2 IN)TUBING, (17.00 Inches Bulk) (Cut to 3-1/2 IN)
-
732-82381310 HOSEHOSE
-
88566101 LINKAGELINKAGE
-
923-803896 BUSHINGBUSHING
-
1018-880850 COTTER PINCOTTER PIN
-
1112-8542592 WASHERWASHER
-
1232-856607 HOSEHOSE
-
1332-856609 HOSEHOSE
-
1432-856611 HOSE and SLEEVEHOSE and SLEEVE
-
1532-880773 HOSEHOSE
-
1632-856613 HOSEHOSE
-
1732-880772 HOSEHOSE
-
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1956762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
