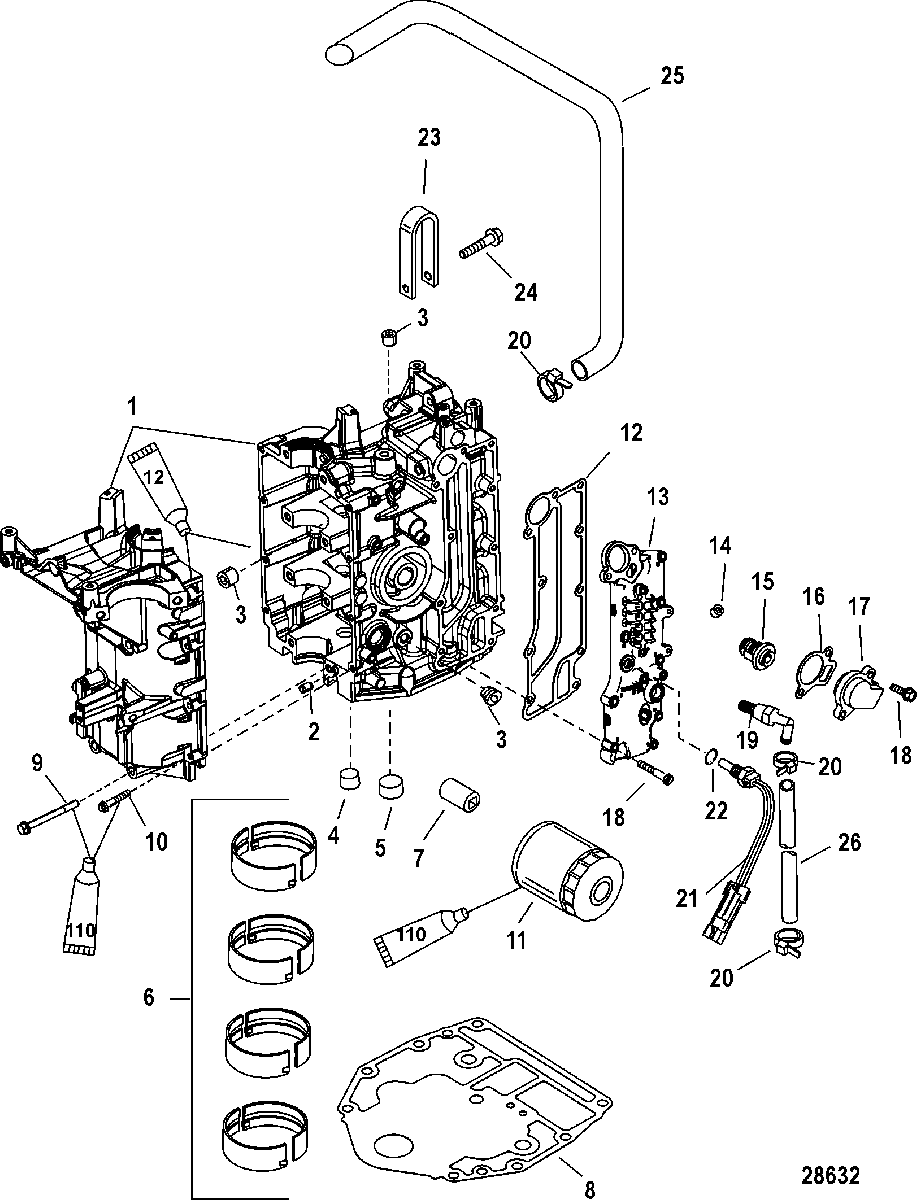

Cylinder Block для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1C043417 & Up
-
№АртикулНазвание
-
1800-893500T02 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
217-825010 PIN, DowelPIN, Dowel
-
322-479452 PLUGPLUG
-
422-384073 PLUG, Pipe (.500-14)PLUG, Pipe (.500-14)
-
522-416223 PLUG, Pipe (.750-14)PLUG, Pipe (.750-14)
-
623-893631 BEARING, Main - BrownBEARING, Main - Brown
-
623-893631001 BEARING, Main - BlackBEARING, Main - Black
-
623-893631002 BEARING, Main - BlueBEARING, Main - Blue
-
7822625 NIPPLE, (M20)NIPPLE, (M20)
-
827-892319001 GASKETGASKET
-
910-82506182 SCREW, (M8 x 82)SCREW, (M8 x 82)
-
1010-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1135-8M0065104 FILTER, OilFILTER, Oil
-
1227-8M4500244 GASKETGASKET
-
138M0118193 COVER, ExhaustCOVER, Exhaust
-
1422-479452 PLUGPLUG
-
15825212A1 THERMOSTATTHERMOSTAT
-
1627-824853 GASKETGASKET
-
178M0008243 COVER, ThermostatCOVER, Thermostat
-
1810-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1935-8M0021770 STRAINER, WaterSTRAINER, Water
-
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
21889575 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
2225-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
23893697 LIFTING EYELIFTING EYE
-
2410-857139 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2532-77653101 HOSE, (48.00 Inches Bulk), Cut to 19 Inches - To Fitting in Adaptor PlateHOSE, (48.00 Inches Bulk), Cut to 19 Inches - To Fitting in Adaptor Plate
-
2632-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 10 InchesTUBING, (.312) (70.00 Inches Bulk), Cut to 10 Inches
-
-27-859352A02 GASKET SETGASKET SET
-
-893714T05 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
