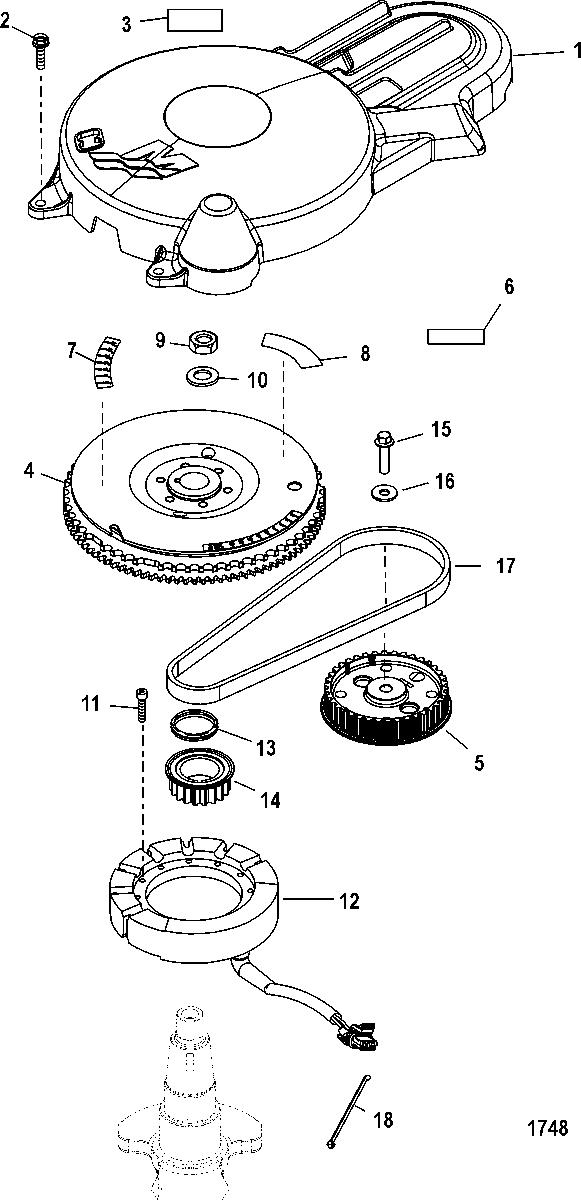

Flywheel для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1C043417 & Up
-
№АртикулНазвание
-
1859284T2 FLYWHEEL COVERFLYWHEEL COVER
-
210-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
337-883927A07 DECAL, EPA Label InformationDECAL, EPA Label Information
-
3NSS NOT SOLD SEPARATE, DECAL, EPA (2009 & Up)
(Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)NOT SOLD SEPARATE, DECAL, EPA (2009 & Up)
(Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18) -
4200-8M0053921 FLYWHEEL
Serial Number -1C104333 and BelowFLYWHEEL
Serial Number -1C104333 and Below -
4200-8M0118173 FLYWHEEL
Serial Number -1C104334 and UpFLYWHEEL
Serial Number -1C104334 and Up -
5833104T6 GEAR, DrivenGEAR, Driven
-
6NSS NOT SOLD SEPARATE, Decal-Warning Spinning FlywheelNOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
-
7NSS NOT SOLD SEPARATE, Decal-Timing MarksNOT SOLD SEPARATE, Decal-Timing Marks
-
8NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
911-893789 NUTNUT
-
1012-893762 WASHERWASHER
-
1110-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
12398-878143T05 STATORSTATOR
-
13834838 LOAD RINGLOAD RING
-
14833102T GEAR, DriveGEAR, Drive
-
1510-82761140 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
1612-4002320 WASHERWASHER
-
1757-8M0065179 BELTBELT
-
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
-37-881865 DECAL, Caution-Start in GearDECAL, Caution-Start in Gear
-
-893504T01 CYLINDER HEAD ASSEMBLY, CompleteCYLINDER HEAD ASSEMBLY, Complete
-
-893714T05 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
