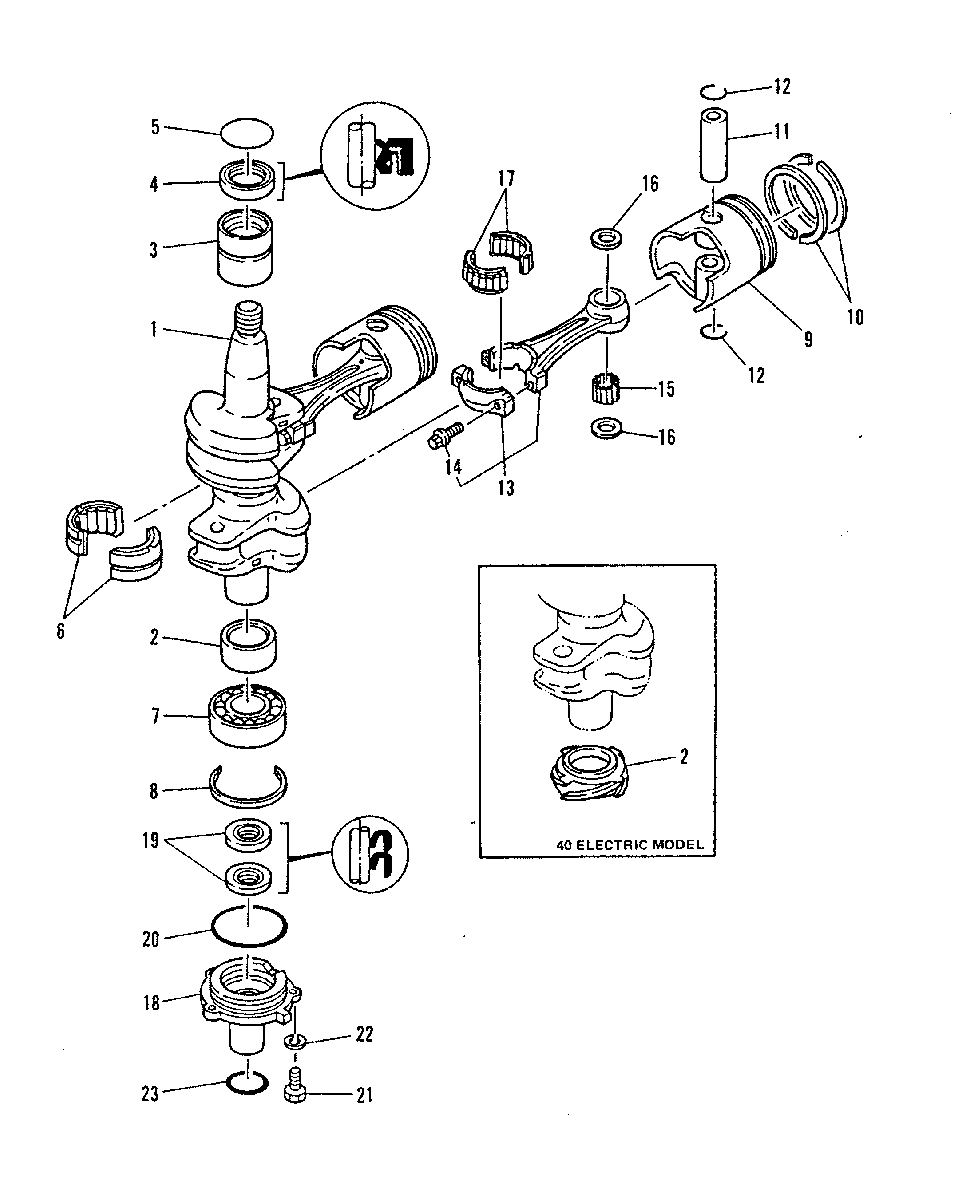

CRANKSHAFT AND PISTON для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-015001 AND UP (M)
-
№АртикулНазвание
-
1463-814557M CRANKSHAFTCRANKSHAFT
-
223-814558M SPACER (MANUAL)SPACER (MANUAL)
-
243-814559M GEAR (ELECTRIC)GEAR (ELECTRIC)
-
331-83341T NEEDLE BEARINGNEEDLE BEARING
-
426-82249M OIL SEALOIL SEAL
-
525-82276M O-RINGO-RING
-
631-97837T ROLLER BEARINGROLLER BEARING
-
730-814560T BALL BEARINGBALL BEARING
-
853-814561M CIRCLIPCIRCLIP
-
9761-8563M PISTON (STANDARD)PISTON (STANDARD)
-
9761-8564T PISTON (1ST O.S. - 0.25 MM)PISTON (1ST O.S. - 0.25 MM)
-
9761-8565T PISTON (2ND O.S. - 0.50 MM)PISTON (2ND O.S. - 0.50 MM)
-
1039-83896T PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
1039-83897T PISTON RING SET (1ST O.S. - 0.25MM)PISTON RING SET (1ST O.S. - 0.25MM)
-
1039-83898T PISTON RING SET (2ND O.S. - 0.50MM)PISTON RING SET (2ND O.S. - 0.50MM)
-
9761-811828T PISTON (STANDARD)PISTON (STANDARD)
-
9761-811829M PISTON (1ST O.S. - 0.25MM)PISTON (1ST O.S. - 0.25MM)
-
9761-811830M PISTON (2ND O.S. - 0.50MM)PISTON (2ND O.S. - 0.50MM)
-
1039-822880T PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
1039-822881M PISTON RING SET (1ST O.S. - O.25MM)PISTON RING SET (1ST O.S. - O.25MM)
-
1039-822882M PISTON RING SET (2ND O.S. - 0.50MM)PISTON RING SET (2ND O.S. - 0.50MM)
-
1141-83345T PINPIN
-
1253-81264M CLIPCLIP
-
13629-8808T CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-81715M BOLTBOLT
-
1529-82353M NEEDLE BEARINGNEEDLE BEARING
-
1612-81831M WASHERWASHER
-
1731-97710M ROLLER BEARINGROLLER BEARING
-
18814562M HOUSINGHOUSING
-
1926-83347M OIL SEALOIL SEAL
-
2025-82286M O-RINGO-RING
-
2110-84058M BOLTBOLT
-
2212-82214M WASHERWASHER
-
2325-83348M O-RINGO-RING
-
-27-814556M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 2POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 2
