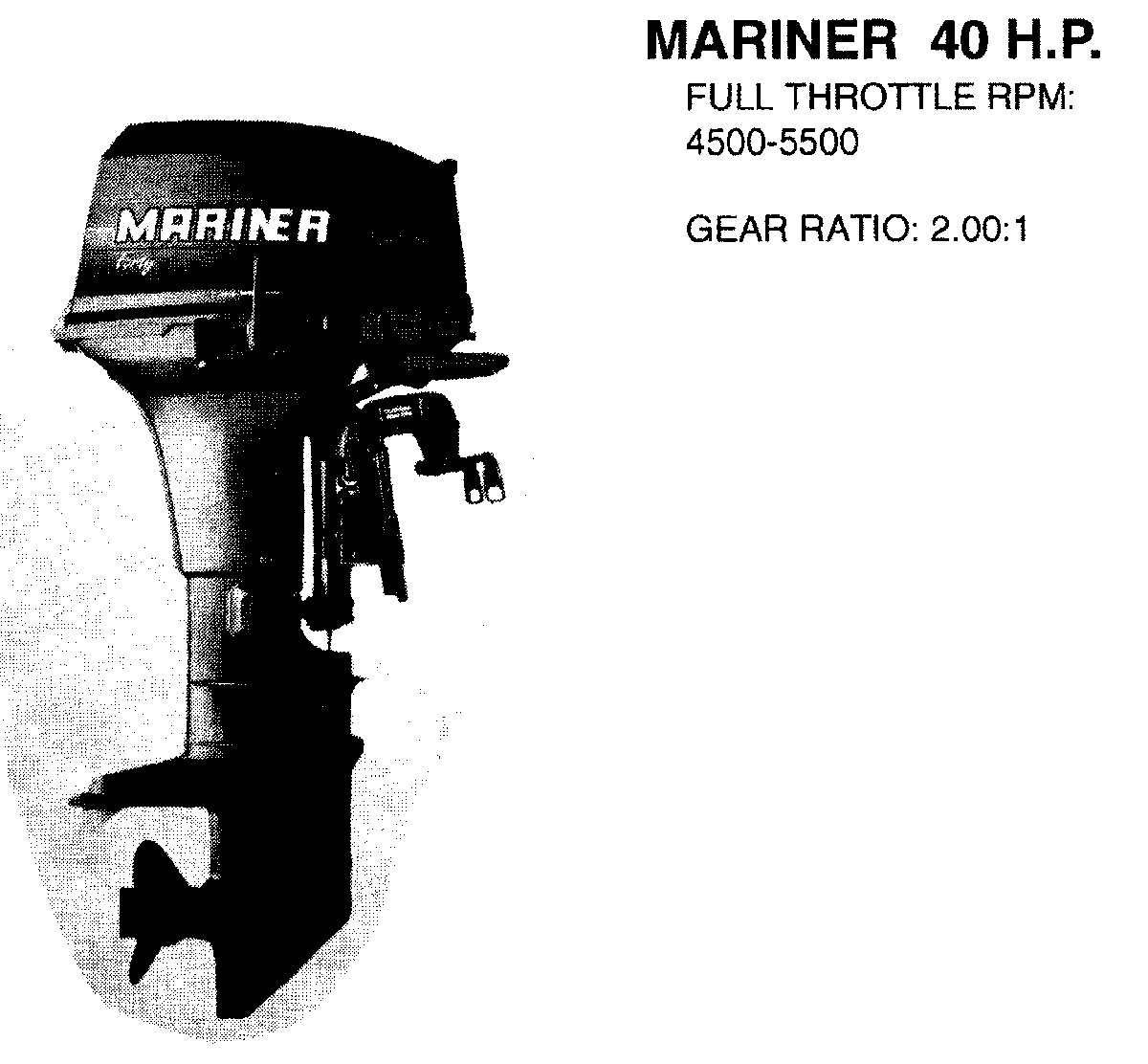

PROP CHART для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-015001 AND UP (M)
-
№АртикулНазвание
-
-48-73146A45 ALUMINUM (19" PITCH)ALUMINUM (19" PITCH)
-
-48-73144A45 ALUMINUM (17" PITCH)ALUMINUM (17" PITCH)
-
-48-91818A5 S. STEEL (16" PITCH)S. STEEL (16" PITCH)
-
-48-73142A45 ALUMINUM (16" PITCH)ALUMINUM (16" PITCH)
-
-48-855862A46 S. STEEL (15" PITCH)S. STEEL (15" PITCH)
-
-48-73140A45 ALUMINUM (15" PITCH)ALUMINUM (15" PITCH)
-
-48-855860A46 S. STEEL (14" PITCH)S. STEEL (14" PITCH)
-
-48-73138A45 ALUMINUM (14" PITCH)ALUMINUM (14" PITCH)
-
-48-855858A46 S. STEEL (13" PITCH)S. STEEL (13" PITCH)
-
-48-73136A45 ALUMINUM (13" PITCH)ALUMINUM (13" PITCH)
-
-48-855856A46 S. STEEL (12" PITCH)S. STEEL (12" PITCH)
-
-48-73134A45 ALUMINUM (12" PITCH)ALUMINUM (12" PITCH)
-
-48-85632A45 ALUMINUM (11" PITCH)ALUMINUM (11" PITCH)
-
-48-42740A45 ALUMINUM (10-1/2" PITCH)ALUMINUM (10-1/2" PITCH)
-
-48-7313240 ALUMINUM (10" PITCH)ALUMINUM (10" PITCH)
-
-48-978685 S. STEEL (9" PITCH)S. STEEL (9" PITCH)
-
-48-84818A10 ALUMINUM (9" PITCH)ALUMINUM (9" PITCH)
-
-48-42738A45 ALUMINUM (8" PITCH)ALUMINUM (8" PITCH)
Все узлы модели:
- BOTTOM COWLING
- CARBURETOR
- CLAMP AND SWIVEL BRACKET, REVERSE LOCK AND MOUNTING SYSTEM
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRICAL COMPONENTS (KILL SWITCH ASSEMBLY)
- ELECTRICAL COMPONENTS (STARTER RELAY ASSEMBLY)
- FUEL PUMP, LINES AND FILTER
- FUEL TANK AND FUEL LINE ASSEMBLY-NOT ORIGINAL EQUIPMENT TANK
- FUEL TANK AND LINES (ORIGINAL EQUIPMENT)
- GEAR HOUSING ASSEMBLY
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD
- LOWER GEAR HOUSING ASSEMBLY
- MAGNETO
- OIL PUMP
- • PROP CHART
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STARTER MOTOR
- STEERING HANDLE
- THROTTLE CONTROL
- TILT LEVER/PIN
- TOP COWLING
