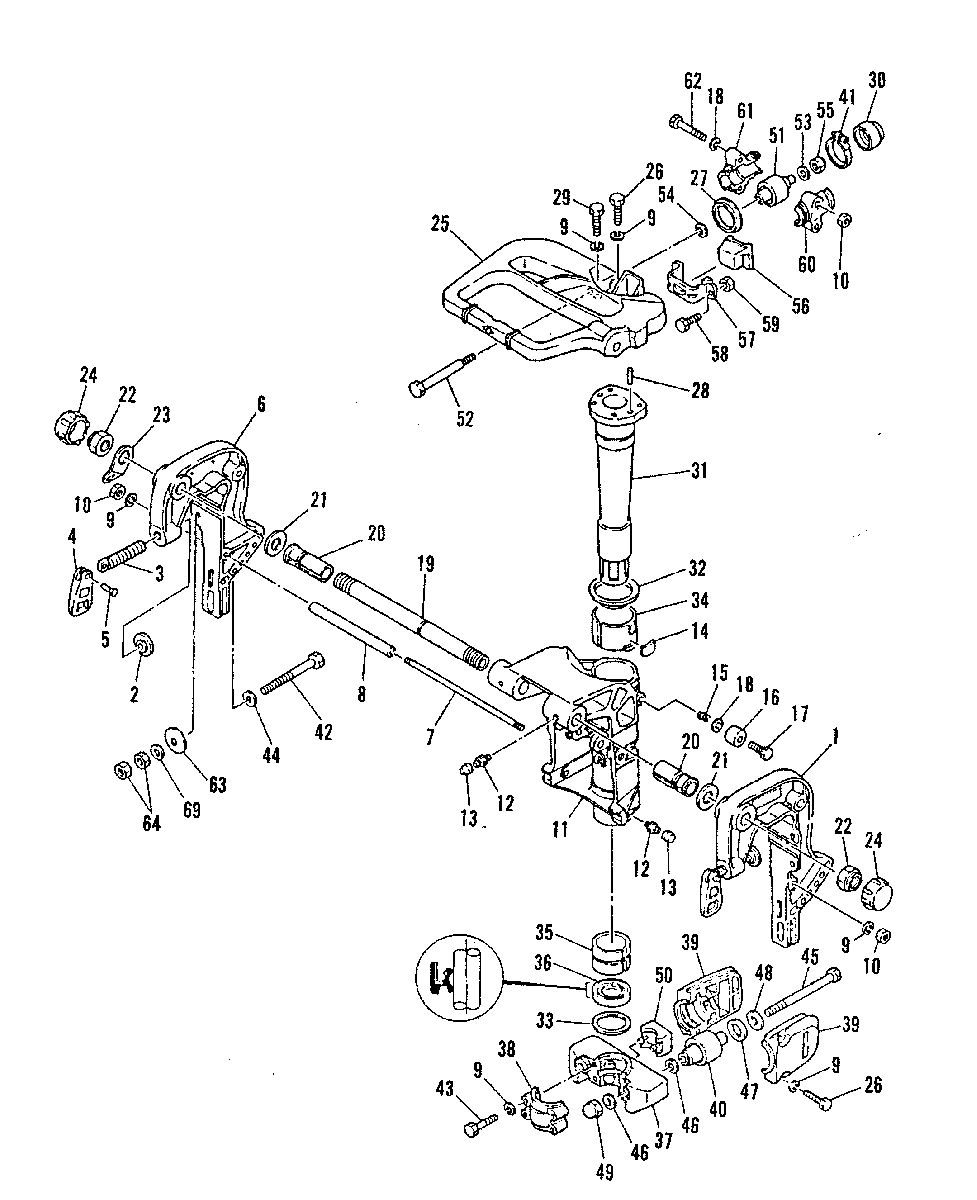

CLAMP AND SWIVEL BRACKET, REVERSE LOCK AND MOUNTING SYSTEM для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-150001 AND UP (E)
-
№АртикулНазвание
-
11484-9822M CLAMP BRACKET (PORT)CLAMP BRACKET (PORT)
-
212-80638M PADPAD
-
310-83481M SCREWSCREW
-
411868M HANDLEHANDLE
-
517-81889M PINPIN
-
61484-9823M CLAMP BRACKET (STARBOARD)CLAMP BRACKET (STARBOARD)
-
716-83472M STUDSTUD
-
819258M SPACERSPACER
-
913-82215M LOCKWASHERLOCKWASHER
-
1011-82382M NUTNUT
-
111485-9821M SWIVEL BRACKETSWIVEL BRACKET
-
1222-82369M GREASE FITTINGGREASE FITTING
-
1381439M CAPCAP
-
1480633M FRICTION PIECEFRICTION PIECE
-
1524-83488M SPRINGSPRING
-
1626-83490M RUBBERRUBBER
-
1710-43106M BOLTBOLT
-
1812-82217M WASHERWASHER
-
1910-18974M BOLTBOLT
-
2023-41313M BUSHINGBUSHING
-
2112-81836M WASHERWASHER
-
2211-879172252 NUTNUT
-
2319111M PLATEPLATE
-
24811914M CAPCAP
-
24811914M CAPCAP
-
258M0057160 BRACKETBRACKET
-
2610-95416M BOLTBOLT
-
2725-83505M SEALSEAL
-
2817-82368M DOWEL PINDOWEL PIN
-
2910-82442M BOLTBOLT
-
3083912M CAPCAP
-
3183907M SHAFTSHAFT
-
3212-83482M WASHERWASHER
-
3312-83487M WASHERWASHER
-
3423-83483M BUSHINGBUSHING
-
3523-83485M BUSHINGBUSHING
-
3626-83486M OIL SEALOIL SEAL
-
3783492T HOUSINGHOUSING
-
3883491M HOUSINGHOUSING
-
3983512M COVERCOVER
-
408M0050006 MOUNTMOUNT
-
4154-83507M CLAMPCLAMP
-
4154-827148M CLAMPCLAMP
-
4210-84970M BOLTBOLT
-
4310-85277614 BOLTBOLT
-
4412-82220M WASHERWASHER
-
4510-83510M BOLTBOLT
-
4612-84429M WASHERWASHER
-
4712-81860M WASHERWASHER
-
4812-83915M WASHERWASHER
-
4911-82397M NUTNUT
-
5083511M DAMPERDAMPER
-
518M0121495 MOUNTMOUNT
-
5210-83501M BOLTBOLT
-
5312-83911M WASHERWASHER
-
5412-83504M WASHERWASHER
-
5511-84295M NUTNUT
-
5683496M DAMPERDAMPER
-
5783497M BRACKETBRACKET
-
5810-82405M BOLTBOLT
-
5911-82389M NUTNUT
-
6083498M COVERCOVER
-
6183499M COVERCOVER
-
6210-83506M BOLTBOLT
-
6312-81812M WASHERWASHER
-
6411-82395M NUTNUT
