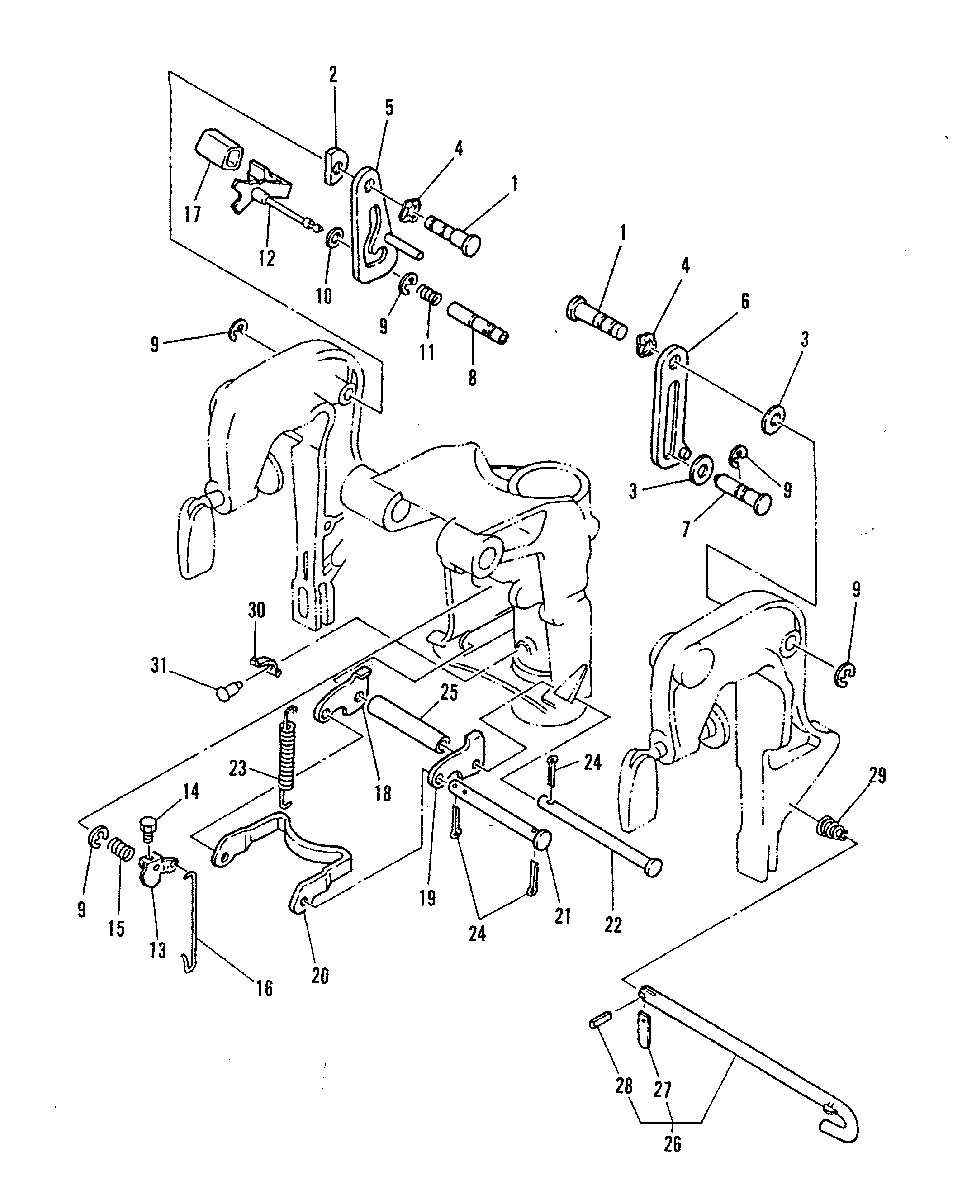

TILT LEVER/PIN для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-150001 AND UP (E)
-
№АртикулНазвание
-
117-19257M PINPIN
-
212-83458M WASHERWASHER
-
312-83462M WASHERWASHER
-
413-83457M WAVE WASHERWAVE WASHER
-
514278M TILT STOPTILT STOP
-
642441M TILT STOPTILT STOP
-
717-95450M PINPIN
-
883464M SHAFTSHAFT
-
953-83461M SNAP RINGSNAP RING
-
1012-83493M WASHERWASHER
-
1124-83909M SPRINGSPRING
-
1214260M TILT LEVER ASSEMBLYTILT LEVER ASSEMBLY
-
1383467M TILT LEVERTILT LEVER
-
1410-84313M BOLTBOLT
-
1524-83465M SPRINGSPRING
-
1683468M RODROD
-
1781395M COVERCOVER
-
1883905M BRACKETBRACKET
-
1983906M BRACKETBRACKET
-
2083479M TILT LOCKTILT LOCK
-
2117-83477M PINPIN
-
2217-83478M PINPIN
-
2324-83476M SPRINGSPRING
-
2418-82128M COTTER PINCOTTER PIN
-
2523-83480M SPACERSPACER
-
2617-814972T TILT PIN ASSEMBLYTILT PIN ASSEMBLY
-
2784044M STOPPERSTOPPER
-
2817-82146M ROLL PINROLL PIN
-
2924-814973M SPRINGSPRING
-
3024-83494M SPRINGSPRING
-
3117-83495M RIVETRIVET
