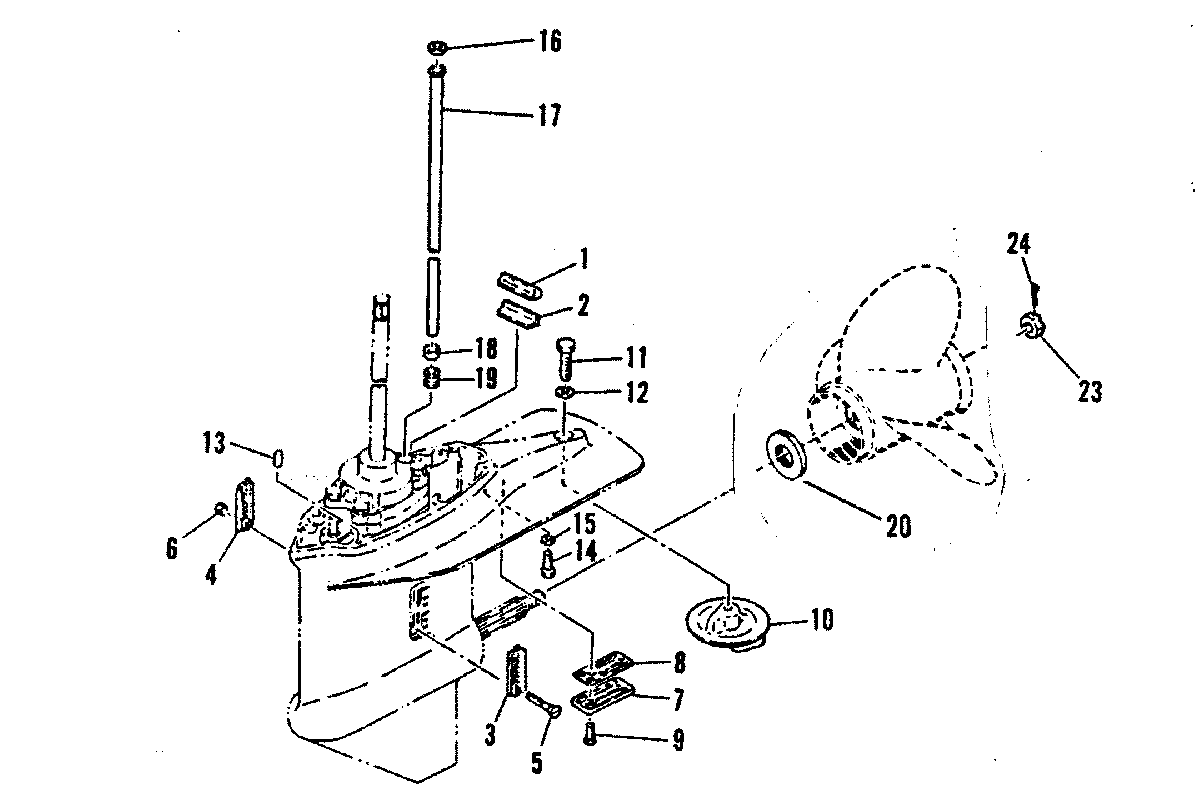

LOWER GEAR HOUSING ASSEMBLY для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-350001 AND UP (ML)
-
№АртикулНазвание
-
181448M DAMPERDAMPER
-
281449M GUIDEGUIDE
-
319166M COVERCOVER
-
419167M COVERCOVER
-
510-83858M SCREWSCREW
-
611-8528165 NUTNUT
-
795417M PLATE
DOUBLE SCREW MOUNTINGPLATE
DOUBLE SCREW MOUNTING -
827-95418M GASKET
DOUBLE SCREW MOUNTINGGASKET
DOUBLE SCREW MOUNTING -
910-83870M SCREW
DOUBLE SCREW MOUNTINGSCREW
DOUBLE SCREW MOUNTING -
7835081M PLATE
SINGLE SCREW MOUNTINGPLATE
SINGLE SCREW MOUNTING -
827-835082M GASKET
SINGLE SCREW MOUNTINGGASKET
SINGLE SCREW MOUNTING -
910-83870M SCREW
SINGLE SCREW MOUNTINGSCREW
SINGLE SCREW MOUNTING -
1083859T TRIM TAB
.TRIM TAB
. -
1110-94532M BOLTBOLT
-
1213-82218M WASHERWASHER
-
1317-82364M DOWEL PINDOWEL PIN
-
1410-95416M BOLTBOLT
-
1513-82215M WASHERWASHER
-
1612-81852M WASHERWASHER
-
1732-83451M WATER TUBE (SHORT)WATER TUBE (SHORT)
-
1732-83452M WATER TUBE (LONG)WATER TUBE (LONG)
-
1825-81989M O-RINGO-RING
-
1926-81427M WATER SEALWATER SEAL
-
2073345A1 THRUST HUBTHRUST HUB
-
2073345A1 THRUST WASHERTHRUST WASHER
-
2123-84445T SPACERSPACER
-
2212-83700M WASHERWASHER
-
23859935 NUTNUT
-
2418-82132M COTTER PINCOTTER PIN
-
-27-94533M LOWER UNIT GASKET SET
CONTENTS INDICATED BY FOOTNOTE 3LOWER UNIT GASKET SET
CONTENTS INDICATED BY FOOTNOTE 3
