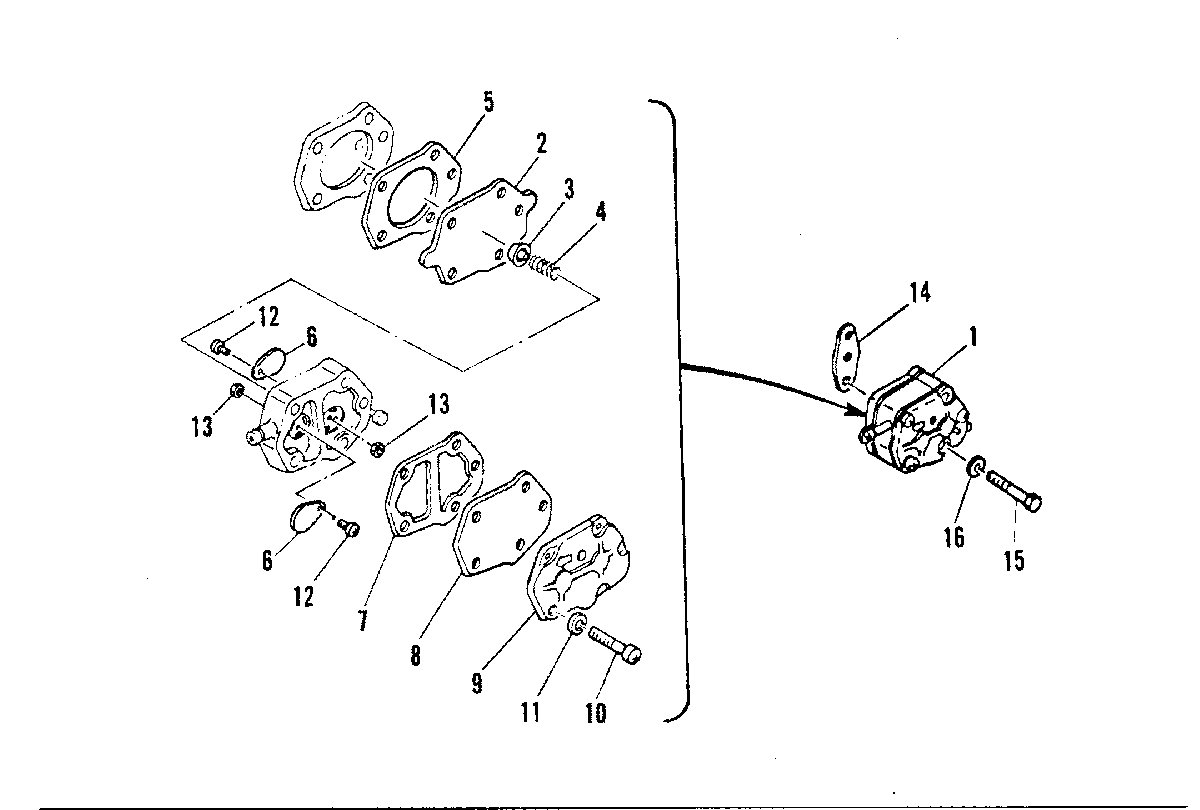

FUEL PUMP для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B302426 AND UP (ML)
-
№АртикулНазвание
-
143113T FUEL PUMP ASS'Y
SERIAL 00003931-09999999FUEL PUMP ASS'Y
SERIAL 00003931-09999999 -
143113T FUEL PUMP ASS'Y
SERIAL 00000000-00003930FUEL PUMP ASS'Y
SERIAL 00000000-00003930 -
280606M DIAPHRAGMDIAPHRAGM
-
380611M PLATE,SPRING GUIDEPLATE,SPRING GUIDE
-
424-80610M SPRINGSPRING
-
527-80613 GASKET,BODY TO BASEGASKET,BODY TO BASE
-
621-41888M CHECK VALVE
SERIAL 00003931-09999999CHECK VALVE
SERIAL 00003931-09999999 -
621-84650M CHECK VALVE
SERIAL 00000000-00003930CHECK VALVE
SERIAL 00000000-00003930 -
727-80614 GASKET,BODY TO COVERGASKET,BODY TO COVER
-
884141M DIAPHRAGMDIAPHRAGM
-
980607M COVERCOVER
-
1010-82522M SCREWSCREW
-
1113-82186M WASHER,LOCKWASHER,LOCK
-
1210-813484M SCREW
SERIAL 00003931-09999999SCREW
SERIAL 00003931-09999999 -
1311-82537M NUT
SERIAL 00003931-09999999NUT
SERIAL 00003931-09999999 -
1427-80757 GASKET,FUEL PUMP TO CRANKCASEGASKET,FUEL PUMP TO CRANKCASE
-
1510-827043M BOLTBOLT
-
1612-82214M WASHER,LOCKWASHER,LOCK
