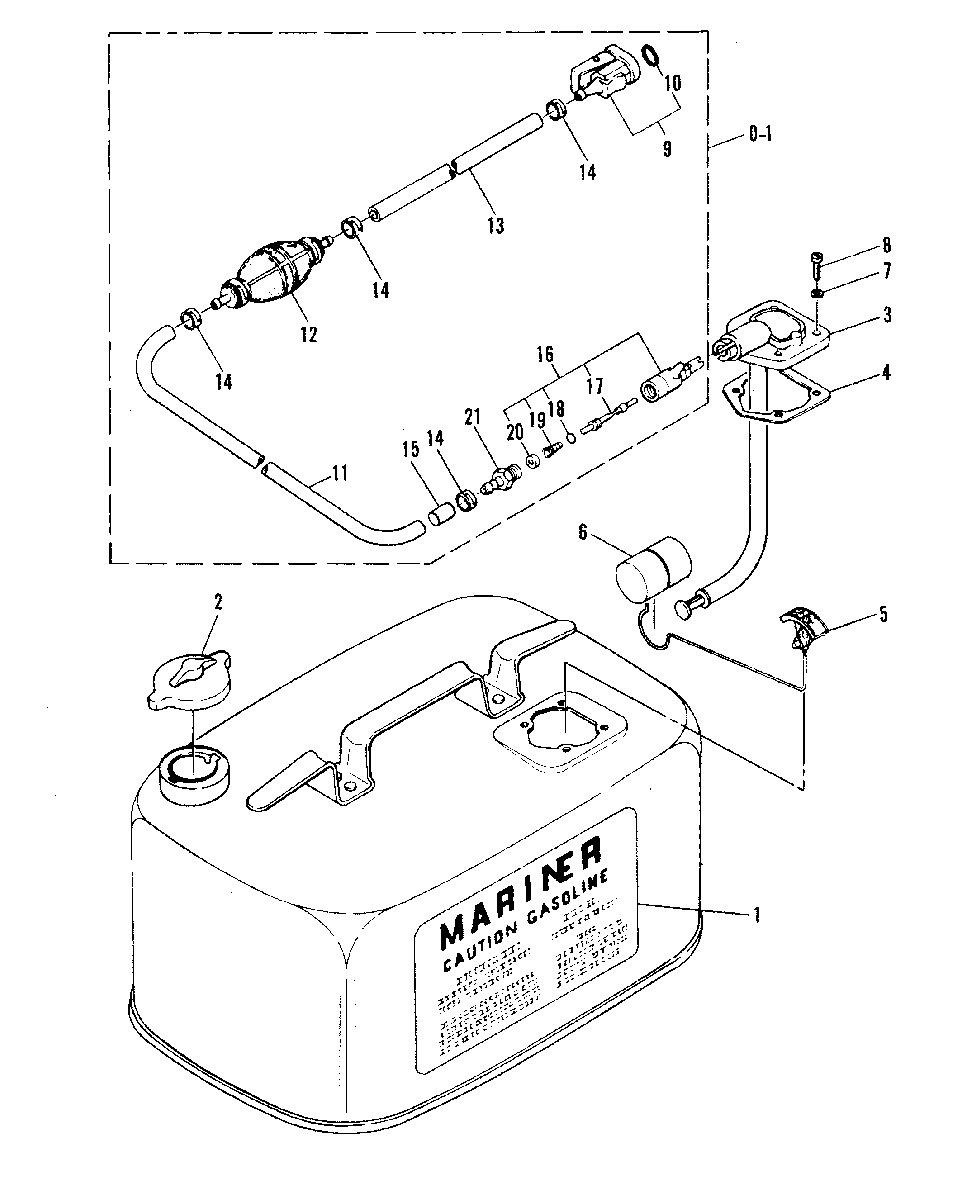

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B302426 AND UP (ML)
-
№АртикулНазвание
-
137-82984M DECAL,SIDEDECAL,SIDE
-
236-18962M FUEL TANK CAPFUEL TANK CAP
-
383618M FUEL METERFUEL METER
-
427-81320M GASKET,HOUSING TO TANKGASKET,HOUSING TO TANK
-
581318M INDICATOR,FUEL LEVELINDICATOR,FUEL LEVEL
-
681319M FLOAT,INDICATORFLOAT,INDICATOR
-
712-95501M WASHER,HOUSING SCREWWASHER,HOUSING SCREW
-
810-82496M SCREWSCREW
-
0-132-877681Q8 FUEL LINE ASS'YFUEL LINE ASS'Y
-
922-14213Q FUEL CONNECTOR,ENGINE ENDFUEL CONNECTOR,ENGINE END
-
1025-82789M O-RINGO-RING
-
1132-94727M HOSE,CONNECTOR HOUSING TO BULBHOSE,CONNECTOR HOUSING TO BULB
-
1289396Q01 BULB,PRIMERBULB,PRIMER
-
1332-94727M HOSE,BULB TO CONNECTORHOSE,BULB TO CONNECTOR
-
1454-16725M CLAMP,HOSECLAMP,HOSE
-
1523-81327M COLLARCOLLAR
-
1630185Q3 BAYONET BODY ASS'YBAYONET BODY ASS'Y
-
1730185Q3 STEM,BAYONET BODYSTEM,BAYONET BODY
-
1825-16524 O-RING,BAYONET BODY STEMO-RING,BAYONET BODY STEM
-
1924-30189 SPRING,BAYONET BODY STEMSPRING,BAYONET BODY STEM
-
2030188 WASHER,CAPWASHER,CAP
-
2122-63187 FITTING,FUEL LINEFITTING,FUEL LINE
