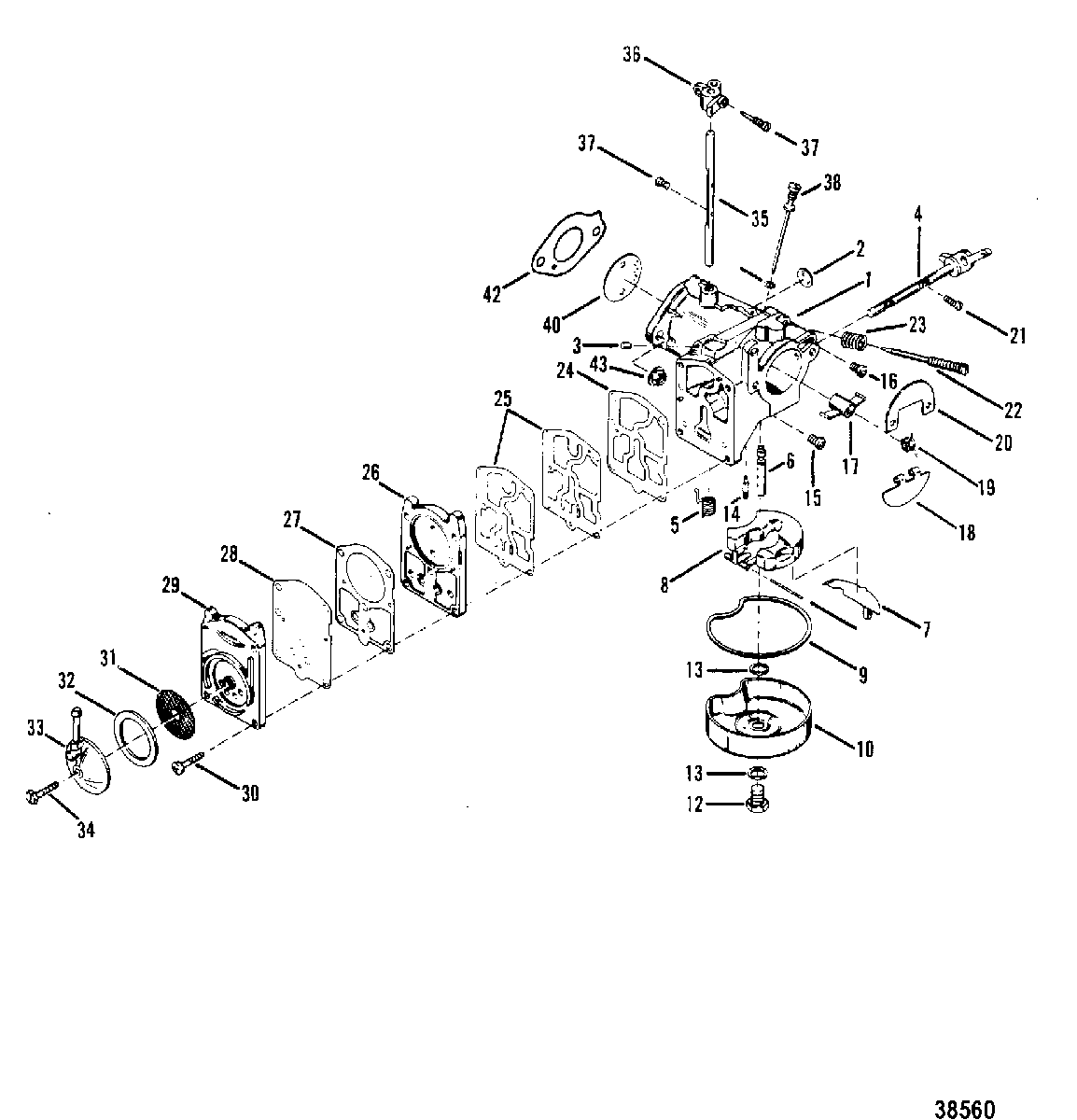

CARBURETOR ASSEMBLY(TILLOTSON) для Mariner - 45 (4 CYL.) 8063985 & Up
-
№АртикулНазвание
-
11367-6517A61 CARBURETOR ASSEMBLY
(MANUAL)CARBURETOR ASSEMBLY
(MANUAL) -
11367-6517A61 CARBURETOR ASSEMBLY
(ELECTRIC)CARBURETOR ASSEMBLY
(ELECTRIC) -
2NSS NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)
-
3NSS NOT SOLD SEPARATE, PLUG, BODY CHANNELNOT SOLD SEPARATE, PLUG, BODY CHANNEL
-
41395-9296A1 SHAFT ASSEMBLY, ChokeSHAFT ASSEMBLY, Choke
-
5NSS NOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFTNOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFT
-
6NSS NOT SOLD SEPARATE, MAIN NOZZLE
(NLA Per Service Bulletin 88-12)NOT SOLD SEPARATE, MAIN NOZZLE
(NLA Per Service Bulletin 88-12) -
7814483 BAFFLE, FUEL BOWLBAFFLE, FUEL BOWL
-
81395-9293 FLOATFLOAT
-
9NSS NOT SOLD SEPARATE, PIN, FLOAT RETAININGNOT SOLD SEPARATE, PIN, FLOAT RETAINING
-
101399-5127 BOWL, FuelBOWL, Fuel
-
11NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
121399-5415 SCREW, FUEL BOWL TO CARBURETORSCREW, FUEL BOWL TO CARBURETOR
-
13NSS NOT SOLD SEPARATE, GASKET, FUEL BOWL SCREWNOT SOLD SEPARATE, GASKET, FUEL BOWL SCREW
-
141395-9022 NEEDLE AND SPRING, InletNEEDLE AND SPRING, Inlet
-
151399-1655 JET, MAIN FUEL (.055)JET, MAIN FUEL (.055)
-
161399-6249 JET, Main (.096)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowJET, Main (.096)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
161395-5733 JET, Main (.092)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpJET, Main (.092)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
1764677 VENTURIVENTURI
-
181399-5194 VALVE, CHOKE RELIEF - ELECTRICVALVE, CHOKE RELIEF - ELECTRIC
-
191399-5414 SPRING, CHOKE RELIEF VALVE - ELECTRICSPRING, CHOKE RELIEF VALVE - ELECTRIC
-
201399-5197 SHUTTER, Choke
(ELECTRIC)SHUTTER, Choke
(ELECTRIC) -
201399-8665 SHUTTER, Choke
(MANUAL)SHUTTER, Choke
(MANUAL) -
21N.S.S. Not Sold Separate, CHOKE SHUTTER (TILLOTSON #25B-312)Not Sold Separate, CHOKE SHUTTER (TILLOTSON #25B-312)
-
22NSS NOT SOLD SEPARATE, SCREW, IDLE MIXTURENOT SOLD SEPARATE, SCREW, IDLE MIXTURE
-
23NSS NOT SOLD SEPARATE, SPRING, IDLE MIXTURE SCREWNOT SOLD SEPARATE, SPRING, IDLE MIXTURE SCREW
-
24NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGMNOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM
-
25NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
261399-5129 BODY, FUEL PUMPBODY, FUEL PUMP
-
27NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP ATTACHINGNOT SOLD SEPARATE, GASKET, FUEL PUMP ATTACHING
-
28NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
291399-5131 BODY, STRAINERBODY, STRAINER
-
301395-808612 SCREW, STRAINER BODY TO CARBURETORSCREW, STRAINER BODY TO CARBURETOR
-
311399-5758 SCREEN, STRAINERSCREEN, STRAINER
-
321399-5207 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3399941 COVER, INLETCOVER, INLET
-
34NSS NOT SOLD SEPARATE, SCREW, STRAINER COVER TO BODYNOT SOLD SEPARATE, SCREW, STRAINER COVER TO BODY
-
351399-2012 SHAFT, ThrottleSHAFT, Throttle
-
3674371 LEVER, THROTTLE
(UPPER CARBURETOR)LEVER, THROTTLE
(UPPER CARBURETOR) -
368146791 LEVER, THROTTLE
(LOWER CARBURETOR)LEVER, THROTTLE
(LOWER CARBURETOR) -
371395-6027 SCREW, THROTTLE LEVER ATTACHINGSCREW, THROTTLE LEVER ATTACHING
-
38NSS NOT SOLD SEPARATE, IDLE TUBE
(NLA Per Service Bulletin 88-12)NOT SOLD SEPARATE, IDLE TUBE
(NLA Per Service Bulletin 88-12) -
39NSS NOT SOLD SEPARATE, GASKET, IDLE TUBENOT SOLD SEPARATE, GASKET, IDLE TUBE
-
401399-6225 SHUTTER, ThrottleSHUTTER, Throttle
-
41NSS NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER TO THROTTLE SHAFTNOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT
-
4227-757911 GASKETGASKET
-
4311-64809 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
-1399-5198 GASKET SETGASKET SET
-
-1399-51991 REPAIR PARTS KIT
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowREPAIR PARTS KIT
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
-1399-51991 REPAIR PARTS KIT
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpREPAIR PARTS KIT
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
-1399-5137 DIAPHRAGM/GASKET KITDIAPHRAGM/GASKET KIT
