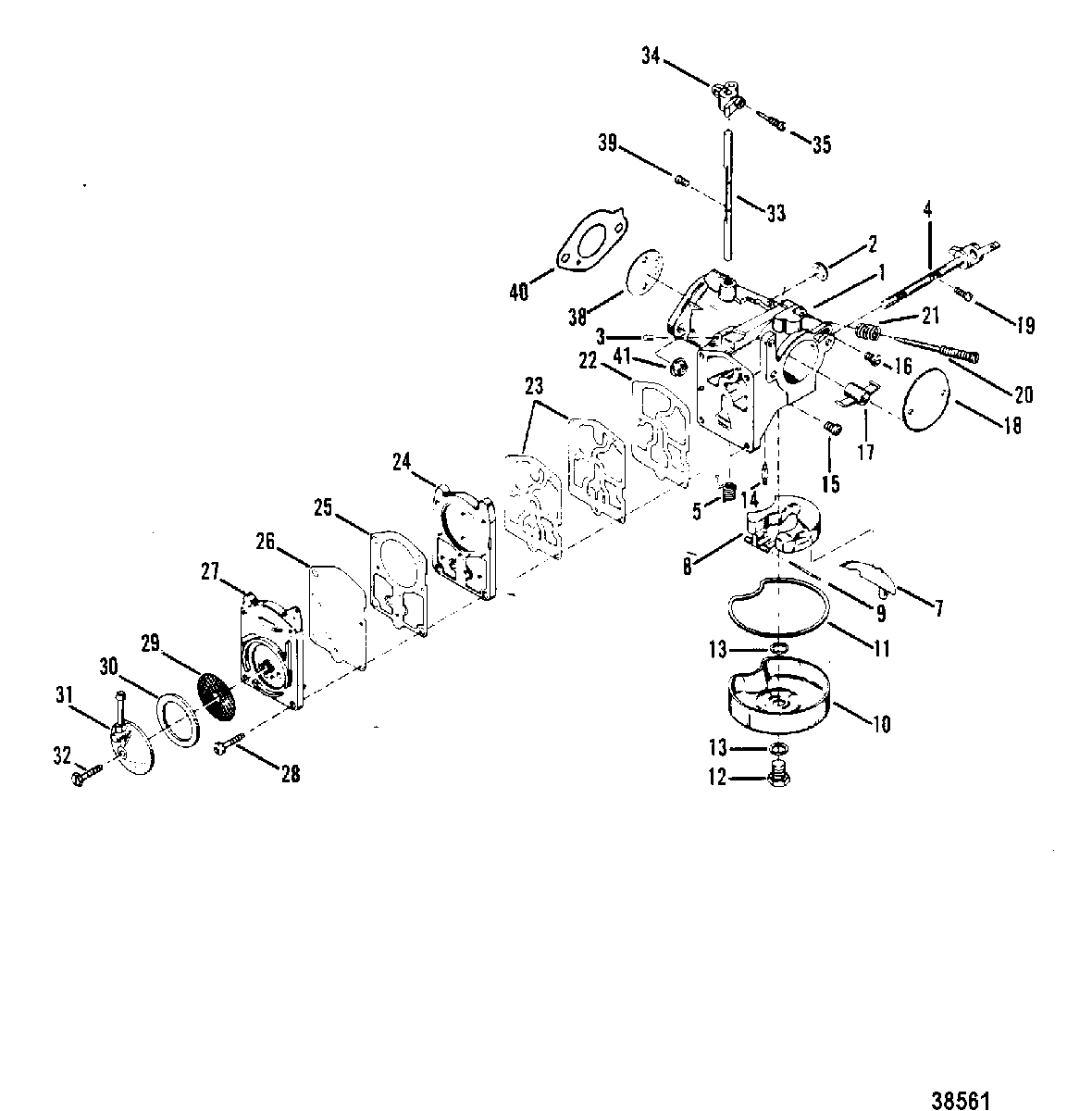

CARBURETOR ASSEMBLY(WALBRO) для Mariner - 45 (4 CYL.) 8063985 & Up
-
№АртикулНазвание
-
11367-6517A61 CARBURETOR ASSEMBLY
(UPPER)CARBURETOR ASSEMBLY
(UPPER) -
11367-6517A62 CARBURETOR ASSEMBLY
(LOWER)CARBURETOR ASSEMBLY
(LOWER) -
2NSS NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)
-
3NSS NOT SOLD SEPARATE, PLUG, BODY CHANNELNOT SOLD SEPARATE, PLUG, BODY CHANNEL
-
41395-9296A1 SHAFT ASSEMBLY, ChokeSHAFT ASSEMBLY, Choke
-
5NSS NOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFTNOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFT
-
7814483 BAFFLE, FUEL BOWLBAFFLE, FUEL BOWL
-
81395-9293 FLOATFLOAT
-
9NSS NOT SOLD SEPARATE, PIN, FLOAT RETAININGNOT SOLD SEPARATE, PIN, FLOAT RETAINING
-
101399-5127 BOWL, FuelBOWL, Fuel
-
11NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
121395-9025 SCREW, FUEL BOWL TO CARBURETORSCREW, FUEL BOWL TO CARBURETOR
-
13NSS NOT SOLD SEPARATE, GASKET, FUEL BOWL SCREWNOT SOLD SEPARATE, GASKET, FUEL BOWL SCREW
-
141395-9022 NEEDLE AND SPRING, InletNEEDLE AND SPRING, Inlet
-
151399-1457 JET, MAIN FUEL (.057)JET, MAIN FUEL (.057)
-
161395-7335 JET, (.098), ECONOMIZERJET, (.098), ECONOMIZER
-
1764677 VENTURIVENTURI
-
181399-8665 SHUTTER, ChokeSHUTTER, Choke
-
19NSS NOT SOLD SEPARATE, SCREW, CHOKE SHUTTER TO CHOKE SHAFTNOT SOLD SEPARATE, SCREW, CHOKE SHUTTER TO CHOKE SHAFT
-
20NSS NOT SOLD SEPARATE, SCREW, IDLE MIXTURENOT SOLD SEPARATE, SCREW, IDLE MIXTURE
-
21NSS NOT SOLD SEPARATE, SPRING, IDLE MIXTURE SCREWNOT SOLD SEPARATE, SPRING, IDLE MIXTURE SCREW
-
22NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGMNOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM
-
23NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
241399-5129 BODY, FUEL PUMPBODY, FUEL PUMP
-
25NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP ATTACHINGNOT SOLD SEPARATE, GASKET, FUEL PUMP ATTACHING
-
26NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
271399-5131 BODY, STRAINERBODY, STRAINER
-
281395-808612 SCREW, STRAINER BODY TO CARBURETORSCREW, STRAINER BODY TO CARBURETOR
-
291399-5758 SCREEN, STRAINERSCREEN, STRAINER
-
301399-5207 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3199941 COVER, INLETCOVER, INLET
-
32NSS NOT SOLD SEPARATE, SCREW, STRAINER COVER TO BODYNOT SOLD SEPARATE, SCREW, STRAINER COVER TO BODY
-
331395-9020 SHAFT, Throttle
(UPPER CARBURETOR)SHAFT, Throttle
(UPPER CARBURETOR) -
331395-9656 SHAFT, Throttle
(LOWER CARBURETOR)SHAFT, Throttle
(LOWER CARBURETOR) -
3492880 LEVER, THROTTLER
(UPPER CARBURETOR)LEVER, THROTTLER
(UPPER CARBURETOR) -
348146791 LEVER, THROTTLE
(LOWER CARBURETOR)LEVER, THROTTLE
(LOWER CARBURETOR) -
351395-6027 SCREW, THROTTLE LEVER
(UPPER CARBURETOR)SCREW, THROTTLE LEVER
(UPPER CARBURETOR) -
351395-6027 SCREW, THROTTLE LEVER
(LOWER CARBURETOR)SCREW, THROTTLE LEVER
(LOWER CARBURETOR) -
381395-9021 SHUTTER, ThrottleSHUTTER, Throttle
-
39NSS NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER TO THROTTLE SHAFTNOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT
-
4027-757911 GASKETGASKET
-
4111-64809 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
-1395-9023 REPAIR PARTS KITREPAIR PARTS KIT
-
-1395-9024 DIAPHRAGM/GASKET KITDIAPHRAGM/GASKET KIT
