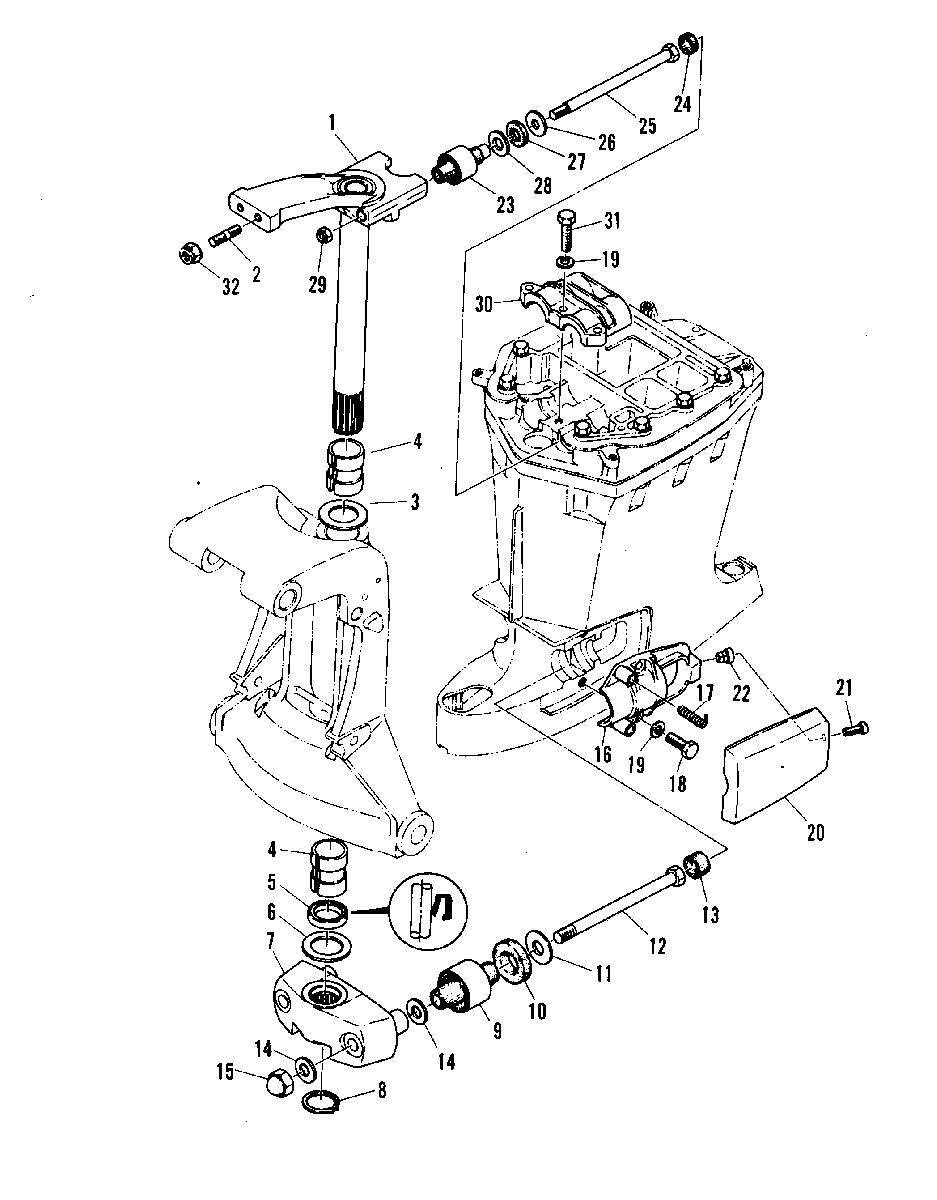

MOUNTING SYSTEM для Mariner - 48 670-02641 THRU 002160
-
№АртикулНазвание
-
119144M ARM & SHAFT ASS'Y (SHORT SHAFT)ARM & SHAFT ASS'Y (SHORT SHAFT)
-
119145T ARM & SHAFT ASS'Y (LONG SHAFT)ARM & SHAFT ASS'Y (LONG SHAFT)
-
216-81742M STUD, STEERING PLATESTUD, STEERING PLATE
-
312-19146M WASHERWASHER
-
423-81955M BUSHINGBUSHING
-
526-98950M OIL SEAL, STEERING SHAFTOIL SEAL, STEERING SHAFT
-
612-81839M WASHERWASHER
-
781432M HOUSING, LOWER MOUNTHOUSING, LOWER MOUNT
-
853-82325M SNAP RINGSNAP RING
-
981435M HOUSING MOUNT, LOWERHOUSING MOUNT, LOWER
-
1012-81860M WASHERWASHER
-
1112-83915M WASHERWASHER
-
1210-81717M BOLTBOLT
-
1383130M BUMPERBUMPER
-
1412-84429M WASHERWASHER
-
1511-82397M NUTNUT
-
1681433M RETAINER, LOWER MOUNTRETAINER, LOWER MOUNT
-
1724-82087M SPRING, COMPRESSIONSPRING, COMPRESSION
-
1810-43106M BOLTBOLT
-
1913-82215M WASHER, LOCKWASHER, LOCK
-
2081434M COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2110-83870M SCREWSCREW
-
2211-81779M NUTNUT
-
2381676T HOUSING MOUNT, UPPERHOUSING MOUNT, UPPER
-
2481431M BUMPERBUMPER
-
2510-81714M BOLTBOLT
-
2612-81825M WASHERWASHER
-
2712-83702M WASHERWASHER
-
2812-81803M WASHERWASHER
-
2911-81783M NUTNUT
-
3081429M RETAINER, UPPER MOUNTRETAINER, UPPER MOUNT
-
3110-82442M BOLTBOLT
-
3211-81785M NUTNUT
