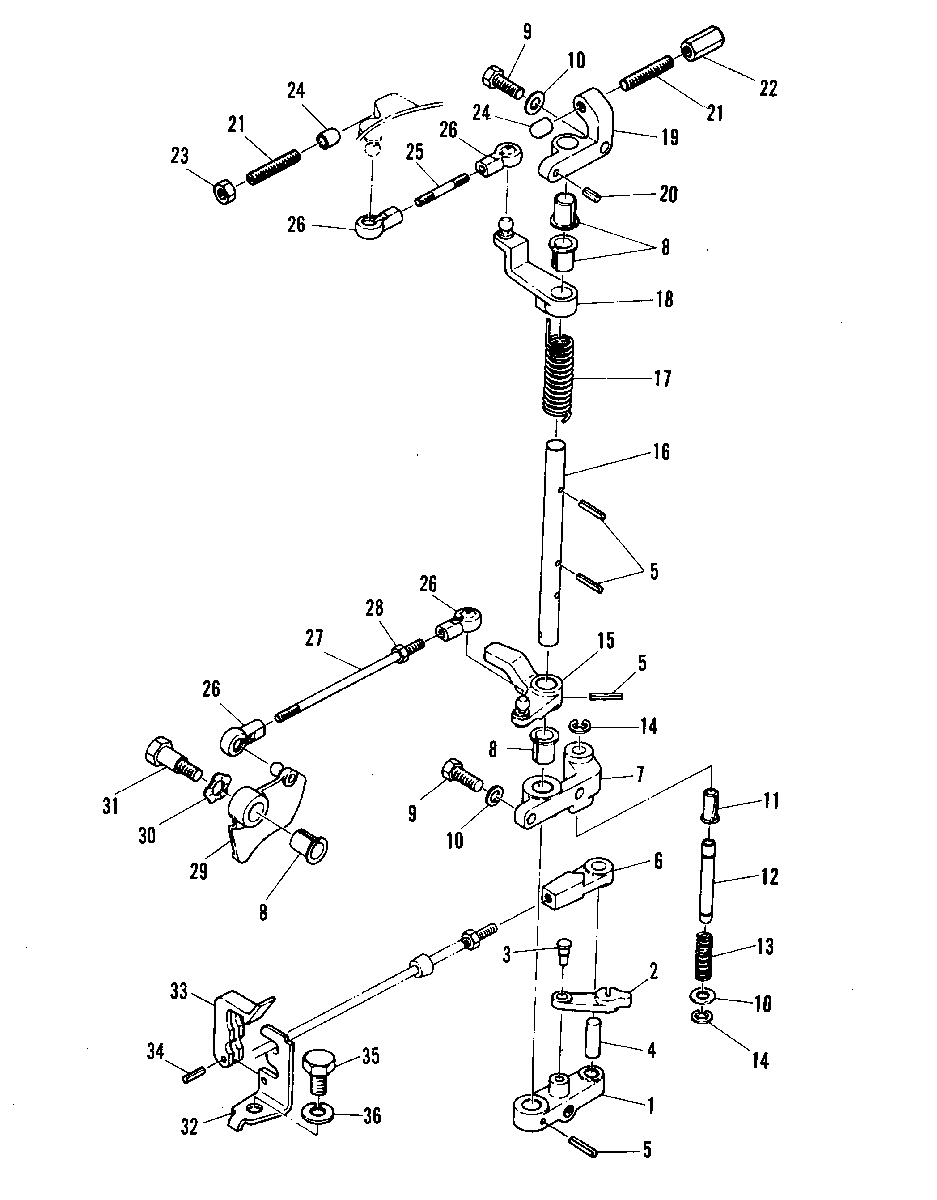

THROTTLE CONTROL для Mariner - 48 670-02641 THRU 002160
-
№АртикулНазвание
-
181345M LEVER, C.D.I. CONTROLLEVER, C.D.I. CONTROL
-
281341M STOPPER, FREE ACCEL - LINKSTOPPER, FREE ACCEL - LINK
-
317-82976M PINPIN
-
417-82367M PIN, DOWELPIN, DOWEL
-
517-82149M PIN, ROLLPIN, ROLL
-
681480M CLEVIS, THROTTLE CABLECLEVIS, THROTTLE CABLE
-
781350M BRACKET, SHAFTBRACKET, SHAFT
-
823-81946M BUSHINGBUSHING
-
910-82423M BOLTBOLT
-
1012-82214M WASHER, LOCKWASHER, LOCK
-
1123-41311M BUSHINGBUSHING
-
1281403M STOP, SHAFT BRACKETSTOP, SHAFT BRACKET
-
1324-82074M SPRING, COMPRESSIONSPRING, COMPRESSION
-
1453-82330M SNAP RINGSNAP RING
-
1581346M LEVER, C.D.I. CONTROLLEVER, C.D.I. CONTROL
-
1681347M SHAFT, LINK CONNECTINGSHAFT, LINK CONNECTING
-
1724-82113M SPRING, TORSIONSPRING, TORSION
-
1881344M LEVER, C.D.I. CONTROLLEVER, C.D.I. CONTROL
-
1981349M BRACKET, SHAFT - UPPERBRACKET, SHAFT - UPPER
-
2017-82154M PIN, ROLLPIN, ROLL
-
2110-83050M SCREWSCREW
-
2211-81764M NUTNUT
-
2311-82390M NUTNUT
-
2481415M CAPCAP
-
2581348M ROD, CONTROLROD, CONTROL
-
2616715M CLEVISCLEVIS
-
2781333M ROD, LINKROD, LINK
-
2811-82388M NUTNUT
-
2981334M CAMCAM
-
3013-81868M WASHER, WAVEWASHER, WAVE
-
3110-81713M BOLTBOLT
-
3281483M BRACKET, REMOTE CONTROLBRACKET, REMOTE CONTROL
-
3381484M CLAMP, CABLECLAMP, CABLE
-
3417-82146M PIN, ROLLPIN, ROLL
-
3510-82437M BOLTBOLT
-
3613-82215M WASHER, LOCKWASHER, LOCK
