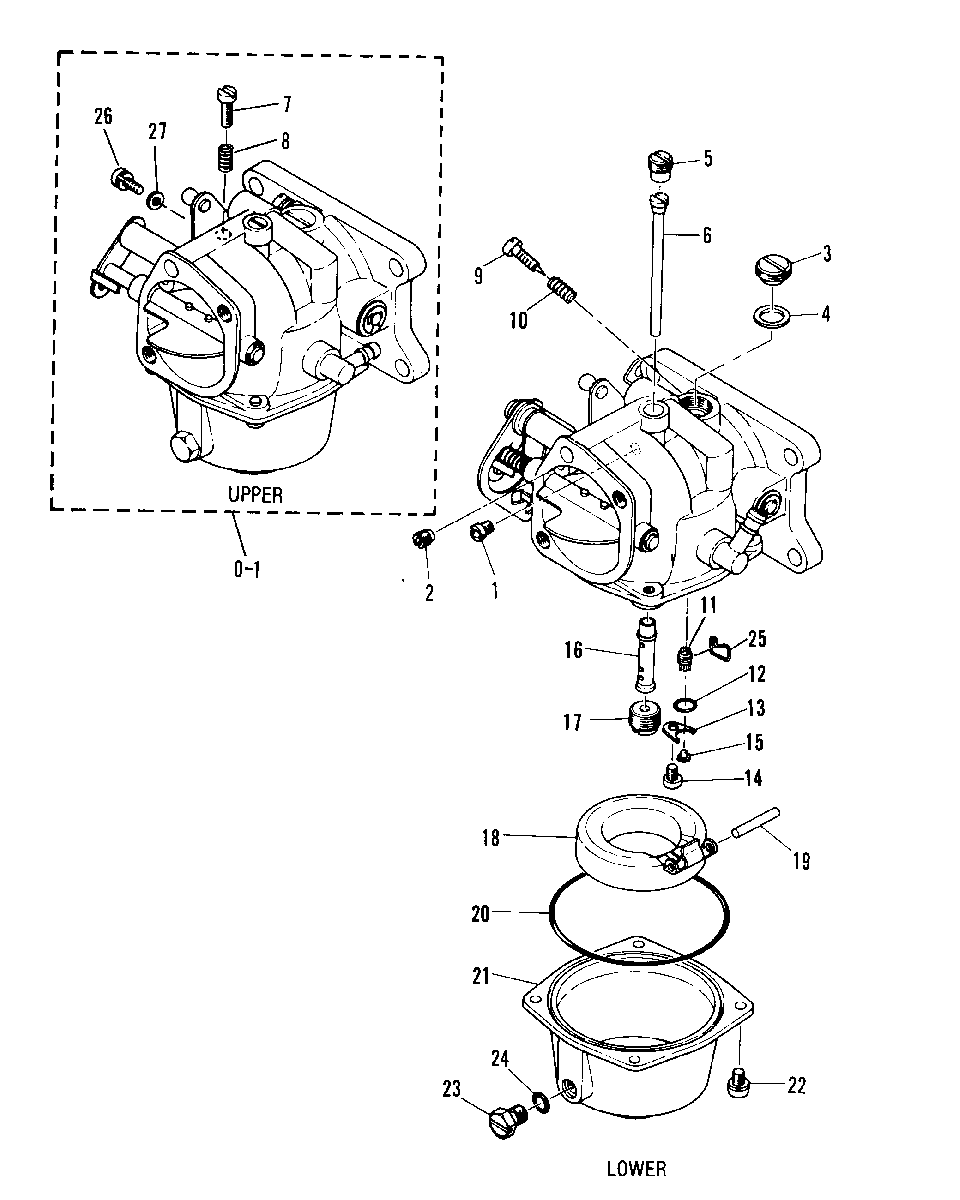

CARBURETOR для Mariner - 48 670-34581 THRU 311995
-
№АртикулНазвание
-
0-11383-6952M CARBURETOR ASS'Y (UPPER)CARBURETOR ASS'Y (UPPER)
-
0-21383-6938M CARBURETOR ASS'Y (LOWER)CARBURETOR ASS'Y (LOWER)
-
181289M JET, PILOT AIR (#105)JET, PILOT AIR (#105)
-
281286M JET, MAIN AIR (#160)JET, MAIN AIR (#160)
-
310-81292M SCREW, PLUGSCREW, PLUG
-
412-81701M WASHERWASHER
-
510-81279M SCREW, PLUGSCREW, PLUG
-
684441M JET, PILOT (#80)JET, PILOT (#80)
-
681282M JET, PILOT (#92)JET, PILOT (#92)
-
710-81277M SCREW, THROTTLE (UPPER)SCREW, THROTTLE (UPPER)
-
824-82080M SPRING, COMPRESSION (UPPER)SPRING, COMPRESSION (UPPER)
-
910-81281M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1024-82073M SPRING, COMPRESSIONSPRING, COMPRESSION
-
1182780M VALVE SEAT ASS'YVALVE SEAT ASS'Y
-
1225-82261M O-RING, VALVEO-RING, VALVE
-
1380026M RETAINER, VALVE SEATRETAINER, VALVE SEAT
-
1410-82499M SCREWSCREW
-
1517-92639M PIN, VALVEPIN, VALVE
-
1681287M NOZZLE, MAINNOZZLE, MAIN
-
1781284M JET, MAIN (#185)JET, MAIN (#185)
-
1897848M FLOATFLOAT
-
1917-81278M PIN, FLOATPIN, FLOAT
-
2025-82288M O-RINGO-RING
-
2181290M BOWL, FLOATBOWL, FLOAT
-
2210-81758M SCREW W/WASHERSCREW W/WASHER
-
2310-81293M SCREW, DRAINSCREW, DRAIN
-
2425-81695M O-RINGO-RING
-
2554-8M0120624 CLIPCLIP
-
2610-83371M SCREW W/WASHER (UPPER)SCREW W/WASHER (UPPER)
-
2712-83372M WASHER (UPPER)WASHER (UPPER)
-
2784419M REPAIR KIT, CARBURETORREPAIR KIT, CARBURETOR
