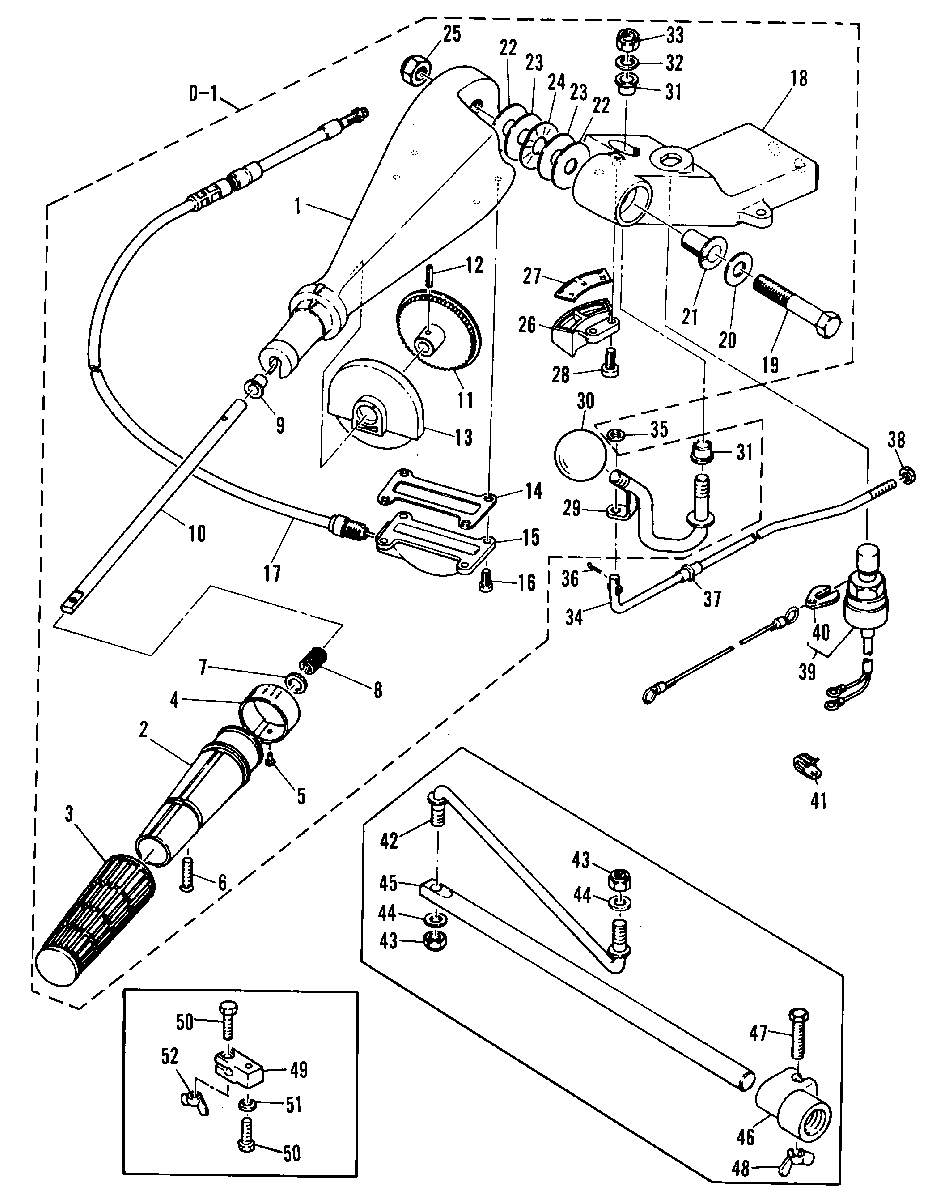

STEERING HANDLE для Mariner - 48 670-34581 THRU 311995
-
№АртикулНазвание
-
0-192680M STEERING HANDLE ASS'YSTEERING HANDLE ASS'Y
-
182553M ARM, STEERINGARM, STEERING
-
281585M HANDLE, THROTTLEHANDLE, THROTTLE
-
380509M GRIP, THROTTLE HANDLEGRIP, THROTTLE HANDLE
-
498947M INDICATOR, THROTTLEINDICATOR, THROTTLE
-
517-81907M RIVETRIVET
-
610-811916M SCREWSCREW
-
712-82220M WASHERWASHER
-
824-82095M SPRING, THROTTLE SHAFTSPRING, THROTTLE SHAFT
-
923-81945M BUSHINGBUSHING
-
1081351M SHAFT, THROTTLESHAFT, THROTTLE
-
1181357T CAM, THROTTLECAM, THROTTLE
-
1217-82152M PIN, ROLLPIN, ROLL
-
1381355M HOUSING, THROTTLE CAMHOUSING, THROTTLE CAM
-
1427-81353M GASKET, THROTTLE CAM COVERGASKET, THROTTLE CAM COVER
-
1581354M COVER, THROTTLE CAMCOVER, THROTTLE CAM
-
1610-82495M SCREWSCREW
-
1781329M THROTTLE CABLETHROTTLE CABLE
-
1883148M BRACKET, STEERINGBRACKET, STEERING
-
1910-81710M BOLTBOLT
-
2012-82221M WASHERWASHER
-
2123-81950M BUSHINGBUSHING
-
2212-81853M WASHERWASHER
-
2312-81815M WASHERWASHER
-
2413-81870M WASHER, WAVEWASHER, WAVE
-
2511-81786M NUT, ARM BOLTNUT, ARM BOLT
-
2681402M BRACKET, INDICATORBRACKET, INDICATOR
-
2781414M INDICATOR, F-N-RINDICATOR, F-N-R
-
2810-83870M SCREWSCREW
-
2981411M HANDLE, GEAR SHIFTHANDLE, GEAR SHIFT
-
3081413M KNOB, SHIFT CONTROLKNOB, SHIFT CONTROL
-
3123-81946M BUSHINGBUSHING
-
3212-81804M WASHERWASHER
-
3311-81785M NUTNUT
-
3481358M ROD, MANUAL SHIFTROD, MANUAL SHIFT
-
3512-82214M WASHERWASHER
-
3618-84301M PIN, COTTERPIN, COTTER
-
3723-81943M BUSHINGBUSHING
-
3811-82920M NUT, CABLE ENDNUT, CABLE END
-
3987-98955M KILL SWITCH ASS'YKILL SWITCH ASS'Y
-
4097756M STOPPERSTOPPER
-
4154-82041M CLAMP, WIRECLAMP, WIRE
-
4241848M ROD, STEERING LINK (OPTIONAL PARTS)ROD, STEERING LINK (OPTIONAL PARTS)
-
4311-84295M NUT (OPTIONAL PARTS)NUT (OPTIONAL PARTS)
-
4412-82217M WASHER (OPTIONAL PARTS)WASHER (OPTIONAL PARTS)
-
4583705M SHAFT, FRICTION (OPTIONAL PARTS)SHAFT, FRICTION (OPTIONAL PARTS)
-
4683706M PIECE, FRICTION (OPTIONAL PARTS)PIECE, FRICTION (OPTIONAL PARTS)
-
4710-83285M BOLT (OPTIONAL PARTS)BOLT (OPTIONAL PARTS)
-
4811-82703M NUT, WING (OPTIONAL PARTS)NUT, WING (OPTIONAL PARTS)
-
4919173M PIECE, FRICTION (THROTTLE) (OPTIONAL PARTS)PIECE, FRICTION (THROTTLE) (OPTIONAL PARTS)
-
5010-82405M BOLT (OPTIONAL PARTS)BOLT (OPTIONAL PARTS)
-
5112-82214M WASHER (OPTIONAL PARTS)WASHER (OPTIONAL PARTS)
-
5211-82703M NUT, WING (OPTIONAL PARTS)NUT, WING (OPTIONAL PARTS)
