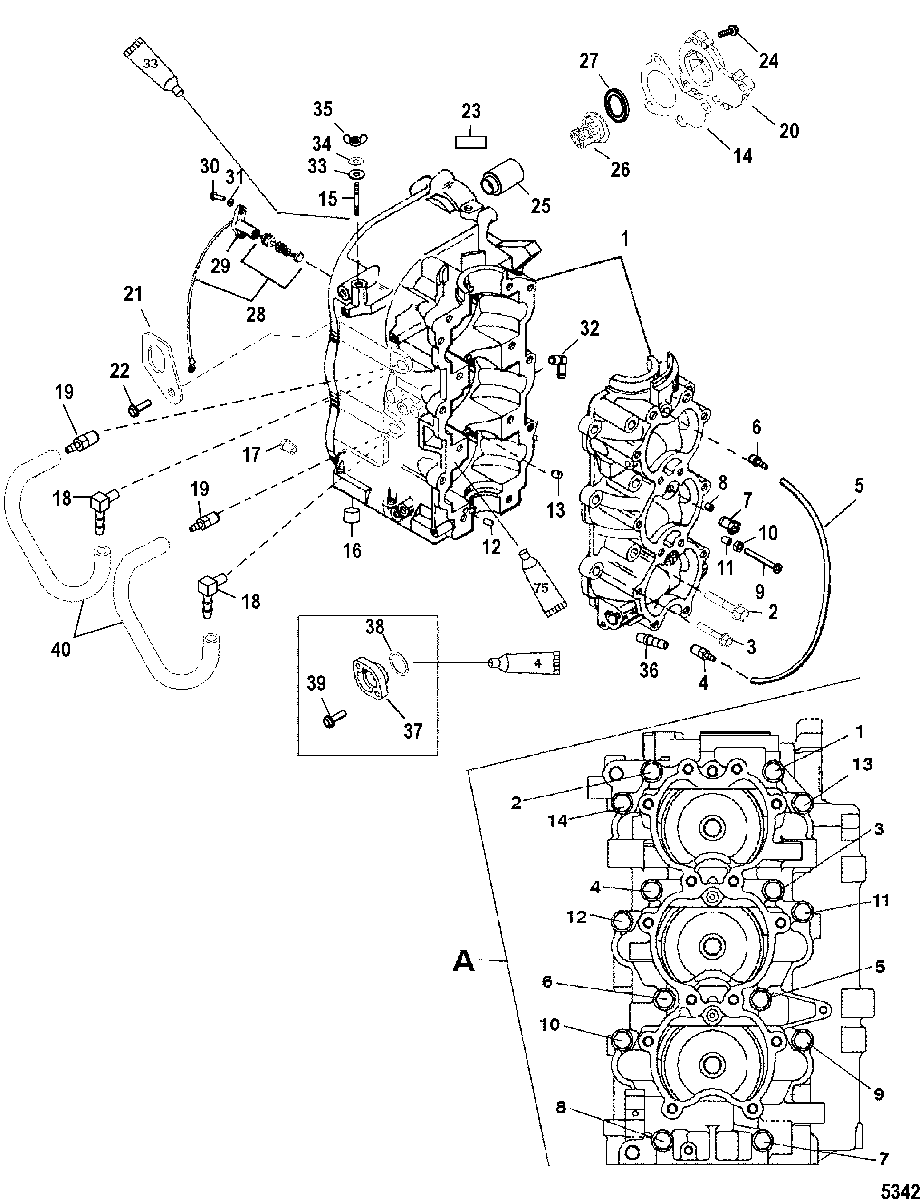

Cylinder Block and Crankcase для Mariner - 50 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
12801-827953T7 CYLINDER BLOCKCYLINDER BLOCK
-
210-81742780 SCREW, (M8 x 80)SCREW, (M8 x 80)
-
310-81742730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
421-426585 CHECK VALVECHECK VALVE
-
532-892024122 TUBING, (240.00 Inches Bulk) (Cut to 15.00 Inch Length)TUBING, (240.00 Inches Bulk) (Cut to 15.00 Inch Length)
-
621-426232 CHECK VALVE (Press-In)CHECK VALVE (Press-In)
-
7812888A2 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
821-42657A4 CHECK VALVECHECK VALVE
-
910-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
1011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1142942 CAPCAP
-
1217-43044 PIN, Dowel - Without Hole (.375 x .625) (Locating)PIN, Dowel - Without Hole (.375 x .625) (Locating)
-
1317-8M0084653 PIN (Bearing Race)PIN (Bearing Race)
-
1427-827284 GASKETGASKET
-
1516-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
1622-185981 PLUG, Pipe (.375-18)PLUG, Pipe (.375-18)
-
1722-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
1822-19725 ELBOWELBOW
-
1921-426585 CHECK VALVECHECK VALVE
-
20827251A1 COVERCOVER
-
21850897 LIFTING EYE
(Manual)LIFTING EYE
(Manual) -
2210-40011149 SCREW, (M8 x 25) Stainless Steel
(Manual)SCREW, (M8 x 25) Stainless Steel
(Manual) -
23NSS NOT SOLD SEPARATE
(Decal-Serialization)NOT SOLD SEPARATE
(Decal-Serialization) -
2410-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
25889735 CARRIERCARRIER
-
26850055001 THERMOSTAT, 43A°C (110A°F)THERMOSTAT, 43A°C (110A°F)
-
2726-854639001 SEALSEAL
-
28787992 SENDER, TemperatureSENDER, Temperature
-
29889733 RETAINERRETAINER
-
3010-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
3112-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
3222-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
3312-49221 WASHER, (.187 x .500 x .062) Neoprene
(Electric)WASHER, (.187 x .500 x .062) Neoprene
(Electric) -
3412-69056 WASHER, (.255 x .620 x .030) Stainless Steel
(Electric)WASHER, (.255 x .620 x .030) Stainless Steel
(Electric) -
3511-816872 WING NUT
(Electric)WING NUT
(Electric) -
3622-56759 FITTING, Barbed
(Electric)FITTING, Barbed
(Electric) -
378129962 COVER
(Manual)COVER
(Manual) -
3825-48462 O-RING, (.614 x .070)
(Manual)O-RING, (.614 x .070)
(Manual) -
3910-40011108 SCREW, (M5 x 20) Stainless Steel
(Manual)SCREW, (M5 x 20) Stainless Steel
(Manual) -
4032-892024122 TUBING, (20.00 Feet Bulk) (Cut to 5.50 Inch Length)TUBING, (20.00 Feet Bulk) (Cut to 5.50 Inch Length)
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-828553A97 GASKET SETGASKET SET
