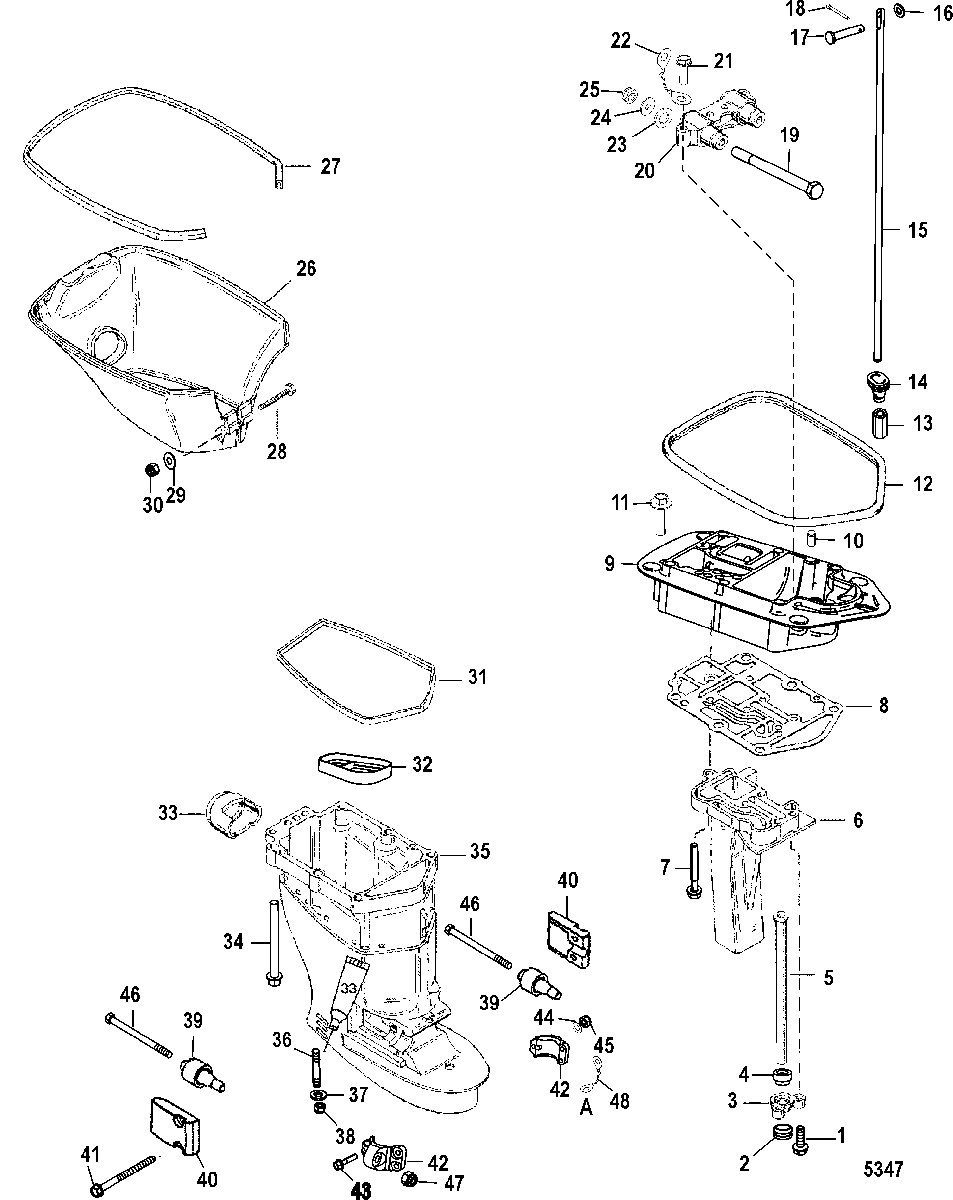

Driveshaft Housing/Exhaust Plate для Mariner - 50 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
110-40011155 SCREW, (M8 x 55) Stainless SteelSCREW, (M8 x 55) Stainless Steel
-
225-93221002 GROMMETGROMMET
-
399019 CLAMPCLAMP
-
442941001 SEAL, Water TubeSEAL, Water Tube
-
532-8M0042795 TUBE, Water
(Short)TUBE, Water
(Short) -
532-8M0042794 TUBE, Water
(Long)TUBE, Water
(Long) -
687917217T TUBE, ExhaustTUBE, Exhaust
-
710-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
827-8M0000821 GASKET, Driveshaft HousingGASKET, Driveshaft Housing
-
9821439T4 ADAPTOR PLATEADAPTOR PLATE
-
1017-23784 PIN, DowelPIN, Dowel
-
1110-4010875 SCREW, (M10 x 75) Hex Flange - Stainless SteelSCREW, (M10 x 75) Hex Flange - Stainless Steel
-
128M0043148 SEAL, Bottom CowlSEAL, Bottom Cowl
-
13822419 COUPLERCOUPLER
-
1425-822408001 GROMMETGROMMET
-
15880042 SHIFT SHAFT (Upper)SHIFT SHAFT (Upper)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1717-822417 PINPIN
-
1818-210711 COTTER PINCOTTER PIN
-
198M0000520 SCREW, (M12 x 162)SCREW, (M12 x 162)
-
201400-8M4501487 MOUNTMOUNT
-
2110-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
2288238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
2312-32834 WASHER, NeopreneWASHER, Neoprene
-
2412-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2511-896963 NUT, (M12)NUT, (M12)
-
26828466A1 TRIM COVER
(Black)TRIM COVER
(Black) -
278M0043155 BUMPERBUMPER
-
2810-826173 SCREW, (M5 x .8 x 60)SCREW, (M5 x .8 x 60)
-
2912-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
3011-401365 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
318M0043170 BUMPERBUMPER
-
32822395001 SEALSEAL
-
33828495001 SEAL, Idle ReliefSEAL, Idle Relief
-
3410-817430110 SCREW, (M10 x 110)SCREW, (M10 x 110)
-
353531-821447T10 HOUSING, Driveshaft
(Black) (Long)HOUSING, Driveshaft
(Black) (Long) -
353525-821841T7 HOUSING, Driveshaft
(Black) (Short) (Jet)HOUSING, Driveshaft
(Black) (Short) (Jet) -
3616-823984 STUD, (M10 x 50)STUD, (M10 x 50)
-
3712-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
3811-40140 NUT, (M10)NUT, (M10)
-
398284842 MOUNT (Lower)MOUNT (Lower)
-
40828485F1 COVER, Mount
(Black)COVER, Mount
(Black) -
4110-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
42850030F1 YOKE, Bottom
(Black)YOKE, Bottom
(Black) -
4310-8M0038368 SCREW, (M8 x 40) Stainless SteelSCREW, (M8 x 40) Stainless Steel
-
4412-36001 WASHERWASHER
-
4511-401378 NUT, (M8)NUT, (M8)
-
4610-828556 SCREW, (M12 x 125)SCREW, (M12 x 125)
-
4711-896963 NUT, (M12)NUT, (M12)
-
4888238A11 CABLE ASSEMBLY (A = To Portside of Swivel Bracket)CABLE ASSEMBLY (A = To Portside of Swivel Bracket)
-
-27-828553A97 GASKET SETGASKET SET
