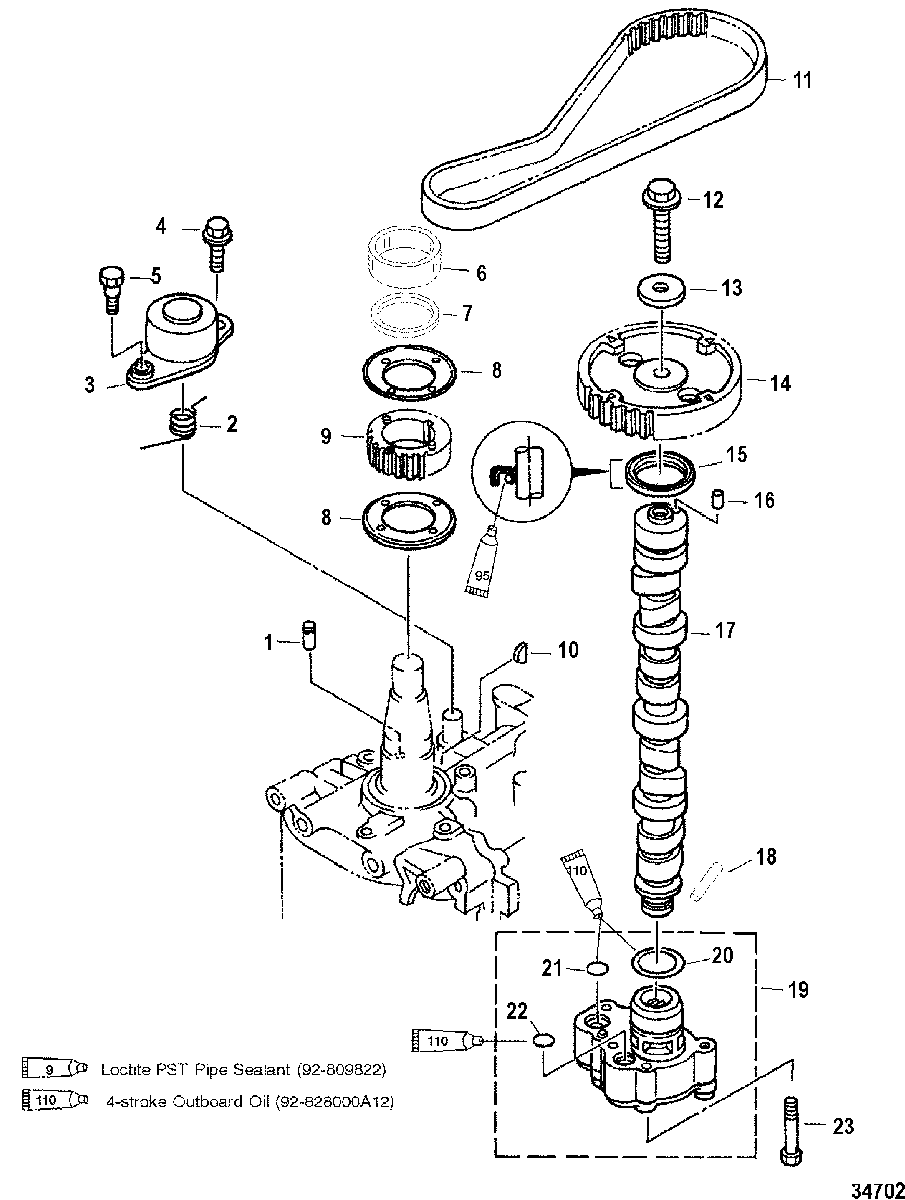

Camshaft/Oil Pump для Mariner - 50 (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
117-825087 PIN, Included with Cylinder BlockPIN, Included with Cylinder Block
-
224-825088 SPRINGSPRING
-
3824796A1 TENSIONER ASSEMBLYTENSIONER ASSEMBLY
-
410-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
510-826165 SCREWSCREW
-
623-850522 SPACERSPACER
-
7834838 LOAD RINGLOAD RING
-
812-825082 WASHERWASHER
-
9825083T GEAR, DriveGEAR, Drive
-
1028-893761 KEYKEY
-
11825109 BELTBELT
-
1210-82761140 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
1312-4002319 WASHERWASHER
-
14825108 GEAR, DrivenGEAR, Driven
-
1526-825048 SEAL, OilSEAL, Oil
-
1617-825956 PIN, DowelPIN, Dowel
-
172407-8250471 CAMSHAFTCAMSHAFT
-
1817-826149 PINPIN
-
19825058A1 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
2025-826152 O-RINGO-RING
-
2125-826154 O-RINGO-RING
-
2225-826153 O-RINGO-RING
-
2310-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
-27-832013A96 GASKET SETGASKET SET
-
-61-822775T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-822775T98 POWERHEAD ASSEMBLY, BigfootPOWERHEAD ASSEMBLY, Bigfoot
-
-825034A17 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
