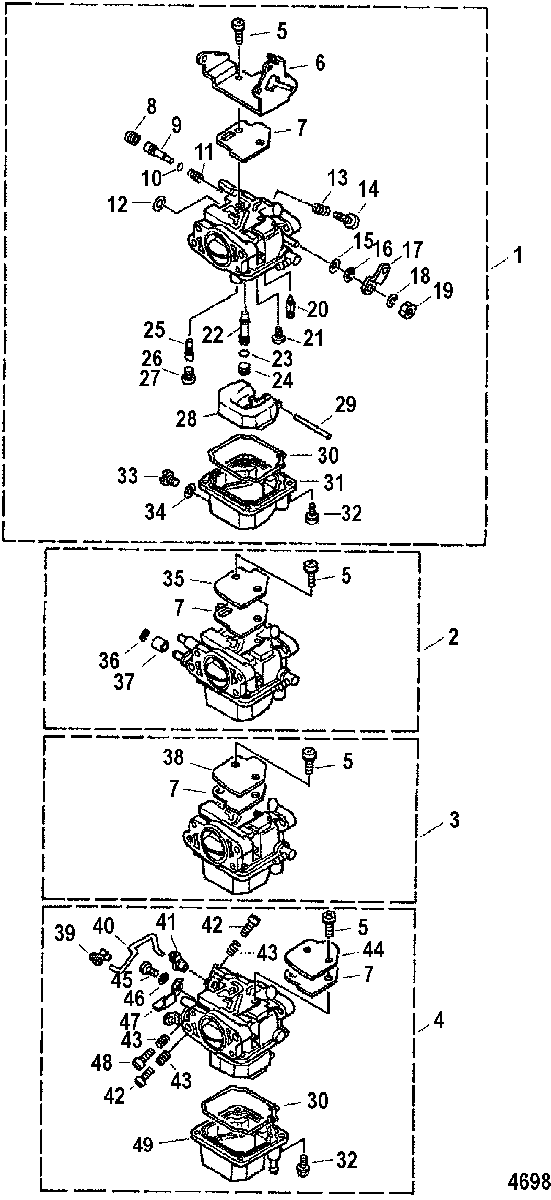

Carburetor(45) для Mariner - 50 (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
13319-825073A6 CARBURETOR (1)CARBURETOR (1)
-
23319-825073A7 CARBURETOR (2)CARBURETOR (2)
-
33319-825073A8 CARBURETOR (3)CARBURETOR (3)
-
43319-825073T9 CARBURETOR (4)CARBURETOR (4)
-
510-809571 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
6809572 COVER (1)COVER (1)
-
7809573 GASKETGASKET
-
826-827737 SEAL, RubberSEAL, Rubber
-
910-8095784 SCREW SET, PilotSCREW SET, Pilot
-
1025-809124M O-RINGO-RING
-
1124-809579 SPRING, Air AdjustingSPRING, Air Adjusting
-
1212-826943M WASHER (1/2/3)WASHER (1/2/3)
-
1324-8095791 SPRING (1/2/3)SPRING (1/2/3)
-
1410-8095781 SCREW, Throttle (1/2/3)SCREW, Throttle (1/2/3)
-
1512-809580 WASHERWASHER
-
1653-94722M RING, RetainingRING, Retaining
-
17809582 LEVER (1)LEVER (1)
-
1813-92515M LOCKWASHER (1)LOCKWASHER (1)
-
1911-809581 NUT (1)NUT (1)
-
208095701 VALVE, NeedleVALVE, Needle
-
2110-8095711 SCREW, (M4 x 5)SCREW, (M4 x 5)
-
228095741 MAIN NOZZLEMAIN NOZZLE
-
2325-11802M O-RINGO-RING
-
24809577 MAIN NOZZLEMAIN NOZZLE
-
258095761 JET, Pilot (#42)JET, Pilot (#42)
-
268095751 JET, Main (#104) (1/2)JET, Main (#104) (1/2)
-
278095752 JET, Main (#103) (3/4)JET, Main (#103) (3/4)
-
28809569 FLOATFLOAT
-
2917-11794M PINPIN
-
3027-809568 GASKETGASKET
-
31809567 BODY (1/2/3)BODY (1/2/3)
-
3210-81758M SCREW, (M4 x 12)SCREW, (M4 x 12)
-
3310-8095783 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
3427-8095681 GASKETGASKET
-
358095721 COVER (2)COVER (2)
-
3653-809584 CLIP (2)CLIP (2)
-
37809585 ROLLER (2)ROLLER (2)
-
388095721 COVER (3)COVER (3)
-
3911829M RETAINER (4)RETAINER (4)
-
40809586 ROD, Starter (4)ROD, Starter (4)
-
41809587 JOINT (4)JOINT (4)
-
4210-8095781 SCREW, Throttle (4)SCREW, Throttle (4)
-
4324-8095791 SPRING (4)SPRING (4)
-
448095721 COVER (4)COVER (4)
-
4510-8095712 SCREW (4)SCREW (4)
-
4612-8095801 WASHER (4)WASHER (4)
-
478095821 LEVER (4)LEVER (4)
-
4810-826931M SCREW (4)SCREW (4)
-
498095671 BODY (4)BODY (4)
-
-809594A1 REPAIR KIT, Carburetor
(One Kit per Carburetor)REPAIR KIT, Carburetor
(One Kit per Carburetor)
