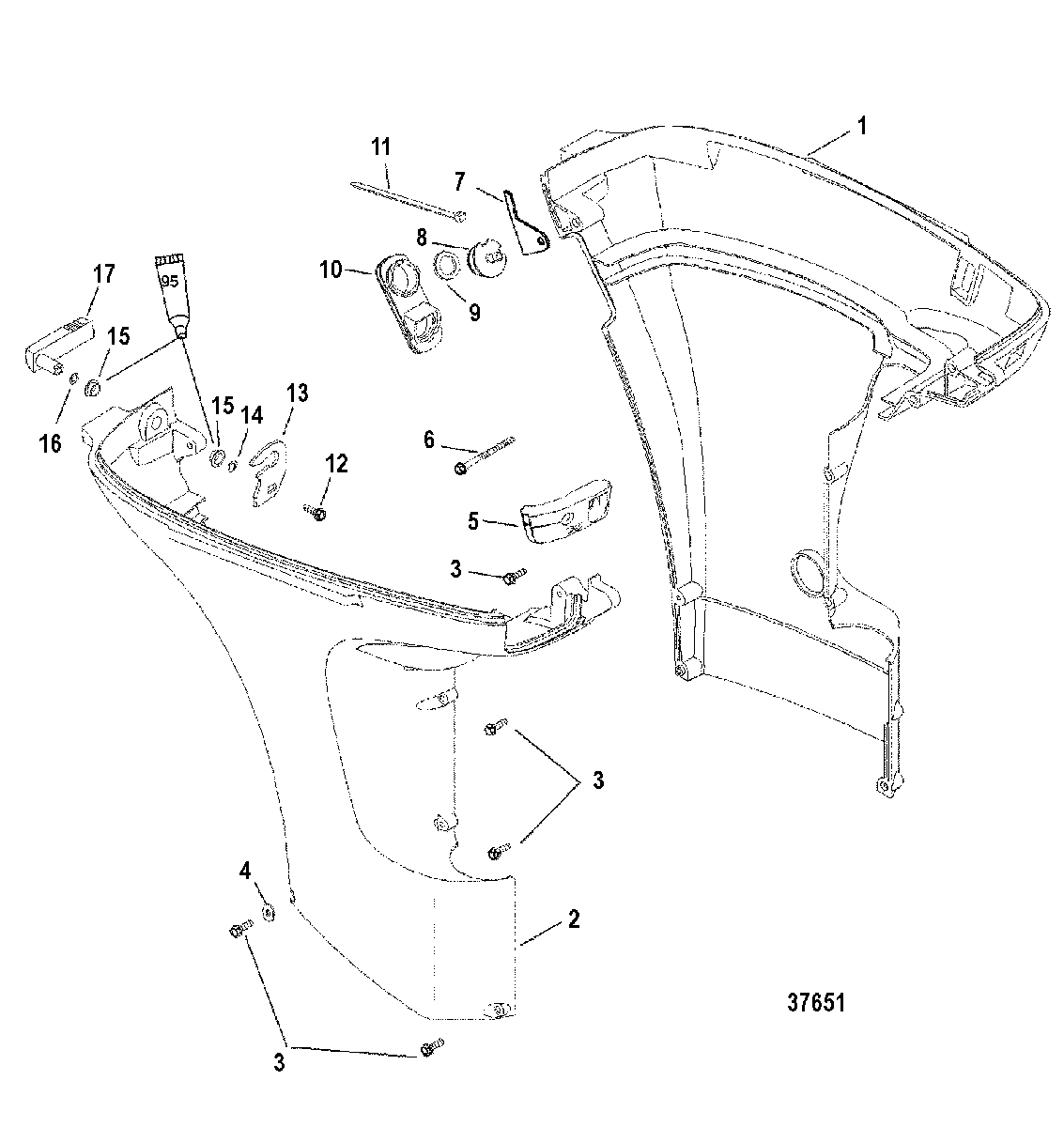

BOTTOM COWL для Mariner - 50 BIGFOOT (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
14020-826277T1 BOTTOM COWL
(BLACK-PORT)BOTTOM COWL
(BLACK-PORT) -
14020-826277T1 BOTTOM COWL
(GRAY-PORT)BOTTOM COWL
(GRAY-PORT) -
24020-826278T7 BOTTOM COWL
(BLACK-STBD.)BOTTOM COWL
(BLACK-STBD.) -
24020-826278T7 BOTTOM COWL
(GRAY-STBD.)BOTTOM COWL
(GRAY-STBD.) -
310-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5825238002 SEALSEAL
-
610-82684460 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
727-855627 GASKETGASKET
-
822-827948 FITTINGFITTING
-
912-855576 WASHERWASHER
-
10826273001 BOOTBOOT
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1210-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
13893766 LATCH HOOKLATCH HOOK
-
1413-12134 WASHER, WaveWASHER, Wave
-
1523-812707 BUSHINGBUSHING
-
1613-12134 WASHER, WaveWASHER, Wave
-
17825782F1 LEVER, Cowl Latch
(BLACK)LEVER, Cowl Latch
(BLACK) -
17825782F1 LEVER, Cowl Latch
(GRAY)LEVER, Cowl Latch
(GRAY)
