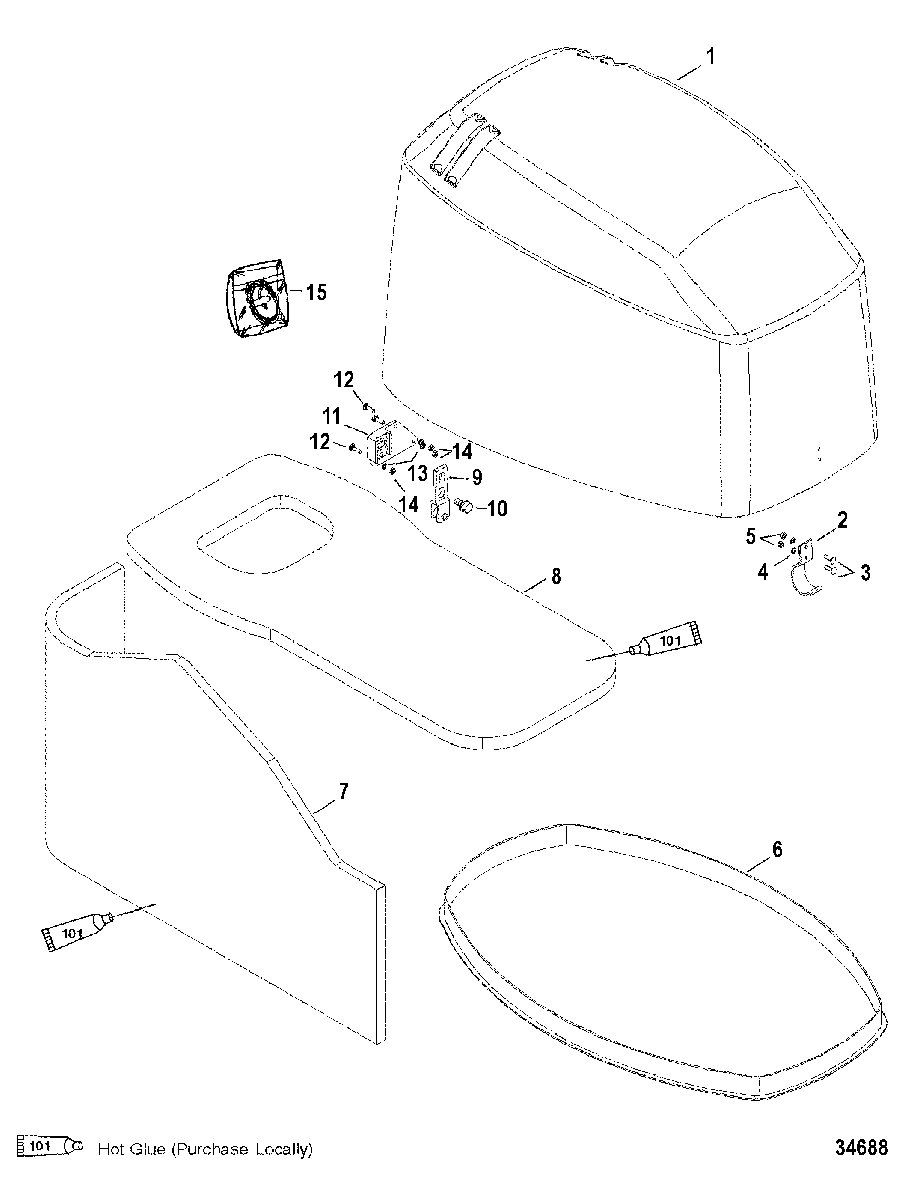

TOP COWL для Mariner - 50 BIGFOOT (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
14019-875300T36 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
14019-825239T4 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
2826291F1 LATCH
(BLACK)LATCH
(BLACK) -
2826291F1 LATCH
(SILVER)LATCH
(SILVER) -
310-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
413-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
511-8237515 NUT, (M4)NUT, (M4)
-
68M0043388 SEALSEAL
-
7825243A03 SOUND BLANKET KITSOUND BLANKET KIT
-
8NSS NOT SOLD SEPARATE, Sound BlanketNOT SOLD SEPARATE, Sound Blanket
-
9893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
1010-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
118M0038412 BRACKETBRACKET
-
1210-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1313-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1411-8237515 NUT, (M4)NUT, (M4)
-
1547341A11 ROPE AND HANDLE KIT, Manual/Emergency StartROPE AND HANDLE KIT, Manual/Emergency Start
