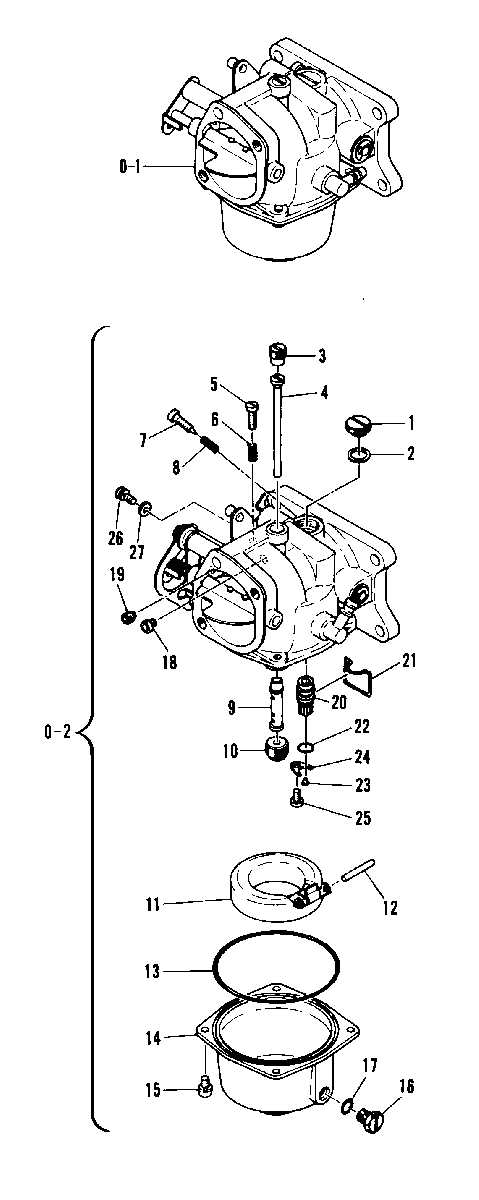

CARBURETOR для Mariner - 60 (2 CYL.) 6F0-000101 AND UP
-
№АртикулНазвание
-
0-11383-8610M CARBURETOR ASS'Y (UPPER)CARBURETOR ASS'Y (UPPER)
-
0-21383-8611M CARBURETOR ASS"Y (LOWER)CARBURETOR ASS"Y (LOWER)
-
110-81292M SCREW, PLUGSCREW, PLUG
-
212-92636M WASHERWASHER
-
310-97080M SCREW, PLUGSCREW, PLUG
-
497845M JET, PILOT (#80)JET, PILOT (#80)
-
510-81281M SCREW, THROTTLE (LOWER)SCREW, THROTTLE (LOWER)
-
624-82073M SPRING, COMPRESSION (LOWER)SPRING, COMPRESSION (LOWER)
-
710-81277M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
824-82080M SPRING, COMPRESSIONSPRING, COMPRESSION
-
997846M NOZZLE, MAINNOZZLE, MAIN
-
1097847M JET, MAIN (#155)JET, MAIN (#155)
-
1197848M FLOATFLOAT
-
1217-81278M PIN, FLOATPIN, FLOAT
-
1325-82288M O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
1481290M FLOAT, BOWLFLOAT, BOWL
-
1510-81758M SCREW W/WASHERSCREW W/WASHER
-
1610-81293M SCREWSCREW
-
1725-94498M O-RINGO-RING
-
1897849M PILOT, AIR JET (#110)PILOT, AIR JET (#110)
-
1998906M JET(#115) (E)JET(#115) (E)
-
2098907M VALVE SEATVALVE SEAT
-
2154-8M0120624 CLIPCLIP
-
2225-82261M O-RINGO-RING
-
2317-98908M PIN, VALVEPIN, VALVE
-
2480026M PLATEPLATE
-
2510-82499M SCREWSCREW
-
2610-97082M SCREW W/WASHER (UPPER)SCREW W/WASHER (UPPER)
-
2712-83372M WASHER (UPPER)WASHER (UPPER)
-
2797759M REPAIR KIT, CARBURETOR (FITS BOTH CARBS)REPAIR KIT, CARBURETOR (FITS BOTH CARBS)
