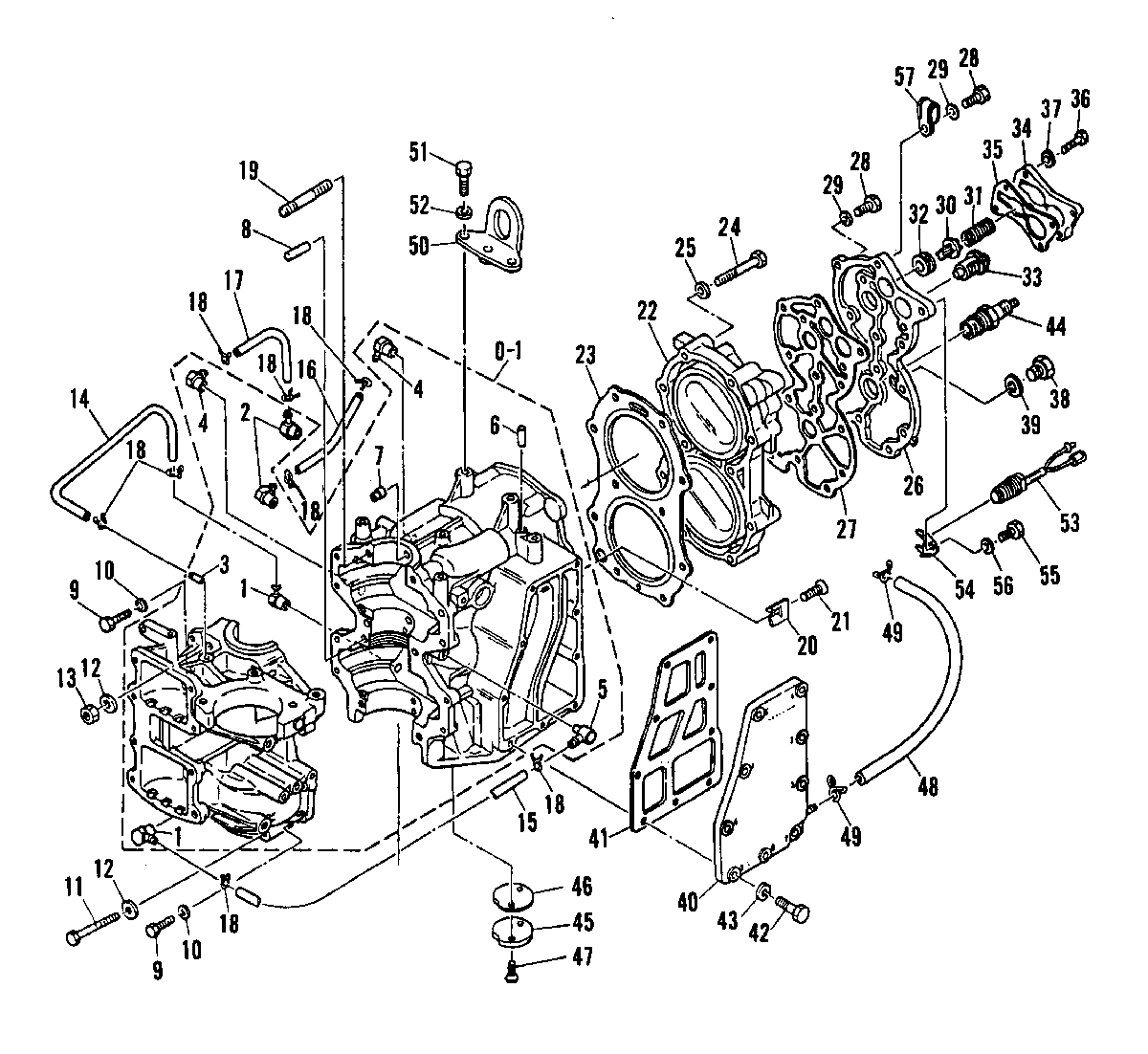

CRANKCASE AND CYLINDER HEAD для Mariner - 60 (2 CYL.) 6F0-000101 AND UP
-
№АртикулНазвание
-
0-1870-8604M CRANKCASE ASS'YCRANKCASE ASS'Y
-
121-80727M CHECK VALVE ASS"YCHECK VALVE ASS"Y
-
221-97819M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
322-80122M FITTINGFITTING
-
422-97820M ELBOWELBOW
-
522-80743M ELBOWELBOW
-
617-82354M PIN, DOWELPIN, DOWEL
-
717-81258M LOCK, BEARINGLOCK, BEARING
-
817-82368M PIN, DOWELPIN, DOWEL
-
910-41837M BOLT, W/WASHERBOLT, W/WASHER
-
910-82405M BOLTBOLT
-
1012-81792M WASHERWASHER
-
1110-41838M BOLT, W/WASHERBOLT, W/WASHER
-
1110-82410M BOLTBOLT
-
1212-81807M WASHERWASHER
-
1311-82387M NUTNUT
-
1432-811045M HOSEHOSE
-
1532-811045M HOSEHOSE
-
1632-97823M HOSEHOSE
-
1732-97823M HOSEHOSE
-
1854-82046M CLIPCLIP
-
1916-81743M STUDSTUD
-
2097825M ANODEANODE
-
2110-82532M SCREWSCREW
-
22968-8605M HEAD, CYLINDERHEAD, CYLINDER
-
2327-97826M GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2410-8527761 BOLT, W/WASHERBOLT, W/WASHER
-
2410-82409M BOLTBOLT
-
2512-80564M WASHERWASHER
-
2697827M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
2727-97828M GASKET, HEAD COVERGASKET, HEAD COVER
-
2810-84058M BOLTBOLT
-
2912-82214M WASHERWASHER
-
3081267M VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
3124-82086M SPRINGSPRING
-
3225-82067M GROMMETGROMMET
-
3399080M THERMOSTATTHERMOSTAT
-
3481265M COVER, THERMOSTATCOVER, THERMOSTAT
-
3527-81266M GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
3610-83285M BOLTBOLT
-
3712-82214M WASHERWASHER
-
3822-81926M PLUGPLUG
-
3927-81990M GASKETGASKET
-
4097829M OUT COVER, EXHAUSTOUT COVER, EXHAUST
-
4127-97830M GASKETGASKET
-
4210-84058M BOLTBOLT
-
4312-82214M WASHERWASHER
-
4433-8244068 PLUG, SPARK B-,HS (NGK)PLUG, SPARK B-,HS (NGK)
-
4598939M COVERCOVER
-
4627-97831M GASKETGASKET
-
4710-97832M SCREWSCREW
-
4832-81324M HOSOEHOSOE
-
4954-82047M CLIPCLIP
-
5097833M HANGER, ENGINEHANGER, ENGINE
-
5110-82439M BOLTBOLT
-
5213-82215M WASHERWASHER
-
5387-97834M THERMO-SWITCH ASS'YTHERMO-SWITCH ASS'Y
-
5497835M PLATPLAT
-
5510-84088M BOLTBOLT
-
5613-82212M WASHERWASHER
-
5754-96348M CLAMPCLAMP
-
5797836M POWER HEAD ASS'Y (SEE NOTE)POWER HEAD ASS'Y (SEE NOTE)
-
5727-97760M GASKET SET, POWERHEAD
FOR REPLACEMENT OF POWER HEAD ASSEMBLY COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER PISTONS, CONNECTING RODS, CRANKSHAFT, BEARINGS, ETC. - ORDER POWER HEAD ASSEMBLY (97836M).GASKET SET, POWERHEAD
FOR REPLACEMENT OF POWER HEAD ASSEMBLY COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER PISTONS, CONNECTING RODS, CRANKSHAFT, BEARINGS, ETC. - ORDER POWER HEAD ASSEMBLY (97836M).
