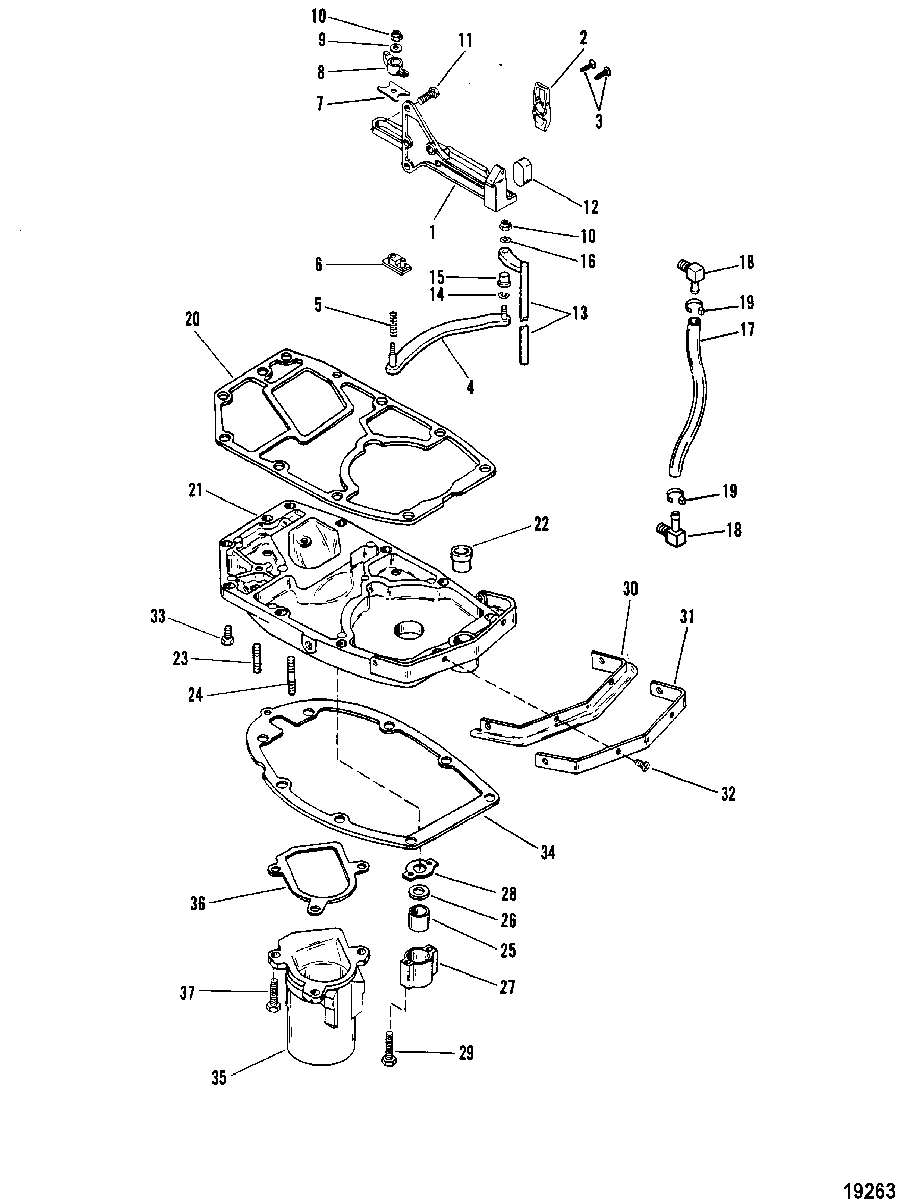

Exhaust Plate для Mariner - 60 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
1814283A2 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
298889 LATCHLATCH
-
310-42975 DRIVE SCREW, LATCHDRIVE SCREW, LATCH
-
460283A1 LINK ASSEMBLY, SHIFT SHAFTLINK ASSEMBLY, SHIFT SHAFT
-
524-20099 SPRING, LINK TO ANCHOR BRACKETSPRING, LINK TO ANCHOR BRACKET
-
637896 GUIDE BLOCK, LINKGUIDE BLOCK, LINK
-
752100 WEAR PLATE, NYLON - LINKWEAR PLATE, NYLON - LINK
-
88M0036768 LATCH, LINK TO ANCHOR BRACKETLATCH, LINK TO ANCHOR BRACKET
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK LATCHWASHER, (.2656 x .625 x .0625) Stainless Steel, LINK LATCH
-
1011-826709109 NUT, (.250-28), LINK ATTACHINGNUT, (.250-28), LINK ATTACHING
-
1110-69101 SCREW, ANCHOR BRACKET (7/8")SCREW, ANCHOR BRACKET (7/8")
-
1239519 CUP, RETAINER - ANCHOR BRACKETCUP, RETAINER - ANCHOR BRACKET
-
1375355A30 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
1375355A32 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1413-29720 WAVE WASHER, WAVE - SHIFT SHAFT TO LINKWAVE WASHER, WAVE - SHIFT SHAFT TO LINK
-
1523-26856 BUSHING, NYLON - SHIFT SHAFT TO LINKBUSHING, NYLON - SHIFT SHAFT TO LINK
-
1612-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK (SHIFT SHAFT END)WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK (SHIFT SHAFT END)
-
1732-774572 HOSE, (48.00 Inches Bulk)HOSE, (48.00 Inches Bulk)
-
1822-996642 ELBOWELBOW
-
1954-816311T TIE STRAP, HOSETIE STRAP, HOSE
-
2027-884511 GASKET, POWERHEADGASKET, POWERHEAD
-
2142869A2 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
2223-27132 BUSHING, NYLON - EXHAUST PLATEBUSHING, NYLON - EXHAUST PLATE
-
2316-8M0034449 STUD, (.312-18/.312-24 x 1.690), EXHAUST PLATESTUD, (.312-18/.312-24 x 1.690), EXHAUST PLATE
-
2416-68166 STUD, (.312 x 2.125), EXHAUST PLATE (2-1/8")STUD, (.312 x 2.125), EXHAUST PLATE (2-1/8")
-
2526-38452 SEAL, WATER INLET TUBESEAL, WATER INLET TUBE
-
2612-38453 WASHER, NYLON - WATER SEALWASHER, NYLON - WATER SEAL
-
2779799 HOUSING, WATER SEALHOUSING, WATER SEAL
-
2827-797971 GASKET, HOUSINGGASKET, HOUSING
-
2910-79798 SCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATESCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATE
-
3060307 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
3160306 STRIP, RETAINING - EXHAUST PLATE SEALSTRIP, RETAINING - EXHAUST PLATE SEAL
-
3210-62568 SCREW, (#10-16 x .375), RETAINING STRIPSCREW, (#10-16 x .375), RETAINING STRIP
-
3310-68918 SCREW, (.190-24 x 1.00), EXHAUST PLATESCREW, (.190-24 x 1.00), EXHAUST PLATE
-
3310-28668 SCREW, (.250-20 x .875) Stainless Steel, EXHAUST PLATESCREW, (.250-20 x .875) Stainless Steel, EXHAUST PLATE
-
3427-385011 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
3558911 TUBE, Exhaust, ADAPTOR
(50)TUBE, Exhaust, ADAPTOR
(50) -
3542718 TUBE, Exhaust, ADAPTOR
(60)TUBE, Exhaust, ADAPTOR
(60) -
3627-602801 GASKET, EXHAUST TUBEGASKET, EXHAUST TUBE
-
3710-28636 SCREW, (.250-20 x .750), EXHAUST TUBESCREW, (.250-20 x .750), EXHAUST TUBE
-
-27-43779A87 GASKET SETGASKET SET
