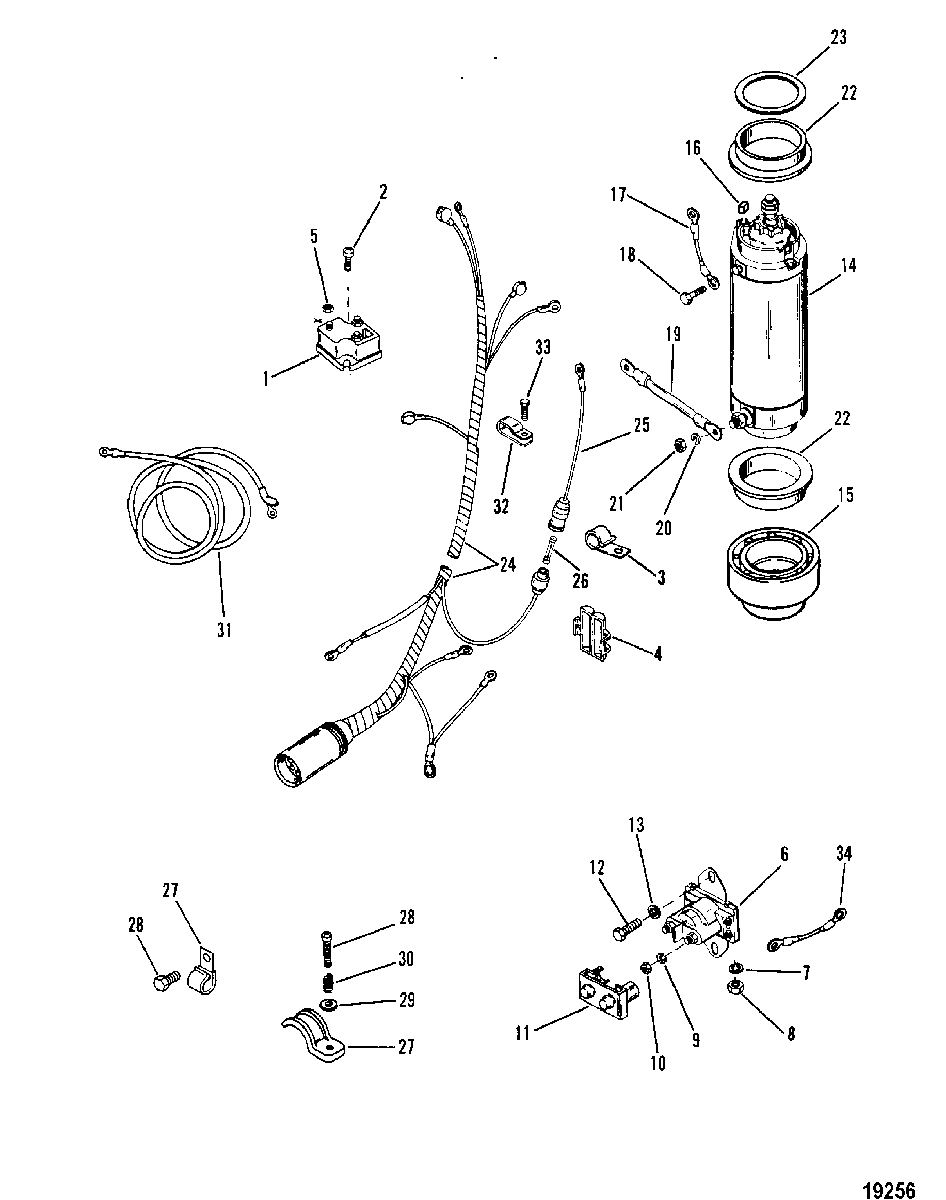

Starter Motor, Solenoid and Rectifier для Mariner - 60 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
18M0058226 RECTIFIERRECTIFIER
-
210-38055 SCREW, (.190-32 x .620), RECTIFIER TO PLATESCREW, (.190-32 x .620), RECTIFIER TO PLATE
-
354-47483 J CLIPJ CLIP
-
4134731 HOLDER, FuseHOLDER, Fuse
-
511-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALNUT, (#10-32) Brass, RECTIFIER TERMINAL
-
689-96158T SOLENOID, StarterSOLENOID, Starter
-
713-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
-
811-26419 NUT, (#8-32) Brass, SOLENOID TERMINALNUT, (#8-32) Brass, SOLENOID TERMINAL
-
913-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
-
1011-94330 NUT, (.250-20) Brass, SOLENOID TERMINALNUT, (.250-20) Brass, SOLENOID TERMINAL
-
1185-97861 INSULATOR, STARTER SOLENOIDINSULATOR, STARTER SOLENOID
-
1210-41508 SCREW, (.250-20 x .500) Stainless Steel, SOLENOID TO ATTENUATORSCREW, (.250-20 x .500) Stainless Steel, SOLENOID TO ATTENUATOR
-
1210-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREWLOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
-
1450-44369A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1544368 ADAPTOR, STARTER MOTORADAPTOR, STARTER MOTOR
-
168M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
1784-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATORCABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATOR
-
1810-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTORSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
-
1984-93389A6 CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR - 9-1/2"
(YELLOW)CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR - 9-1/2"
(YELLOW) -
2013-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
-
2111-64015 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
-
2223-8M0034918 COLLAR, RUBBER - STARTER MOUNTCOLLAR, RUBBER - STARTER MOUNT
-
2323-56774 SPACER, COLLAR TO MOUNTING BRACKETSSPACER, COLLAR TO MOUNTING BRACKETS
-
2484-14614A1 HARNESS ASSEMBLY (INTERNAL)HARNESS ASSEMBLY (INTERNAL)
-
2584-95084A2 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
2688-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2788751 CLAMP, WIRING HARNESS
OLD DESIGNCLAMP, WIRING HARNESS
OLD DESIGN -
2810-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
OLD DESIGNSCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
OLD DESIGN -
2912-72761 WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
OLD DESIGNWASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
OLD DESIGN -
3024-28357 SPRING, WIRING HARNESS
OLD DESIGNSPRING, WIRING HARNESS
OLD DESIGN -
2754-63153 J CLIP, WIRING HARNESS
NEW DESIGNJ CLIP, WIRING HARNESS
NEW DESIGN -
2810-62568 SCREW, (#10-16 x .375), CLAMP
NEW DESIGNSCREW, (#10-16 x .375), CLAMP
NEW DESIGN -
3184-88439A7 CABLE ASSEMBLY, Battery (POSITIVE)CABLE ASSEMBLY, Battery (POSITIVE)
-
3184-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3254-28700 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
3310-73286 SCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMPSCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMP
-
3484-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
