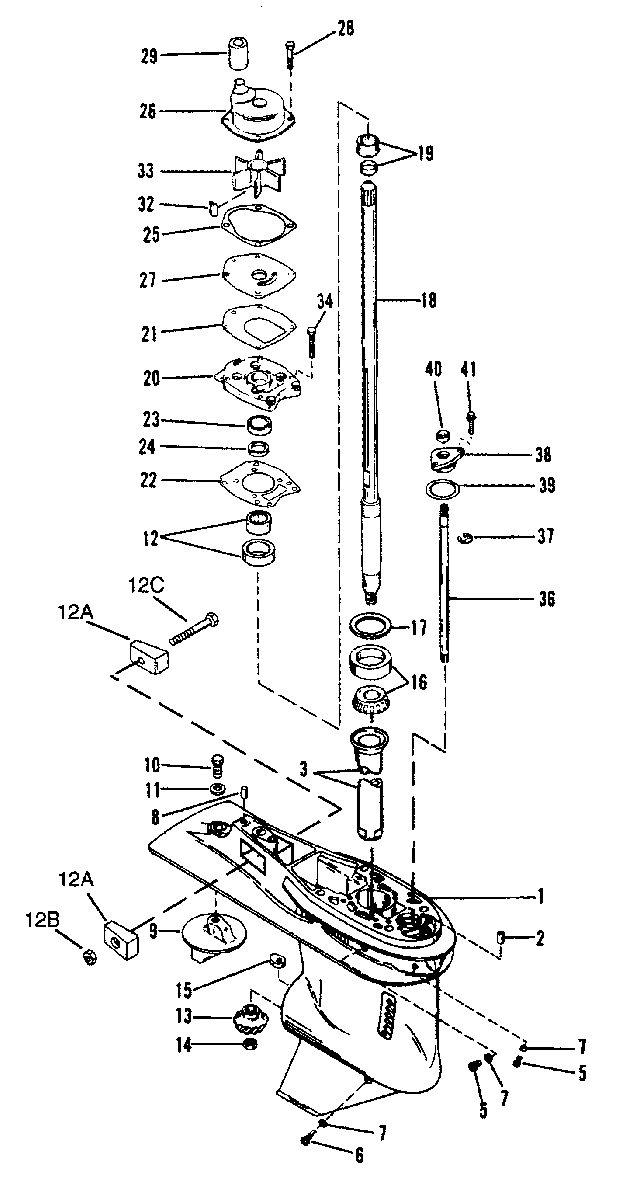

GEAR HSG (DR/ SHAFT)(BIGFOOT)(SEAPRO/MARATHON/PONTOON) для Mariner - 60 (3 CYL.) 0D000750 THRU 0G290584
-
№АртикулНазвание
-
-1667-9011G92 GEAR HOUSING (LONG) (BLACK)GEAR HOUSING (LONG) (BLACK)
-
-1667-9011G94 GEAR HOUSING (LL) (BLACK)GEAR HOUSING (LL) (BLACK)
-
-1667-9011G92 GEAR HOUSING (LONG) (GRAY)GEAR HOUSING (LONG) (GRAY)
-
-1667-9011G48 GEAR HOUSING (LL) (GRAY)GEAR HOUSING (LL) (GRAY)
-
11667-9011T73 GEAR HOUSING ASSEMBLY (BLACK)GEAR HOUSING ASSEMBLY (BLACK)
-
11667-9011T73 GEAR HOUSING ASSEMBLY (GRAY)GEAR HOUSING ASSEMBLY (GRAY)
-
217-8M0084244 DOWEL PIN (FRONT)DOWEL PIN (FRONT)
-
343046 OILER TUBEOILER TUBE
-
510-79953Q04 DRAIN SCREWDRAIN SCREW
-
622-8M0058389 SCREW (MAGNETIC)SCREW (MAGNETIC)
-
712-191833 WASHER-SEALINGWASHER-SEALING
-
817-43044 DOWEL PIN (REAR)DOWEL PIN (REAR)
-
997-31640Q4 TRIM TABTRIM TAB
-
1010-825427 SCREWSCREW
-
1112-45176 WASHERWASHER
-
1243040T1 CARRIERCARRIER
-
12A97-826134Q ANODEANODE
-
12B11-401386 NUTNUT
-
12C10-4000333 SCREWSCREW
-
1343-44484T PINION GEARPINION GEAR
-
1411-35921 NUTNUT
-
15760394 SHIFT CAMSHIFT CAM
-
1631-42677A1 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
1715-8M0063265 SHIM ASSEMBLYSHIM ASSEMBLY
-
1845-826736A1 DRIVE SHAFT ASSEMBLY (LONG)DRIVE SHAFT ASSEMBLY (LONG)
-
1845-826737A1 DRIVE SHAFT ASSEMBLY (X-LONG)DRIVE SHAFT ASSEMBLY (X-LONG)
-
1942461A1 WEAR SLEEVE ASSEMBLYWEAR SLEEVE ASSEMBLY
-
2046-8M0113262 COVER ASSEMBLYCOVER ASSEMBLY
-
2127-430331 GASKETGASKET
-
2227-430472 GASKETGASKET
-
2326-43036 OIL SEAL (LOWER)OIL SEAL (LOWER)
-
2426-43035 OIL SEAL (UPPER)OIL SEAL (UPPER)
-
2527-8172771 GASKETGASKET
-
26817275A2 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
278172761 FACE PLATEFACE PLATE
-
2810-8248327 SCREW (M6 X 1 X 30)SCREW (M6 X 1 X 30)
-
29826763A1 COUPLING (LONG)COUPLING (LONG)
-
29826762A1 COUPLING (LL)COUPLING (LL)
-
3228-8M0032833 KEYKEY
-
3347-43026T2 IMPELLERIMPELLER
-
3410-8248326 SCREWSCREW
-
3643048A1 SHIFT SHAFT ASSEMBLY (LONG)SHIFT SHAFT ASSEMBLY (LONG)
-
36430482 SHIFT SHAFT ASSEMBLY (LL)SHIFT SHAFT ASSEMBLY (LL)
-
3753-29641 E-RINGE-RING
-
3823-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3925-457101 O-RINGO-RING
-
4026-8164641 OIL SEALOIL SEAL
-
4110-8248326 SCREW (M6 X 1)SCREW (M6 X 1)
-
-46-8M0113799 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
-26-43035A4 G/H SEAL KITG/H SEAL KIT
