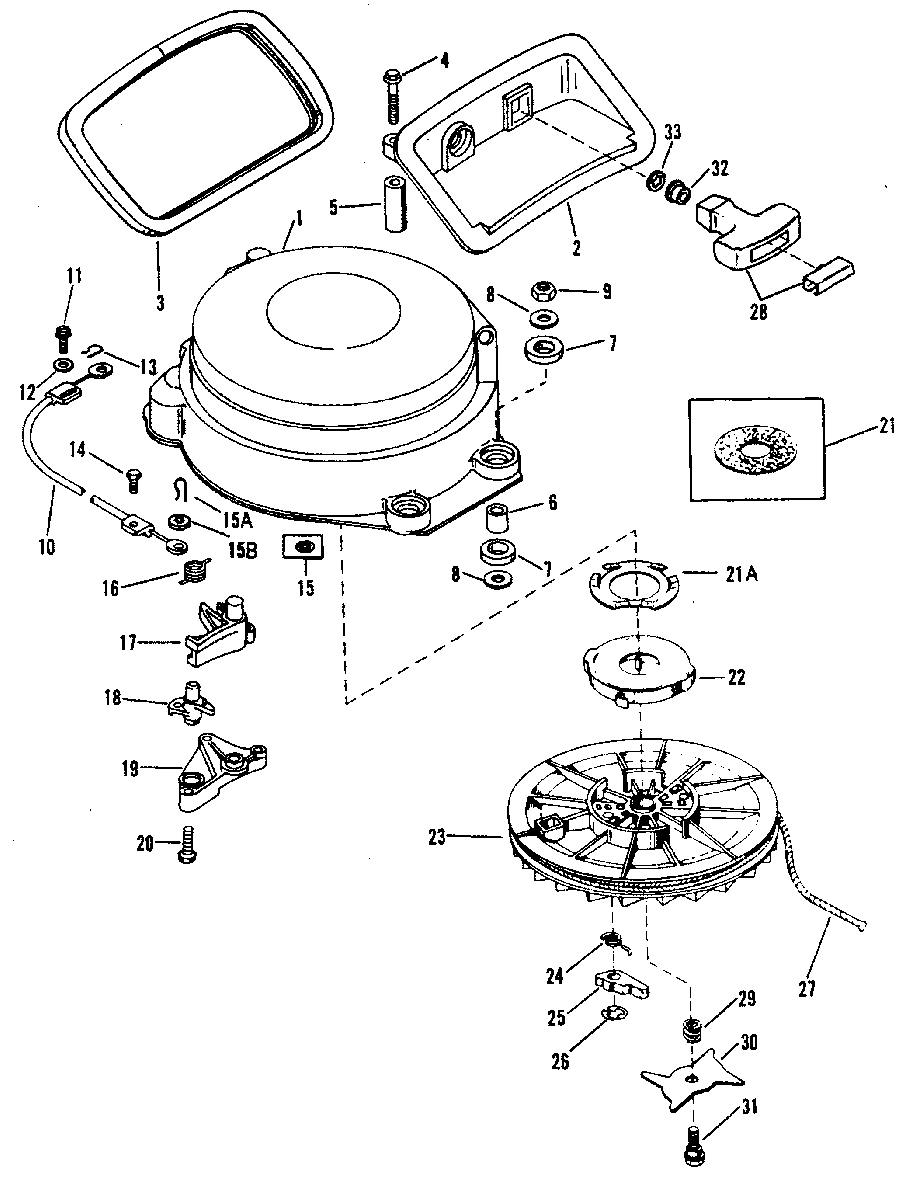

STARTER ASSEMBLY (MANUAL)(55) для Mariner - 60 (3 CYL.) 0D000750 THRU 0G290584
-
№АртикулНазвание
-
1816728T05 STARTER HOUSINGSTARTER HOUSING
-
28167652 RESTREST
-
38M0043161 SEALSEAL
-
410-82170475 SCREWSCREW
-
523-821702 SPACERSPACER
-
623-816086 BUSHINGBUSHING
-
725-815795 GROMMETGROMMET
-
812-69057 WASHERWASHER
-
911-401196 NUTNUT
-
108567541 INTERLOCK CABLEINTERLOCK CABLE
-
1110-8214281 SCREWSCREW
-
1212-73288 WASHERWASHER
-
1318-26811 COTTER PINCOTTER PIN
-
1410-878608 SCREWSCREW
-
1511-821027 PUSH NUT (DESIGN I)PUSH NUT (DESIGN I)
-
15A18-26811 COTTER PIN (DESIGN II)COTTER PIN (DESIGN II)
-
15B12-35462 WASHER (DESIGN II)WASHER (DESIGN II)
-
-816728T14 RECOIL STARTER (S/N 0G239163 & BELOW)RECOIL STARTER (S/N 0G239163 & BELOW)
-
-816728T14 RECOIL STARTER (S/N 0G239164 & ABOVE)RECOIL STARTER (S/N 0G239164 & ABOVE)
-
1624-826791 SPRINGSPRING
-
178166902 INTERLOCK LEVERINTERLOCK LEVER
-
18816712T01 CAMCAM
-
19816711 RETAINERRETAINER
-
2010-8182491 SCREWSCREW
-
21833161T FELT PAD (DESIGN I)FELT PAD (DESIGN I)
-
21A13-826229 WASHER - SPRING (DESIGN II)WASHER - SPRING (DESIGN II)
-
2224-86857T01 SPRINGSPRING
-
2350-825269T01 STARTER SHEAVESTARTER SHEAVE
-
2424-86851T02 SPRINGSPRING
-
25868501 CAMCAM
-
2653-86849T01 RETAINING RINGRETAINING RING
-
2750-12066Q10 STARTER ROPESTARTER ROPE
-
2885174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
2924-868523 SPRINGSPRING
-
3086853T01 CAMCAM
-
3110-826253 SCREWSCREW
-
3242690 BUSHINGBUSHING
-
3353-818853 RETAINING RINGRETAINING RING
