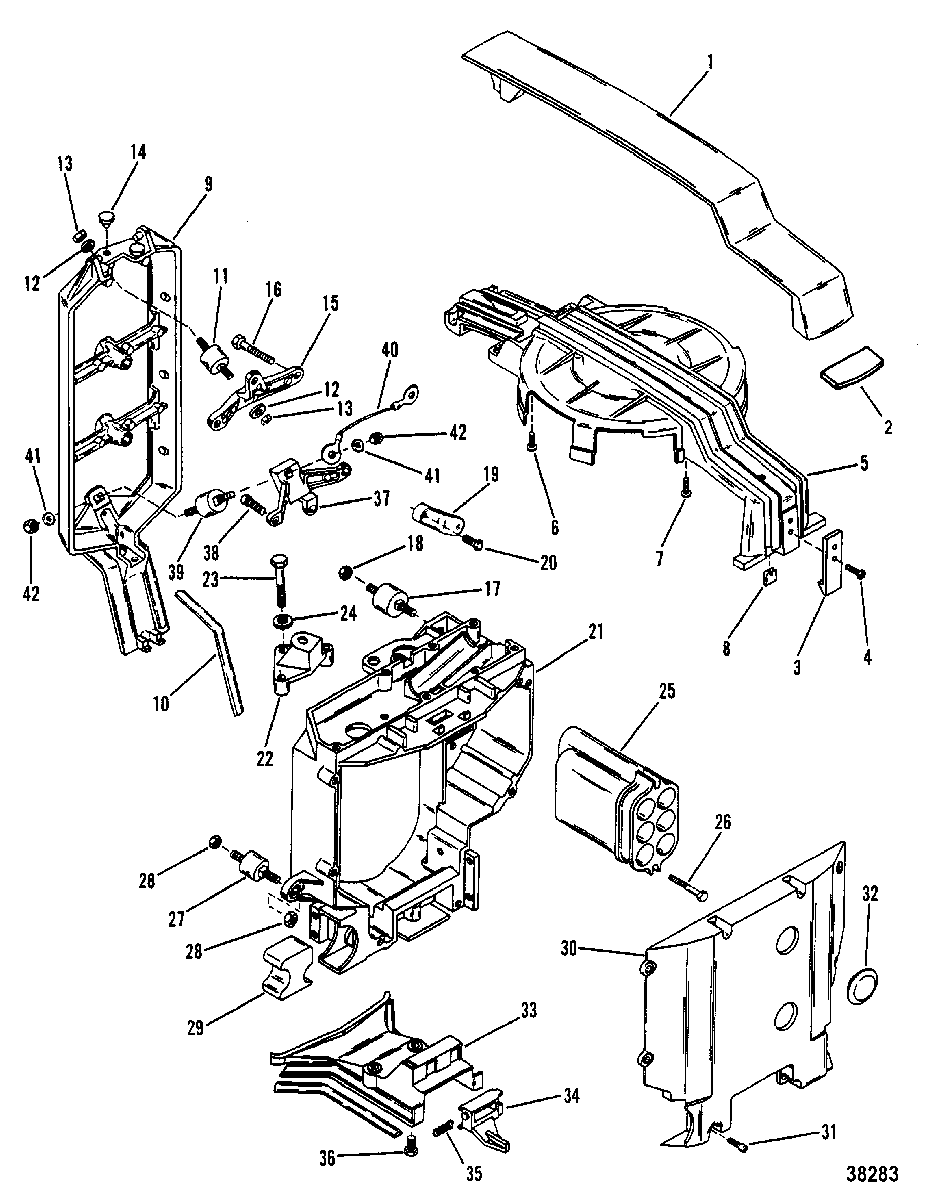

COWL SUPPORT BRACKETS для Mariner - 60 (3 CYL.) 7208333 THRU 0A721307
-
№АртикулНазвание
-
173641A1 BRACKET, TOP (MERCURY)BRACKET, TOP (MERCURY)
-
173641A2 BRACKET, TOP (MARINER)BRACKET, TOP (MARINER)
-
262444 SEAL, RUBBER - TOP BRACKET/MOUNTING PLATESEAL, RUBBER - TOP BRACKET/MOUNTING PLATE
-
379652 CLIP, SUPPORT BRACKETCLIP, SUPPORT BRACKET
-
410-48409 SCREW, (#10-16 x .625) Stainless Steel, CLIP TO SUPPORTSCREW, (#10-16 x .625) Stainless Steel, CLIP TO SUPPORT
-
579490 SHIELD, FLYWHEELSHIELD, FLYWHEEL
-
610-37656 SCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKETSCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKET
-
710-48408 SCREW, (#10-16 x .500), SHIELD TO SUPPORT BRACKETSCREW, (#10-16 x .500), SHIELD TO SUPPORT BRACKET
-
891891 WEAR PLATE, SOUND ATTENUATORWEAR PLATE, SOUND ATTENUATOR
-
974510A2 BRACKET, COWL SUPPORT - REARBRACKET, COWL SUPPORT - REAR
-
10698761 SEAL, REAR BRACKET AND TOP BRACKETSEAL, REAR BRACKET AND TOP BRACKET
-
1190435 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1212-69057 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
1311-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
-
14269011 BUMPER, RUBBER - REAR SUPPORT BRACKETBUMPER, RUBBER - REAR SUPPORT BRACKET
-
1560116 BRACE, COWL SUPPORT BRACKET (TOP)BRACE, COWL SUPPORT BRACKET (TOP)
-
1610-76596 SCREW, (.250-20 x 1.250), SUPPORT BRACKETSCREW, (.250-20 x 1.250), SUPPORT BRACKET
-
1790435 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
1811-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
1971097 BRACKET, RUBBER MOUNTBRACKET, RUBBER MOUNT
-
2010-824941 SCREW, (.312-18 x .750), BRACKET TO CRANKCASESCREW, (.312-18 x .750), BRACKET TO CRANKCASE
-
21973481 ATTENUATOR, SOUNDATTENUATOR, SOUND
-
2288684 COVER, MANUAL CHOKECOVER, MANUAL CHOKE
-
2310-23015 SCREW, (.190-32 x 1.00), COVER TO TOP COVERSCREW, (.190-32 x 1.00), COVER TO TOP COVER
-
2412-814806 WASHER, COVER SCREWWASHER, COVER SCREW
-
2573986 MANIFOLD, AirMANIFOLD, Air
-
2610-69093 SCREW, (.250-20 x 1.50), AIR MANIFOLDSCREW, (.250-20 x 1.50), AIR MANIFOLD
-
2790435 MOUNT, RUBBER - FRONT SUPPORTMOUNT, RUBBER - FRONT SUPPORT
-
2811-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
-
2976410 SEAL, FUEL CONNECTOR - SOUND ATTENUATORSEAL, FUEL CONNECTOR - SOUND ATTENUATOR
-
3076578 COVER, SOUND ATTENUATOR (FRONT)COVER, SOUND ATTENUATOR (FRONT)
-
3110-37571 SCREW, (.190-32 x .500), FRONT COVERSCREW, (.190-32 x .500), FRONT COVER
-
3219-73336 PLUG, FRONT COVERPLUG, FRONT COVER
-
3376251A1 PLATE ASSEMBLY, FRONT COVERPLATE ASSEMBLY, FRONT COVER
-
3476264 LATCH, FRONT COVERLATCH, FRONT COVER
-
3524-60295 SPRING, FRONT COVER LATCHSPRING, FRONT COVER LATCH
-
3610-28635 SCREW, (.250-20 x .620) Stainless Steel, COVER PLATE TO SUPPORT BRACKETSCREW, (.250-20 x .620) Stainless Steel, COVER PLATE TO SUPPORT BRACKET
-
3787764 BRACKET, REAR - LOWER MOUNTBRACKET, REAR - LOWER MOUNT
-
3810-76596 SCREW, (.250-20 x 1.250), REAR BRACKET ATTACHINGSCREW, (.250-20 x 1.250), REAR BRACKET ATTACHING
-
3990435 MOUNT, RUBBER - REAR COWL SUPPORTMOUNT, RUBBER - REAR COWL SUPPORT
-
4088238A3 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
4112-69057 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
4211-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
