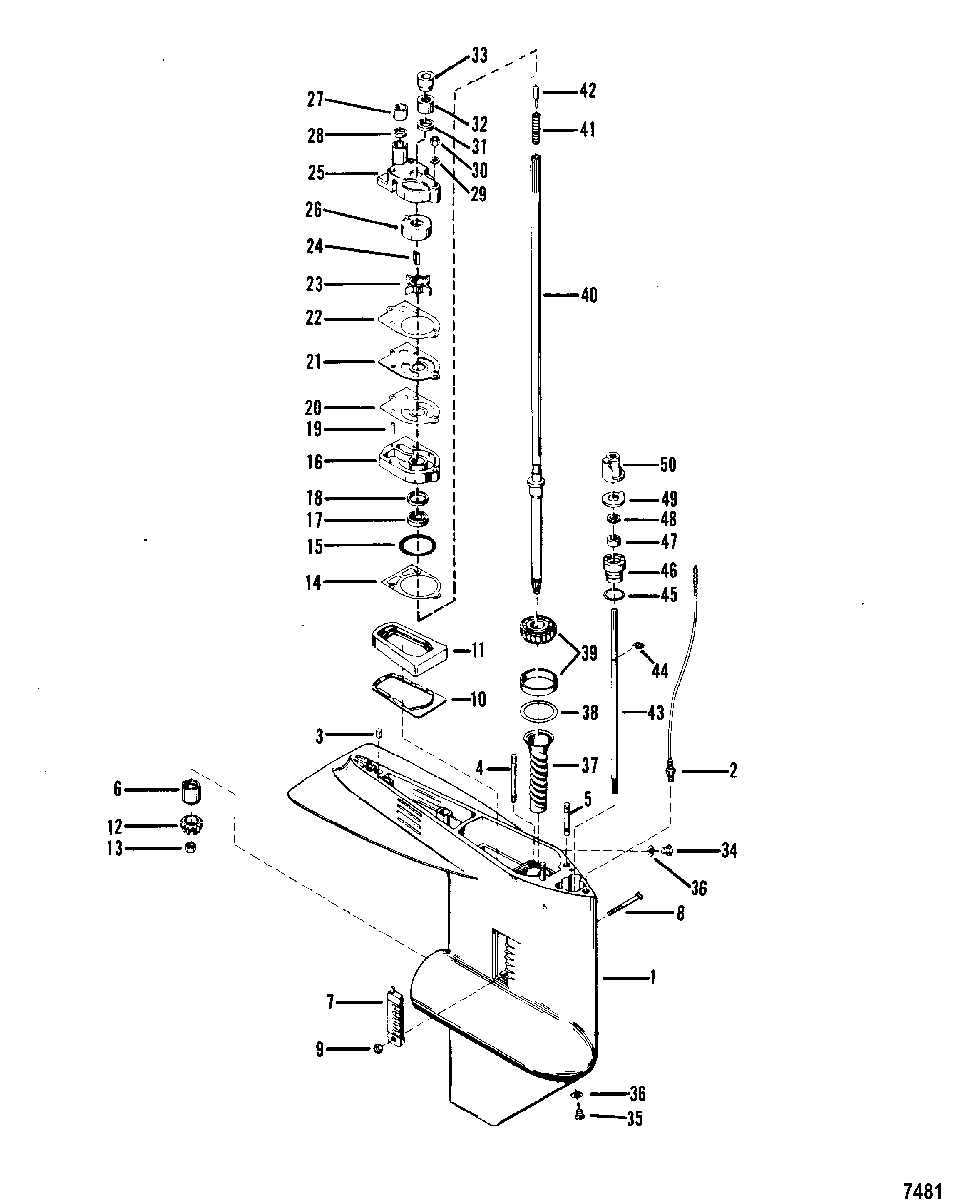

GEAR HOUSING(DRIVESHAFT) для Mariner - 60 (3 CYL.) 7208333 THRU 0A721307
-
№АртикулНазвание
-
-1643-9539A2 GEAR HOUSING ASSEMBLY, Complete
(Short-Mercury)GEAR HOUSING ASSEMBLY, Complete
(Short-Mercury) -
-1643-9539A3 GEAR HOUSING ASSEMBLY, Complete
(Long-Mercury)GEAR HOUSING ASSEMBLY, Complete
(Long-Mercury) -
-1643-9539A9 GEAR HOUSING ASSEMBLY, Complete
(Long-Mariner)GEAR HOUSING ASSEMBLY, Complete
(Long-Mariner) -
11643-9539T1 GEAR HOUSING ASSEMBLY, Mercury (Basic)GEAR HOUSING ASSEMBLY, Mercury (Basic)
-
11643-9539T1 GEAR HOUSING ASSEMBLY, Mariner (Basic)GEAR HOUSING ASSEMBLY, Mariner (Basic)
-
222-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETERCONNECTOR ASSEMBLY, SPEEDOMETER
-
317-8M0084726 PIN, Dowel (.187 x .530), GEAR HOUSINGPIN, Dowel (.187 x .530), GEAR HOUSING
-
416-33778 STUD, WATER PUMP (2-5/8")STUD, WATER PUMP (2-5/8")
-
516-8M0034453 STUD, (.437-14/.437-20 x 2.190), GEAR HOUSINGSTUD, (.437-14/.437-20 x 2.190), GEAR HOUSING
-
631-62091T BEARING, Roller, DRIVE SHAFTBEARING, Roller, DRIVE SHAFT
-
772849A1 SCREEN ASSEMBLY, WATER INTAKE - STARBOARD AND PORTSCREEN ASSEMBLY, WATER INTAKE - STARBOARD AND PORT
-
810-36070 SCREW, (#10-32 x 1.250), WATER INTAKE SCREENSCREW, (#10-32 x 1.250), WATER INTAKE SCREEN
-
911-859124 NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREWNUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW
-
1092815 PLATE, SUPPORT - EXHAUST TUBEPLATE, SUPPORT - EXHAUST TUBE
-
1137721001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
1243-88019T GEAR, PinionGEAR, Pinion
-
1311-55910 NUT, (.437-20), PINION GEAR TO DRIVE SHAFTNUT, (.437-20), PINION GEAR TO DRIVE SHAFT
-
1427-19552 GASKET, WATER PUMPGASKET, WATER PUMP
-
1525-26722 O-RING, WATER PUMP BASEO-RING, WATER PUMP BASE
-
1646-77177A1 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1726-79831 SEAL, Oil, WATER PUMP BASESEAL, Oil, WATER PUMP BASE
-
1826-90562 SEAL, (1.254 x .312), WATER PUMP BASESEAL, (1.254 x .312), WATER PUMP BASE
-
1917-8M0084627 PIN, Dowel, WATER PUMP BASEPIN, Dowel, WATER PUMP BASE
-
2027-19553 GASKET, LOWER - WATER PUMPGASKET, LOWER - WATER PUMP
-
2132768 FACE PLATE, WATER PUMPFACE PLATE, WATER PUMP
-
2227-19551 GASKET, UPPER - WATER PUMPGASKET, UPPER - WATER PUMP
-
2347-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2428-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2546-77822A1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2648753 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2726-38452 SEAL, RUBBER - WATER PUMPSEAL, RUBBER - WATER PUMP
-
2812-38453 WASHER, NYLON - WATER PUMPWASHER, NYLON - WATER PUMP
-
2912-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDSWASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDS
-
3011-8267089 NUT, (.250-28), WATER PUMP STUDSNUT, (.250-28), WATER PUMP STUDS
-
3125-20273 O-RING, RUBBER (DRIVE SHAFT)O-RING, RUBBER (DRIVE SHAFT)
-
3278654A1 SEAT ASSEMBLYSEAT ASSEMBLY
-
3386304 SEAL, SPLINEDSEAL, SPLINED
-
3410-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
3522-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
3612-191833 WASHER, GREASE FILLER AND DRAIN SCREWWASHER, GREASE FILLER AND DRAIN SCREW
-
3788181 SLEEVE, LUBRICATIONSLEEVE, LUBRICATION
-
3815-92881A1 SHIM SET, ROLLER BEARING (.002-3-5-10-20)SHIM SET, ROLLER BEARING (.002-3-5-10-20)
-
3931-77420A1 BEARING ASSEMBLY, Roller, TAPEREDBEARING ASSEMBLY, Roller, TAPERED
-
4045-98179 DRIVESHAFT ASSEMLBY
(Short)DRIVESHAFT ASSEMLBY
(Short) -
4045-98180 DRIVESHAFT ASSEMBLY
(Long)DRIVESHAFT ASSEMBLY
(Long) -
4124-20254 SPRING, COMPRESSION - DRIVE SHAFTSPRING, COMPRESSION - DRIVE SHAFT
-
4217-30545 PIN, DRIVE SHAFTPIN, DRIVE SHAFT
-
4376063A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4453-29641 E RING, RETAINING - SHIFT SHAFTE RING, RETAINING - SHIFT SHAFT
-
4525-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHINGO-RING, (.862 x .103), SHIFT SHAFT BUSHING
-
4623-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4726-8164641 SEAL, Oil, SHIFT SHAFT BUSHINGSEAL, Oil, SHIFT SHAFT BUSHING
-
4812-77674 WASHER, RUBBER - SHAFT BUSHINGWASHER, RUBBER - SHAFT BUSHING
-
4978036 BASE, REVERSE LOCKINGBASE, REVERSE LOCKING
-
5043308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
-46-77177A3 WATER PUMP KITWATER PUMP KIT
-
-26-79831A1 SEAL KITSEAL KIT
-
-27-88449A32 GASKET SETGASKET SET
