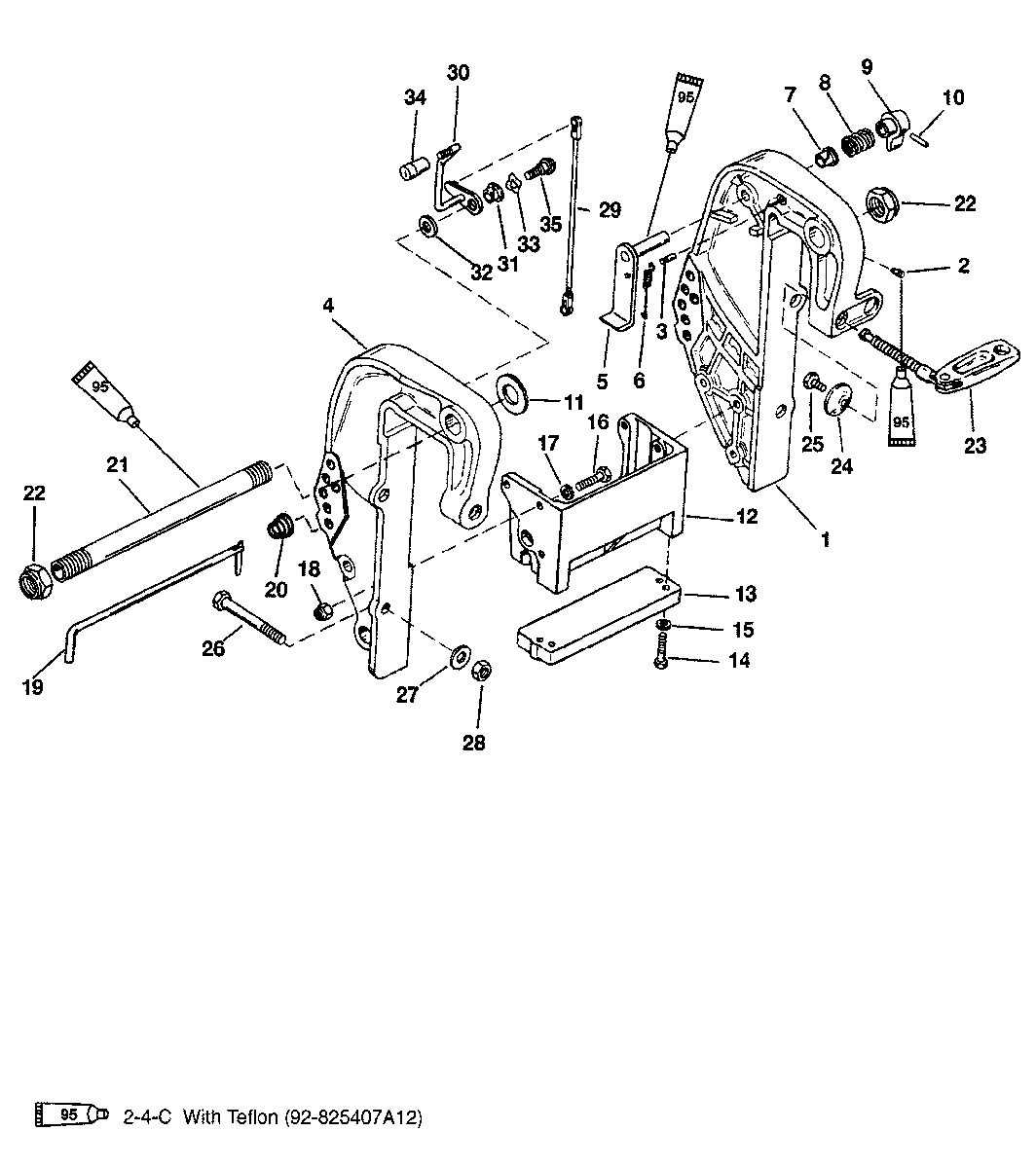

CLAMP BRACKET (MANUAL) для Mariner - 60 (3 CYL.) 9885345 THRU 9973099
-
№АртикулНазвание
-
13420-8M0084195 CLAMP BRACKET
(BLACK) PORTCLAMP BRACKET
(BLACK) PORT -
13420-822868A2 CLAMP BRACKET
(GRAY) PORTCLAMP BRACKET
(GRAY) PORT -
222-98727 GREASE FITTINGGREASE FITTING
-
317-99604 GROOVE PINGROOVE PIN
-
43419-822867F1 CLAMP BRACKET
(BLACK) STARBOARDCLAMP BRACKET
(BLACK) STARBOARD -
43419-822867F2 CLAMP BRACKET
(GRAY) STARBOARDCLAMP BRACKET
(GRAY) STARBOARD -
5893704T01 TILT LOCK LEVER
(BLACK)TILT LOCK LEVER
(BLACK) -
5893704T01 TILT LOCK LEVER
(GRAY)TILT LOCK LEVER
(GRAY) -
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB
(BLACK)KNOB
(BLACK) -
9812709 KNOB
(GRAY)KNOB
(GRAY) -
1017-99615 GROOVE PINGROOVE PIN
-
1112-19619 WASHERWASHER
-
1218486A08 ANCHOR BRACKET
(BLACK)ANCHOR BRACKET
(BLACK) -
1218486A08 ANCHOR BRACKET
(GRAY)ANCHOR BRACKET
(GRAY) -
1397-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
1410-4000330 SCREWSCREW
-
1512-29245 WASHERWASHER
-
1610-4000354 SCREW (30 MM)SCREW (30 MM)
-
1610-4000355 SCREW (35 MM)SCREW (35 MM)
-
1713-400257 LOCKWASHERLOCKWASHER
-
1811-401388 NUTNUT
-
1917-8M0026068 TILT PIN ASSEMBLYTILT PIN ASSEMBLY
-
2024-821461 SPRINGSPRING
-
218M0041938 TILT TUBETILT TUBE
-
2211-826164 NUTNUT
-
2310-818883A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
2412-818884 WASHERWASHER
-
2510-768042 SCREWSCREW
-
2610-814259 SCREWSCREW
-
2712-28421 WASHERWASHER
-
2811-91962 NUTNUT
-
298M0084737 LINKLINK
-
3019615A05 TILT LEVERTILT LEVER
-
3123-812707 BUSHINGBUSHING
-
3212-8M0042643 WASHERWASHER
-
3313-99611 WAVE WASHERWAVE WASHER
-
348M0007469 TILT KNOBTILT KNOB
-
3510-19611 SCREWSCREW
