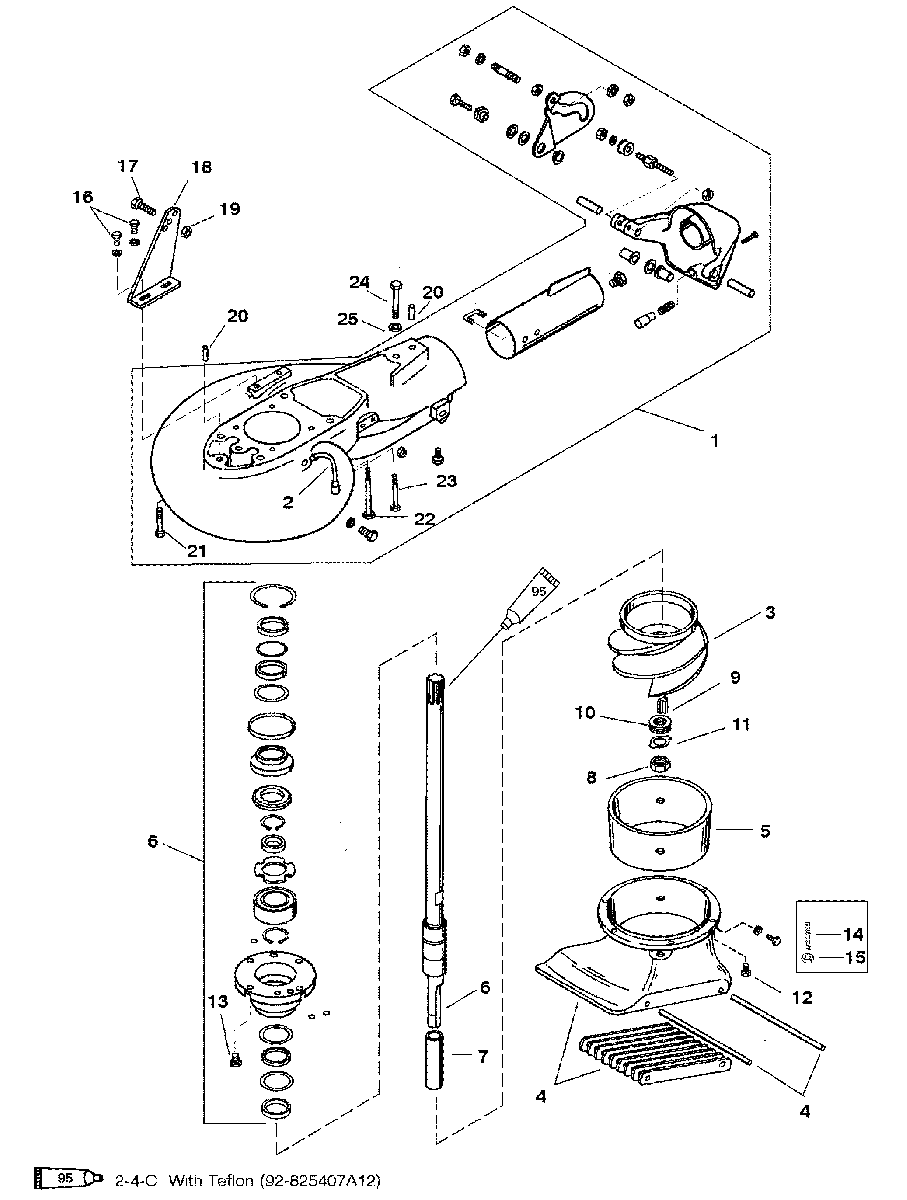

JET PUMP ASSEMBLY для Mariner - 60 (3 CYL.) 9885345 THRU 9973099
-
№АртикулНазвание
-
-856143A6 JET PUMP ASSEMBLY
(BLACK) USA-S/N-0G580494 & BELOWJET PUMP ASSEMBLY
(BLACK) USA-S/N-0G580494 & BELOW -
-856143A6 JET PUMP ASSEMBLY
(GRAY) USA-S/N-0G580494 & BELOWJET PUMP ASSEMBLY
(GRAY) USA-S/N-0G580494 & BELOW -
-856143A6 JET PUMP ASSEMBLY
(BLACK) (USA-S/N-0G580495 & UP)JET PUMP ASSEMBLY
(BLACK) (USA-S/N-0G580495 & UP) -
1801411T60 HOUSING-PUMP
(USA-S/N-0G580494 & BELOW)HOUSING-PUMP
(USA-S/N-0G580494 & BELOW) -
1855767T60 HOUSING-PUMP
(USA-S/N-0G580495 & UP)HOUSING-PUMP
(USA-S/N-0G580495 & UP) -
232-827490 HOSE-LUBEHOSE-LUBE
-
347-855708T60 IMPELLERIMPELLER
-
480141260 HOUSING-INTAKEHOUSING-INTAKE
-
58271882 LINERLINER
-
645-80141360 DRIVESHAFT
(USA-S/N-0G580494 & BELOW)DRIVESHAFT
(USA-S/N-0G580494 & BELOW) -
645-85576960 DRIVESHAFT
(USA-S/N-0G580495 & UP)DRIVESHAFT
(USA-S/N-0G580495 & UP) -
723-8271891 SLEEVESLEEVE
-
811-8271901 NUTNUT
-
928-801405875 KEYKEY
-
1015-801404875 SHIMSHIM
-
1114-801403875 TAB WASHERTAB WASHER
-
1210-848497 SCREW (.312-18 X .1)SCREW (.312-18 X .1)
-
1310-19923088 SCREW (1/4-20 X .875)
(USA-S/N-0G580494 & BELOW)SCREW (1/4-20 X .875)
(USA-S/N-0G580494 & BELOW) -
1310-848497 SCREW (.312-18 X .1)
USA-S/N-0G580495 & UPSCREW (.312-18 X .1)
USA-S/N-0G580495 & UP -
1416-855840 STUD (.312-18 X1.81)
USA-S/N-0G580495 & UPSTUD (.312-18 X1.81)
USA-S/N-0G580495 & UP -
1511-82670910 NUT
USA-S/N-0G580495 & UPNUT
USA-S/N-0G580495 & UP -
1610-19923062 SCREW (1/4-20 X .625)SCREW (1/4-20 X .625)
-
1710-60411 SCREW (.312-18 X 1.25)SCREW (.312-18 X 1.25)
-
18801410 BRACKETBRACKET
-
1911-82670910 NUTNUT
-
2017-801407 PIN-DOWELPIN-DOWEL
-
2110-4010860 SCREW (M10 X 60)SCREW (M10 X 60)
-
2210-4010890 SCREW (M10 X 90)SCREW (M10 X 90)
-
2310-4010870 SCREW (M10 X 70)SCREW (M10 X 70)
-
2410-95802 SCREW (.375-16 X 3-1/4)SCREW (.375-16 X 3-1/4)
-
2512-856774 WASHERWASHER
