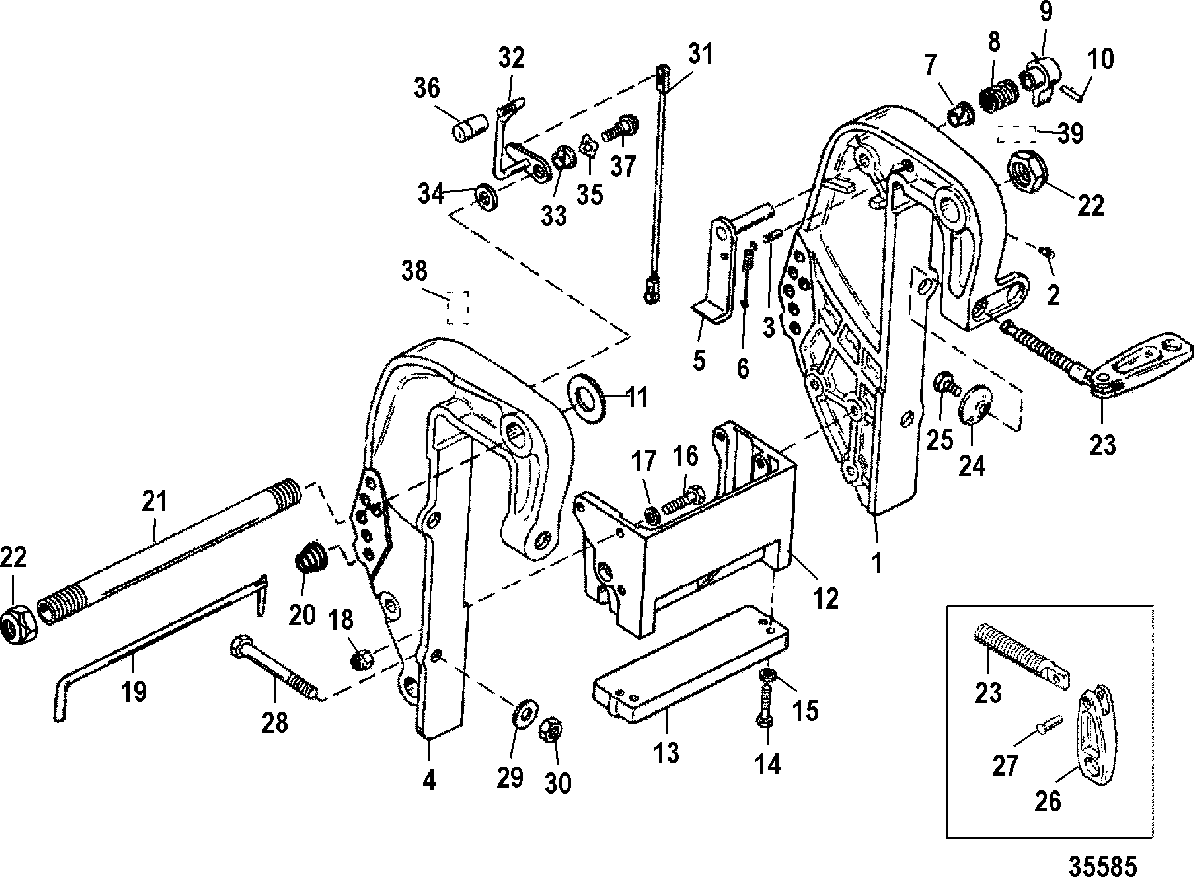

Clamp Bracket, Manual для Mariner - 60 (3 CYL.) 9973100 THRU 0P016999
-
№АртикулНазвание
-
13420-8M0084195 CLAMP BRACKET ASSEMBLY
(BLACK) PORTCLAMP BRACKET ASSEMBLY
(BLACK) PORT -
13420-822868A2 CLAMP BRACKET ASSEMBLY
(GRAY) PORTCLAMP BRACKET ASSEMBLY
(GRAY) PORT -
222-98727 FITTING, GreaseFITTING, Grease
-
317-99604 PIN, GroovePIN, Groove
-
43419-822867F1 CLAMP BRACKET
(BLACK) STARBOARDCLAMP BRACKET
(BLACK) STARBOARD -
43419-822867F2 CLAMP BRACKET
(GRAY) STARBOARDCLAMP BRACKET
(GRAY) STARBOARD -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(BLACK)LEVER ASSEMBLY, Tilt Lock
(BLACK) -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(GRAY)LEVER ASSEMBLY, Tilt Lock
(GRAY) -
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB
(BLACK)KNOB
(BLACK) -
9812709 KNOB
(GRAY)KNOB
(GRAY) -
1017-99615 PIN, GroovePIN, Groove
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET, Anchor
(BLACK)BRACKET, Anchor
(BLACK) -
1218486A08 BRACKET, Anchor
(GRAY)BRACKET, Anchor
(GRAY) -
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1610-4000355 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-400257 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1811-401388 NUT, (M8)NUT, (M8)
-
1917-8M0026068 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
2024-821461 SPRINGSPRING
-
218M0041938 TILT TUBETILT TUBE
-
2211-858869 NUT, (7/8-14)NUT, (7/8-14)
-
2310-818883A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
2412-818884 WASHERWASHER
-
2510-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
-
26NSS NOT SOLD SEPARATE, HandleNOT SOLD SEPARATE, Handle
-
27NSS NOT SOLD SEPARATE, RivetNOT SOLD SEPARATE, Rivet
-
2810-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2912-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
3011-91962 NUT, (.500-20)NUT, (.500-20)
-
318M0084737 LINKLINK
-
3219615A05 LEVER ASSEMBLY, TiltLEVER ASSEMBLY, Tilt
-
3323-812707 BUSHINGBUSHING
-
3412-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
3513-99611 WAVE WASHERWAVE WASHER
-
368M0007469 TILT KNOBTILT KNOB
-
3710-19611 SCREW, (.375-16 x .62)SCREW, (.375-16 x .62)
-
38NSS NOT SOLD SEPARATE, Decal-Tilt LockNOT SOLD SEPARATE, Decal-Tilt Lock
-
39NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
