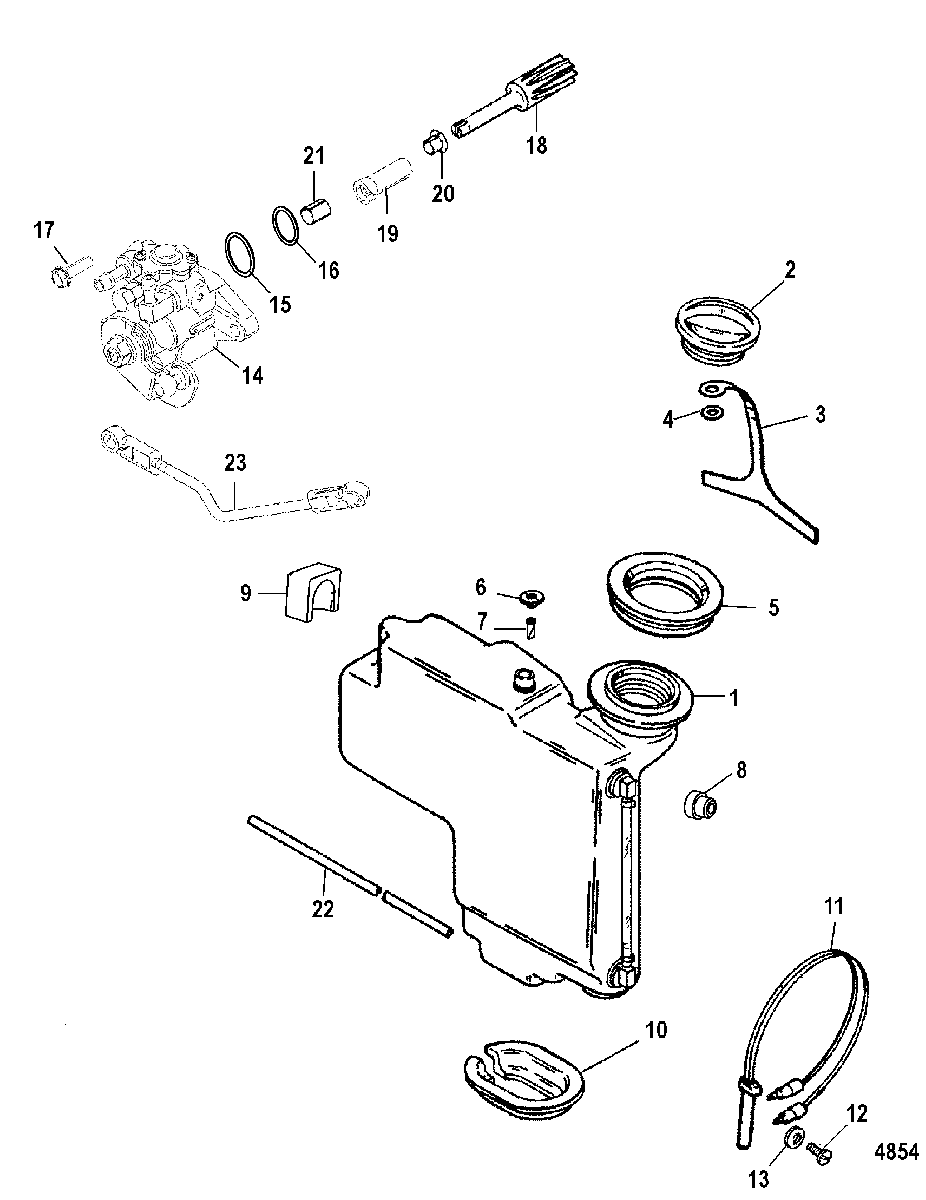

Oil Injection Components для Mariner - 60 (3 CYL.) 9973100 THRU 0P016999
-
№АртикулНазвание
-
11263-812718T1 TANK ASSEMBLY, OilTANK ASSEMBLY, Oil
-
236-828765A2 CAP ASSEMBLYCAP ASSEMBLY
-
3NSS NOT SOLD SEPARATE, TetherNOT SOLD SEPARATE, Tether
-
411-821285 PUSH NUTPUSH NUT
-
58M0039080 SEALSEAL
-
619299A1 VENT ASSEMBLYVENT ASSEMBLY
-
721-64871 VALVEVALVE
-
825-813644002 GROMMETGROMMET
-
999162001 BOOTBOOT
-
108M0039085 BOOTBOOT
-
1187-12886A6 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1210-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
1312-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
14818902A1 PUMP ASSEMBLY, Oil InjectionPUMP ASSEMBLY, Oil Injection
-
1525-62705 O-RINGO-RING
-
1625-36390 O-RINGO-RING
-
1710-40011108 SCREW, (M5 x 20) Stainless SteelSCREW, (M5 x 20) Stainless Steel
-
1843-19277 GEAR, DrivenGEAR, Driven
-
1923-19278A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
2023-17597 BUSHING (FLANGED)BUSHING (FLANGED)
-
2123-17596 BUSHINGBUSHING
-
2232-82381335 TUBING, (15.00 Inches Bulk) (6 IN.)TUBING, (15.00 Inches Bulk) (6 IN.)
-
238M0084729 LINKLINK
