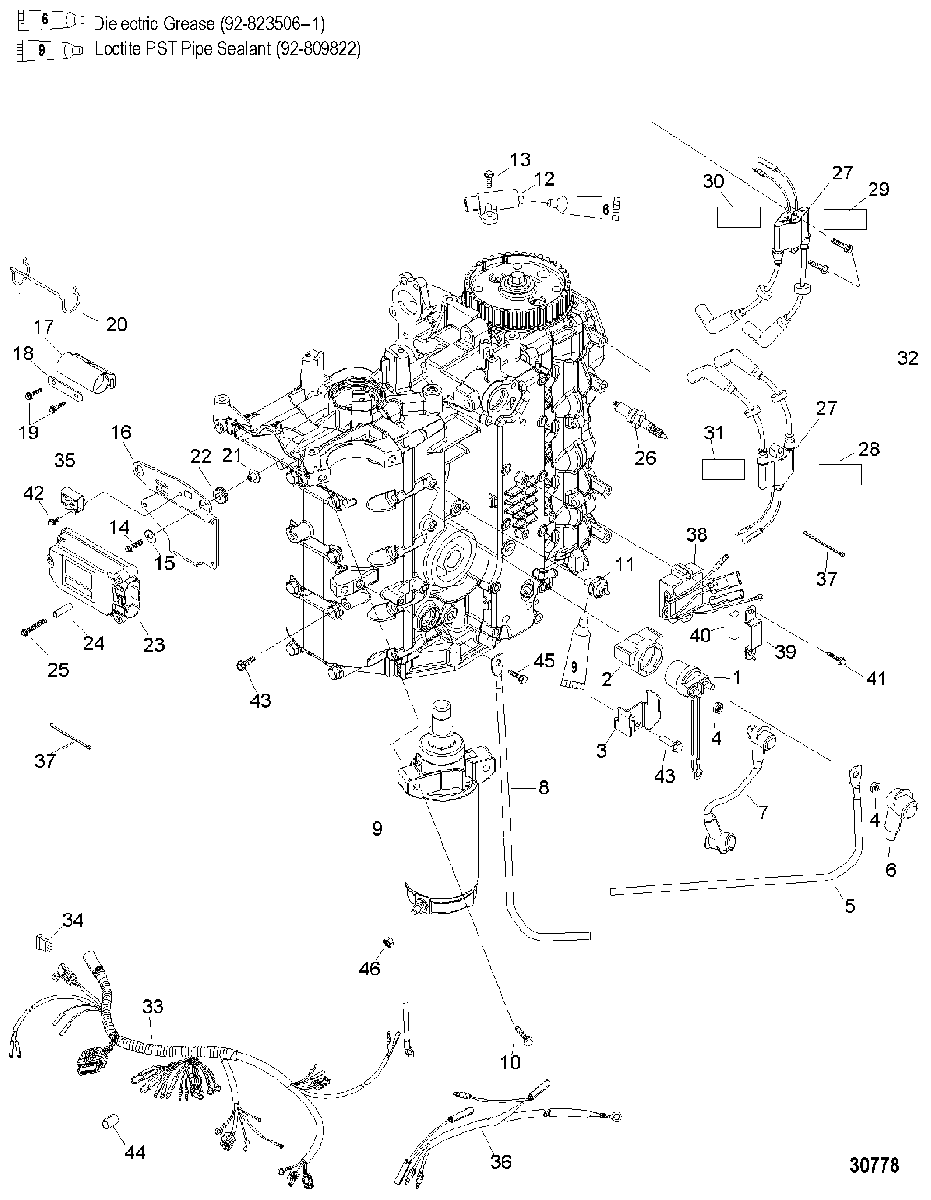

ELECTRICAL COMPONENTS для Mariner - 60 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999
-
№АртикулНазвание
-
189-8M0098898 RELAYRELAY
-
28M0010250 BRACKETBRACKET
-
3825074 SOLENOID PLATESOLENOID PLATE
-
411-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
584-88439A9 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
685-880786 BOOT, Insulator - RedBOOT, Insulator - Red
-
784-93388A16 CABLE ASSEMBLY, (8.50 Inches)CABLE ASSEMBLY, (8.50 Inches)
-
884-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
950-893888T STARTER MOTOR ASSEMBLY (SEE BREAKDOWN ON STARTER MOTOR)STARTER MOTOR ASSEMBLY (SEE BREAKDOWN ON STARTER MOTOR)
-
1010-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
1187-8M0098207 PRESSURE SWITCHPRESSURE SWITCH
-
128M0082988 SENSORSENSOR
-
1310-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-4002316 WASHERWASHER
-
16859224 PLATEPLATE
-
17856836001 RETAINERRETAINER
-
18856040 BRACKETBRACKET
-
1910-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2092753 RETAINERRETAINER
-
2123-856954 BUSHINGBUSHING
-
2225-834985 GROMMETGROMMET
-
2387843303S ECM, Engine Control ModuleECM, Engine Control Module
-
2423-8539201 BUSHINGBUSHING
-
2510-82129140 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
2633-827858Q SPARK PLUG, NGK-DPR6EA-9SPARK PLUG, NGK-DPR6EA-9
-
27339-859738T1 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
28NSS NOT SOLD SEPARATE, Decal
(COIL ID #1)NOT SOLD SEPARATE, Decal
(COIL ID #1) -
29NSS NOT SOLD SEPARATE, Decal
(COIL ID #2)NOT SOLD SEPARATE, Decal
(COIL ID #2) -
30NSS NOT SOLD SEPARATE, Decal
(COIL ID #3)NOT SOLD SEPARATE, Decal
(COIL ID #3) -
31NSS NOT SOLD SEPARATE, Decal
(COIL ID #4)NOT SOLD SEPARATE, Decal
(COIL ID #4) -
3210-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3384-857111T2 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
3488-812619 FUSE, Yellow - 20 Ampere (SFE)FUSE, Yellow - 20 Ampere (SFE)
-
35828054 COVER, FuseCOVER, Fuse
-
3684-852375A6 HARNESS ASSEMBLY, Extension
(HANDLE)HARNESS ASSEMBLY, Extension
(HANDLE) -
3754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
38883071T1 REGULATOR, VoltageREGULATOR, Voltage
-
39893771 BRACKETBRACKET
-
408308971 FOAM PADFOAM PAD
-
4110-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
4210-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
4310-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4413541 PLUG, MalePLUG, Male
-
4510-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
4611-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
-61-893678T03 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
