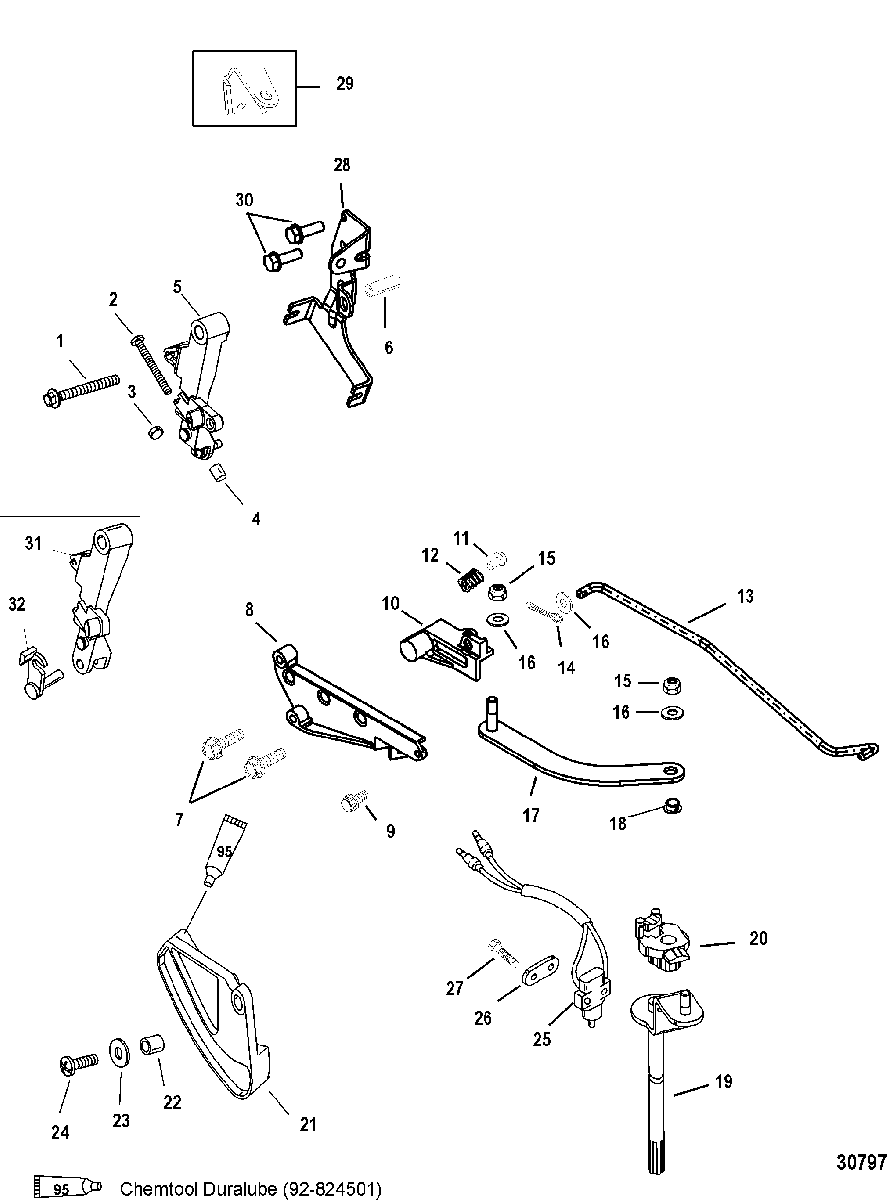

LINKAGE(HANDLE) для Mariner - 60 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
623-825078 BUSHINGBUSHING
-
710-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
8858245 SHIFT GUIDESHIFT GUIDE
-
910-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
10858246 SHIFT SLIDESHIFT SLIDE
-
118M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
12NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
13858247 SHIFT RODSHIFT ROD
-
1418-210711 COTTER PINCOTTER PIN
-
1511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
17858248 SHIFT LINKSHIFT LINK
-
1823-48475 BUSHINGBUSHING
-
19850166T2 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
2023-850165 BUSHINGBUSHING
-
218535853 CAM, ThrottleCAM, Throttle
-
2223-309772 SPACERSPACER
-
2312-4002314 WASHERWASHER
-
2410-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2587-8M0052927 SWITCHSWITCH
-
26824923 PLATEPLATE
-
2710-88075020 SCREW, (M3.5 x 20) Stainless SteelSCREW, (M3.5 x 20) Stainless Steel
-
28830294T1 BRACKET
(HANDLE)BRACKET
(HANDLE) -
29877844 DASHPOT
(NON-HANDLE)DASHPOT
(NON-HANDLE) -
3010-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
31822682A4 LEVER, ThrottleLEVER, Throttle
-
32826587 RETAINERRETAINER
