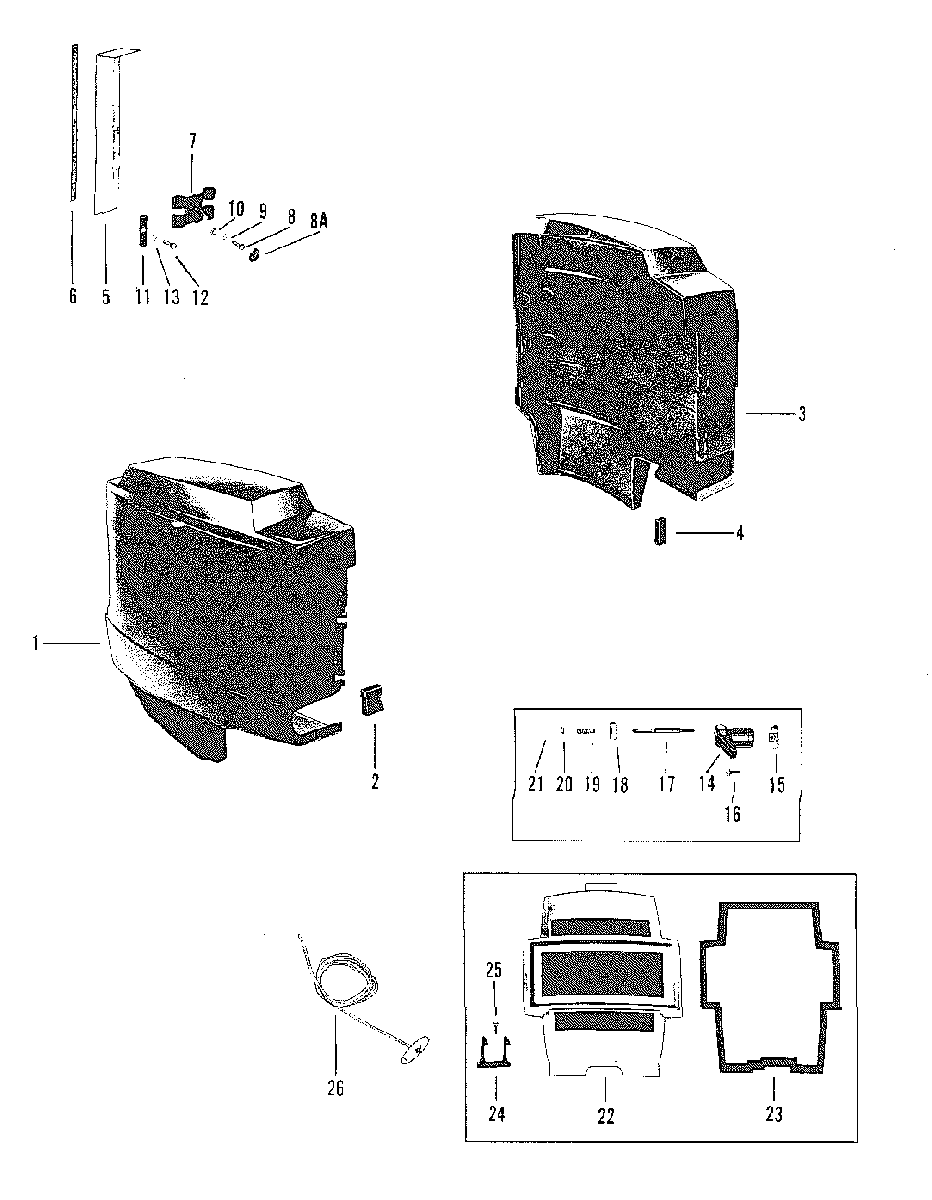

COWLING AND FRONT COVER для Mariner - 70 5702220 THRU 6428680
-
№АртикулНазвание
-
12142-6228A3 COWL ASSEMBLY, STARBOARD - WITHOUT DECALSCOWL ASSEMBLY, STARBOARD - WITHOUT DECALS
-
226-60297 SEAL, FUEL CONNECTOR - COWLSEAL, FUEL CONNECTOR - COWL
-
32141-6227A17 COWL ASSEMBLY, PORT - WITHOUT DECALSCOWL ASSEMBLY, PORT - WITHOUT DECALS
-
426-60298 SEAL, CONTROL CABLES - COWLSEAL, CONTROL CABLES - COWL
-
589717T BRACKET, COWL SEALING - REARBRACKET, COWL SEALING - REAR
-
6698761 SEAL, REAR BRACKETSEAL, REAR BRACKET
-
790980 BRACKET, COWL HINGEBRACKET, COWL HINGE
-
810-455611 SCREW, HING BRACKET - LOWER (1-1/8")SCREW, HING BRACKET - LOWER (1-1/8")
-
810-75794 SCREW, HINGE BRACKET - UPPER (1-1/8")SCREW, HINGE BRACKET - UPPER (1-1/8")
-
8A75805 CAP, HINGE BRACKET SCREW (UPPER)CAP, HINGE BRACKET SCREW (UPPER)
-
913-26992 LOCKWASHER, HINGE BRACKET SCREWLOCKWASHER, HINGE BRACKET SCREW
-
1012-37998 WASHER, HINGE BRACKET SCREWWASHER, HINGE BRACKET SCREW
-
1012-75806 WASHER, HINGE BRACKET SCREW (UPPER)WASHER, HINGE BRACKET SCREW (UPPER)
-
1190979 PIN, COWL HINGEPIN, COWL HINGE
-
1210-28782 SCREW, PIN TO COWL (7/8")SCREW, PIN TO COWL (7/8")
-
1313-26993 LOCKWASHER, PIN ATTACHING SCREWLOCKWASHER, PIN ATTACHING SCREW
-
1446785A5 COWL LATCH ASSEMBLYCOWL LATCH ASSEMBLY
-
1562628 BARREL, COWL LATCHBARREL, COWL LATCH
-
1610-31312 SCREW, LATCH ASSEMBLY TO BARREL (7/8")SCREW, LATCH ASSEMBLY TO BARREL (7/8")
-
1715222 BAR, ADJUSTMENT - COWL LATCHBAR, ADJUSTMENT - COWL LATCH
-
1862629 BARREL, COWL LATCHBARREL, COWL LATCH
-
1924-62624 SPRING, TENSION - COWL LATCHSPRING, TENSION - COWL LATCH
-
2012-30164 WASHER, ADJUSTMNET BAR TO BARRELWASHER, ADJUSTMNET BAR TO BARREL
-
2111-859124 NUT, ADJUSTMENT BAR TO BARRELNUT, ADJUSTMENT BAR TO BARREL
-
222143-7254A12 FRONT COVER ASSEMBLY, WITHOUT DECALSFRONT COVER ASSEMBLY, WITHOUT DECALS
-
23795511 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
2461158T HOOK, FRONT COVERHOOK, FRONT COVER
-
2510-69570 SCREW, HOOK TO FRONT COVER (3/4")SCREW, HOOK TO FRONT COVER (3/4")
-
2647341A11 STARTER ROPE (FOR MANUAL STARTING ONLY)STARTER ROPE (FOR MANUAL STARTING ONLY)
