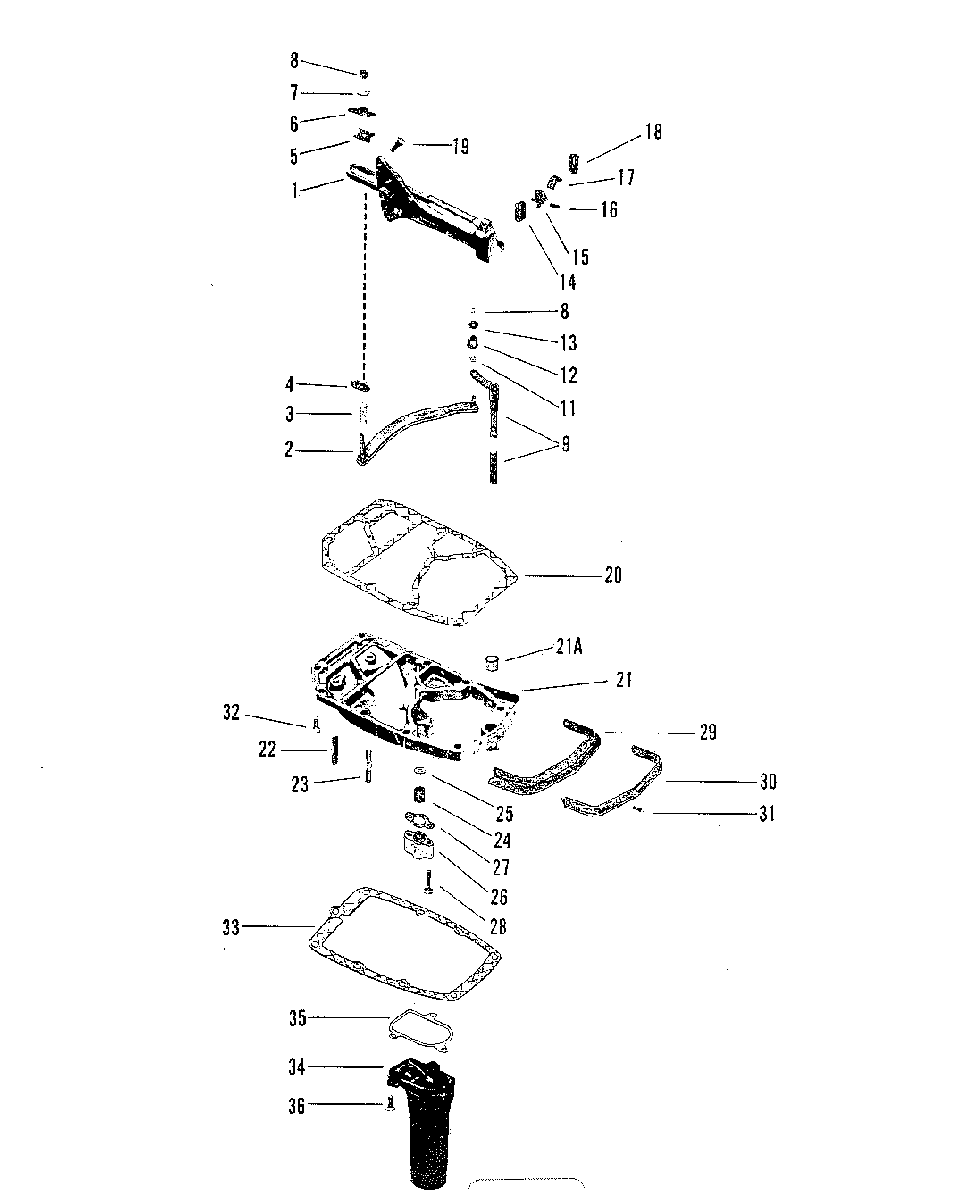

SHIFT LINKAGE AND EXHAUST PLATE для Mariner - 70 5702220 THRU 6428680
-
№АртикулНазвание
-
1814283A2 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
260283A1 LINK ASSEMBLY, SHIFT SHAFTLINK ASSEMBLY, SHIFT SHAFT
-
324-20099 SPRING, LINK TO ANCHOR BRACKETSPRING, LINK TO ANCHOR BRACKET
-
437896 GUIDE BLOCK, LINKGUIDE BLOCK, LINK
-
552100 WEAR PLATE, NYLON - LINKWEAR PLATE, NYLON - LINK
-
68M0036768 LATCH, LINK TO ANCHOR BRACKETLATCH, LINK TO ANCHOR BRACKET
-
712-69056 WASHER, LINK LATCHWASHER, LINK LATCH
-
811-36069 NUT, LINK ATTACHINGNUT, LINK ATTACHING
-
975355A32 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1113-29720 WASHER, WAVE - SHIFT SHAFT TO LINKWASHER, WAVE - SHIFT SHAFT TO LINK
-
1223-26600 BUSHING, NYLON - SHIFT SHAFT TO LINKBUSHING, NYLON - SHIFT SHAFT TO LINK
-
1312-35462 WASHER, LINK (SHIFT SHAFT END)WASHER, LINK (SHIFT SHAFT END)
-
1439519 CUP, RETAINER - ANCHOR BRACKETCUP, RETAINER - ANCHOR BRACKET
-
1587609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
1617-47175 PIN, LOCKING LEVER AND COVERPIN, LOCKING LEVER AND COVER
-
1787609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
1890211 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
1910-69101 SCREW, ANCHOR BRACKET (7/8")SCREW, ANCHOR BRACKET (7/8")
-
2027-884511 GASKET, POWERHEADGASKET, POWERHEAD
-
2142869A2 EXHAUST PLATE ASSEMBLY
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOWEXHAUST PLATE ASSEMBLY
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOW -
2142869A2 EXHAUST PLATE ASSEMBLY
UNITED STATES 5853642 AND UPEXHAUST PLATE ASSEMBLY
UNITED STATES 5853642 AND UP -
21A23-27132 BUSHING, NYLON - EXHAUST PLATEBUSHING, NYLON - EXHAUST PLATE
-
2216-8M0034449 STUD, EXHAUST PLATE (1-11/16")STUD, EXHAUST PLATE (1-11/16")
-
2316-68166 STUD, EXHAUST PLAT E (2-1/8")STUD, EXHAUST PLAT E (2-1/8")
-
2426-38452 SEAL, WATER INLET TUBESEAL, WATER INLET TUBE
-
2512-38453 WASHER, NYLON - WATER SEALWASHER, NYLON - WATER SEAL
-
2679799 HOUSING, WATER SEALHOUSING, WATER SEAL
-
2727-797971 GASKET, HOUSINGGASKET, HOUSING
-
2810-79798 SCREW, HOUSING TO EXHAUST PLATESCREW, HOUSING TO EXHAUST PLATE
-
2960307 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
3060306 STRIP, RETAINING - EXHAUST PLATE SEALSTRIP, RETAINING - EXHAUST PLATE SEAL
-
3110-62568 SCREW, RETAINING STRIP (3/8")SCREW, RETAINING STRIP (3/8")
-
3210-68918 SCREW, EXHAUST PLATE (1")SCREW, EXHAUST PLATE (1")
-
3210-28668 SCREW, EXHAUST PLATE (7/8")SCREW, EXHAUST PLATE (7/8")
-
3327-385011 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
3442718 EXHAUST TUBE, ADAPTOREXHAUST TUBE, ADAPTOR
-
3527-602801 GASKET, EXHAUST TUBEGASKET, EXHAUST TUBE
-
3610-28636 SCREW, EXHAUST TUBE (3/4")SCREW, EXHAUST TUBE (3/4")
