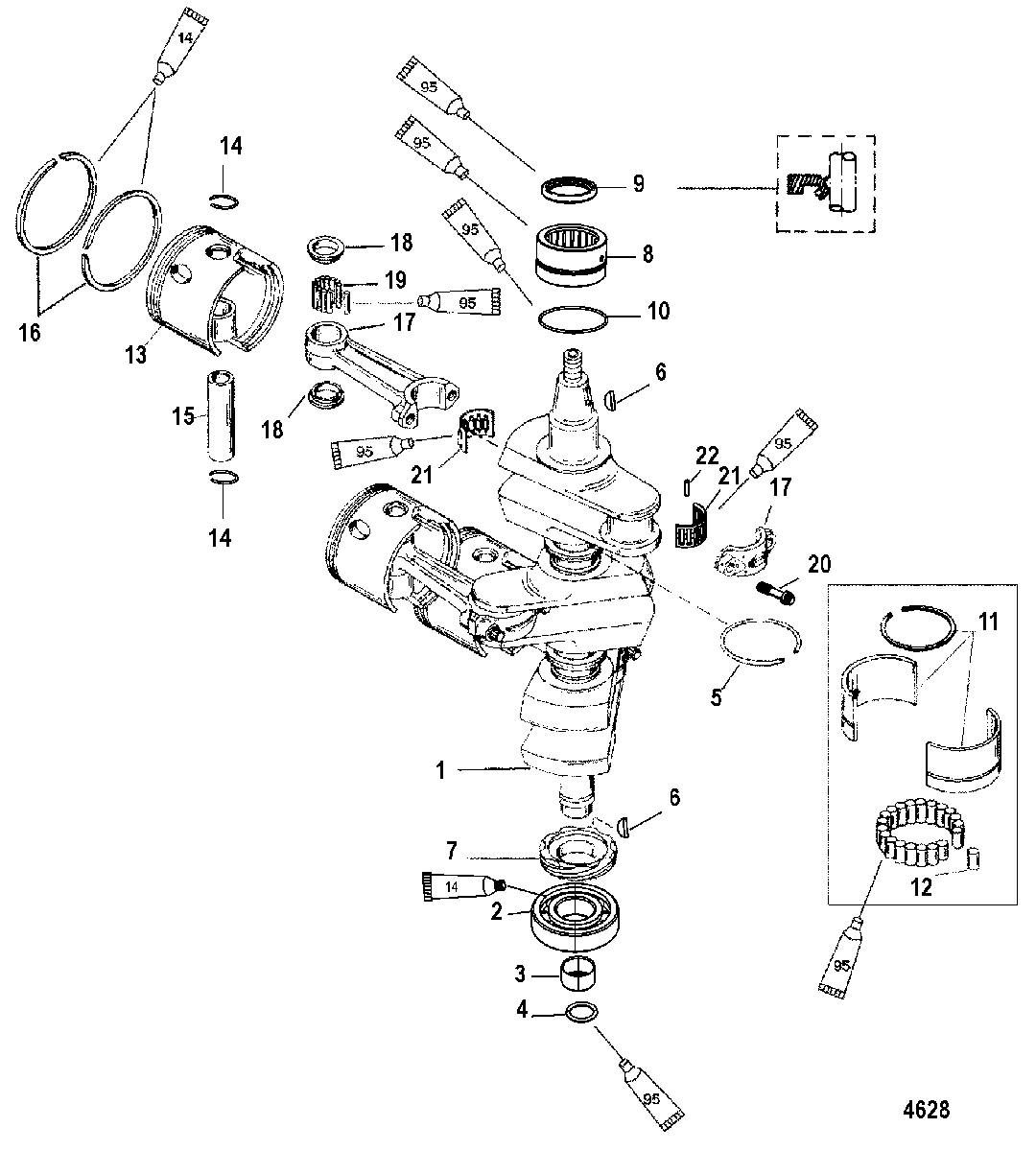

Crankshaft, Pistons and Connecting Rods для Mariner - 75 (3 CYL.) 1B000001 & Up

№

Артикул

Название
1

493-827616T1 CRANKSHAFT

CRANKSHAFT

275 610 ₽
2

30-43011T BEARING, Ball, Lower

BEARING, Ball, Lower

5 400 ₽
3

786611 WEAR SLEEVE

WEAR SLEEVE

400 ₽
4

25-35126 O-RING, (.859 x .139)

O-RING, (.859 x .139)

200 ₽
5

39-818412A4 RING ASSEMBLY

RING ASSEMBLY

3 390 ₽
6

28-91800 KEY, Woodruff

KEY, Woodruff

340 ₽
7

43-43019A1 GEAR ASSEMBLY

GEAR ASSEMBLY

5 630 ₽
8

31-43013T3 BEARING ASSEMBLY, Roller, Upper

BEARING ASSEMBLY, Roller, Upper

8 680 ₽
9

26-43993 SEAL, Oil

SEAL, Oil

920 ₽
10

25-858225 O-RING
(2.112 X .103)(Square)

O-RING
(2.112 X .103)(Square)

150 ₽
10

25-823683 O-RING, (1.989 x .070)
(1.989 X .070)(Round)

O-RING, (1.989 x .070)
(1.989 X .070)(Round)

220 ₽
11

42943A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 140 ₽
12

NSS NOT SOLD SEPARATE, Roller Bearing

NOT SOLD SEPARATE, Roller Bearing

0 ₽
13

2704-826191T4 PISTON ASSEMBLY
(Standard)

PISTON ASSEMBLY
(Standard)

12 590 ₽
13

2704-821896A3 PISTON ASSEMBLY
(.015 Oversize)

PISTON ASSEMBLY
(.015 Oversize)

18 280 ₽
13

2704-821896A4 PISTON ASSEMBLY
(.030 Oversize)

PISTON ASSEMBLY
(.030 Oversize)

18 680 ₽
14

53-857196 LOCK RING

LOCK RING

100 ₽
15

NSS NOT SOLD SEPARATE, Piston Ring

NOT SOLD SEPARATE, Piston Ring

0 ₽
16

39-822321A12 RING KIT, Piston - Standard
(Standard)

RING KIT, Piston - Standard
(Standard)

20 280 ₽
16

39-822321A1 RING KIT, Piston - .015 Oversize
(.015 Oversize)

RING KIT, Piston - .015 Oversize
(.015 Oversize)

33 290 ₽
16

39-822321A2 RING SET, Piston
(.030 O.S.)

RING SET, Piston
(.030 O.S.)

31 700 ₽
17

646-818846T6 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

32 400 ₽
18

12-8M0012298 WASHER

WASHER

450 ₽
19

29-818391001 BEARING, Needle

BEARING, Needle

50 ₽
20

10-94320 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)

650 ₽
21

31-844338A01 BEARING/CAGE KIT

BEARING/CAGE KIT

9 160 ₽
22

NSS NOT SOLD SEPARATE, Roller Bearing

NOT SOLD SEPARATE, Roller Bearing

0 ₽
-

27-43004A99 GASKET SET, Powerhead

GASKET SET, Powerhead

11 220 ₽
-

898208A02 POWERHEAD ASSEMBLY
(Non Oil Injection)

POWERHEAD ASSEMBLY
(Non Oil Injection)

479 760 ₽
-

898208A02 POWERHEAD ASSEMBLY
(Non Oil Injection) SN# 1B227000 & Up

POWERHEAD ASSEMBLY
(Non Oil Injection) SN# 1B227000 & Up

479 760 ₽
-

898208A02 POWERHEAD ASSEMBLY
(Non Oil Injection) SN# 0P401000 & Up

POWERHEAD ASSEMBLY
(Non Oil Injection) SN# 0P401000 & Up

479 760 ₽
-

809837T97 POWERHEAD ASSEMBLY
(Oil Injection)

POWERHEAD ASSEMBLY
(Oil Injection)

460 910 ₽
